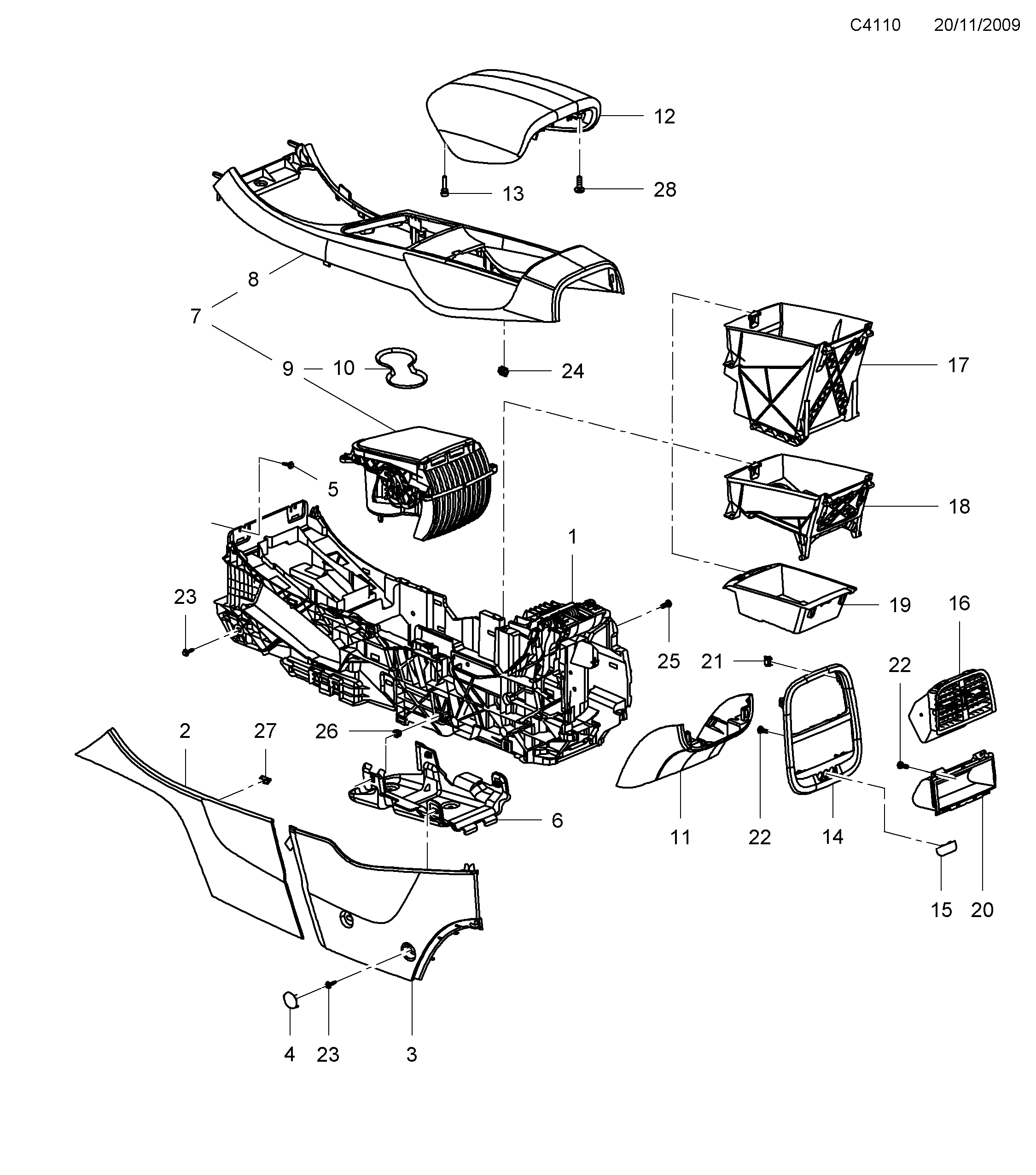

500: Car body, internal - Dashboard - Centre console

(2010 - 2012) | For 9-5 (650) (2012)

100%

(N°400)

Section 500

(N°600)

Pos.	Part No.	Description	Usage	Qty
1	13 305 232 Centre console Floor console Jet Black...	Centre console	Floor console Jet Black...	1
1	13 305 233 Centre console Floor console Jet Black...	Centre console	Floor console Jet Black...	1
2	13 305 156 Cover LHD • LH \| Centre console...	Cover	LHD LH \| Centre console...	1
2	13 305 157 Cover LHD • LH \| Centre console...	Cover	LHD LH \| Centre console...	1
2	13 305 158 Cover LHD • LH \| Centre console...	Cover	LHD LH \| Centre console...	1
2	13 305 162 Cover RHD • LH \| Centre console...	Cover	RHD LH \| Centre console...	1
2	13 305 163 Cover RHD • LH \| Centre console...	Cover	RHD LH \| Centre console...	1
2	13 305 164 Cover RHD • LH \| Centre console...	Cover	RHD LH \| Centre console...	1
2	13 305 159 Cover LHD • RH \| Centre console...	Cover	LHD RH \| Centre console...	1
2	13 305 160 Cover LHD • RH \| Centre console...	Cover	LHD RH \| Centre console...	1
2	13 305 161 Cover LHD • RH \| Centre console...	Cover	LHD RH \| Centre console...	1
2	13 305 165 Cover RHD • RH \| Centre console...	Cover	RHD RH \| Centre console...	1
2	13 305 166 Cover RHD • RH \| Centre console...	Cover	RHD RH \| Centre console...	1
2	13 305 167 Cover RHD • RH \| Centre console...	Cover	RHD RH \| Centre console...	1
3	13 305 168 Cover LH \| Centre console...	Cover	LH \| Centre console...	1
3	13 305 169 Cover LH \| Centre console...	Cover	LH \| Centre console...	1
3	13 305 170 Cover LH \| Centre console...	Cover	LH \| Centre console...	1
3	13 305 171 Cover RH \| Centre console...	Cover	RH \| Centre console...	1
3	13 305 172 Cover RH \| Centre console...	Cover	RH \| Centre console...	1
3	13 305 173 Cover RH \| Centre console...	Cover	RH \| Centre console...	1
4	13 305 307 Cover Screw Jet Black	Cover	Screw Jet Black	2
4	13 305 308 Cover Screw Light neutral	Cover	Screw Light neutral	2
4	13 305 309 Cover Screw Dark pewter	Cover	Screw Dark pewter	2
5	11 589 015 Plate screw	Plate screw		2
6	12 776 438 Bracket Floor Centre console	Bracket	Floor Centre console	1
7	13 305 092 Bracket RHD • Upper With Cup holder...	Bracket	RHD Upper With Cup holder...	1
7	13 309 508 Bracket RHD • Upper With Cup holder...	Bracket	RHD Upper With Cup holder...	1
7	13 305 093 Bracket RHD • Upper With Cup holder...	Bracket	RHD Upper With Cup holder...	1
7	13 305 096 Bracket RHD • Upper With Cup holder...	Bracket	RHD Upper With Cup holder...	1
7	13 309 509 Bracket RHD • Upper With Cup holder...	Bracket	RHD Upper With Cup holder...	1
7	12 823 163 Bracket RHD • Upper With Cup holder...	Bracket	RHD Upper With Cup holder...	1
7	13 305 097 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
7	13 305 100 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
7	13 309 511 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
7	13 305 098 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
7	13 305 099 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
7	13 305 101 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
7	13 309 512 Bracket LHD • Upper With Cup holder...	Bracket	LHD Upper With Cup holder...	1
8	13 305 112 Bracket RHD • Upper Dolomite Pearl /...	Bracket	RHD Upper Dolomite Pearl /...	1
8	13 305 113 Bracket RHD • Upper Brushed Titanium Cool...	Bracket	RHD Upper Brushed Titanium Cool...	1
8	13 305 116 Bracket RHD • Upper Brushed Titanium Dark...	Bracket	RHD Upper Brushed Titanium Dark...	1
8	13 309 393 Bracket RHD • Upper Amorello Dark /...	Bracket	RHD Upper Amorello Dark /...	1
8	13 309 394 Bracket RHD • Upper Brushed Titanium Cool...	Bracket	RHD Upper Brushed Titanium Cool...	1
8	12 823 664 Bracket RHD • Upper Brushed Titanium Cool...	Bracket	RHD Upper Brushed Titanium Cool...	1
8	13 305 117 Bracket LHD • Upper Dolomite Pearl /...	Bracket	LHD Upper Dolomite Pearl /...	1
8	13 305 118 Bracket LHD • Upper Brushed Titanium Cool...	Bracket	LHD Upper Brushed Titanium Cool...	1
8	13 305 119 Bracket LHD • Upper Brushed Titanium Warm...	Bracket	LHD Upper Brushed Titanium Warm...	1
8	13 305 120 Bracket LHD • Upper Amorello Dark /...	Bracket	LHD Upper Amorello Dark /...	1
8	13 305 121 Bracket LHD • Upper Brushed Titanium Dark...	Bracket	LHD Upper Brushed Titanium Dark...	1
8	13 309 390 Bracket LHD • Upper Amorello Dark /...	Bracket	LHD Upper Amorello Dark /...	1
8	13 309 391 Bracket LHD • Upper Brushed Titanium Cool...	Bracket	LHD Upper Brushed Titanium Cool...	1
9	13 305 102 Cup holder RHD • Dolomite Pearl	Cup holder	RHD Dolomite Pearl	1
9	13 305 103 Cup holder RHD • Brushed Titanium Cool	Cup holder	RHD Brushed Titanium Cool	1
9	13 305 105 Cup holder RHD • Amorello Dark	Cup holder	RHD Amorello Dark	1
9	13 305 106 Cup holder RHD • Brushed Titanium Dark	Cup holder	RHD Brushed Titanium Dark	1
9	13 305 107 Cup holder LHD • Dolomite Pearl	Cup holder	LHD Dolomite Pearl	1
9	13 305 108 Cup holder LHD • Brushed Titanium Cool	Cup holder	LHD Brushed Titanium Cool	1
9	13 305 109 Cup holder LHD • Brushed Titanium Warm	Cup holder	LHD Brushed Titanium Warm	1
9	13 305 110 Cup holder LHD • Amorello Dark	Cup holder	LHD Amorello Dark	1
9	13 305 111 Cup holder LHD • Brushed Titanium Dark	Cup holder	LHD Brushed Titanium Dark	1
10	13 309 506 Insert Rubber mat Cup holder...	Insert	Rubber mat Cup holder...	1
11	13 304 672 Bracket Centre console Rear Jet...	Bracket	Centre console Rear Jet...	1
11	13 304 673 Bracket Centre console Rear Light...	Bracket	Centre console Rear Light...	1
11	13 304 674 Bracket Centre console Rear Dark...	Bracket	Centre console Rear Dark...	1
12	13 308 738 Arm rest Siena Vinyl Siena Leather...	Arm rest	Siena Vinyl Siena Leather...	1
12	13 308 739 Arm rest Siena Vinyl Siena Leather...	Arm rest	Siena Vinyl Siena Leather...	1
12	13 308 747 Arm rest Siena Vinyl Siena Leather...	Arm rest	Siena Vinyl Siena Leather...	1
12	13 308 744 Arm rest Siena Vinyl Siena Leather...	Arm rest	Siena Vinyl Siena Leather...	1
12	13 308 745 Arm rest Siena Vinyl Siena Leather...	Arm rest	Siena Vinyl Siena Leather...	1
12	13 308 746 Arm rest Siena Vinyl Siena Leather...	Arm rest	Siena Vinyl Siena Leather...	1
12	13 305 349 Arm rest Leather / Semi-Aniline Jet...	Arm rest	Leather / Semi-Aniline Jet...	1
12	13 305 350 Arm rest Leather / Semi-Aniline Light...	Arm rest	Leather / Semi-Aniline Light...	1
12	13 305 351 Arm rest Leather / Semi-Aniline Jet...	Arm rest	Leather / Semi-Aniline Jet...	1
12	13 305 352 Arm rest Leather / Semi-Aniline Light...	Arm rest	Leather / Semi-Aniline Light...	1
12	13 308 736 Arm rest Siena Vinyl Jet Black...	Arm rest	Siena Vinyl Jet Black...	1
12	13 308 737 Arm rest Siena Vinyl Light neutral...	Arm rest	Siena Vinyl Light neutral...	1
13	12 848 855 Buffer Arm rest	Buffer	Arm rest	X
14	12 821 470 12 824 916 Cover Floor console rear Jet...	Cover	Floor console rear Jet...	1
15	13 304 677 12 824 917 Cover For cars without Rear...	Cover	For cars without Rear...	1
16	12 821 461 Air outlet Jet Black	Air outlet	Jet Black	1
17	13 305 006 Storage shelf Jet Black Front heater...	Storage shelf	Jet Black Front heater...	1
18	13 305 007 Storage shelf Jet Black Front and...	Storage shelf	Jet Black Front and...	1
19	13 305 353 Storage shelf Jet Black Front heater...	Storage shelf	Jet Black Front heater...	1
20	13 304 676 Storage shelf Without Rear seat entertainment...	Storage shelf	Without Rear seat entertainment...	1
21	12 842 037 Retainer Floor console rear	Retainer	Floor console rear	4
22	11 569 991 Screw Without Rear seat entertainment...	Screw	Without Rear seat entertainment...	4
23	11 570 498 Hexagon screw	Hexagon screw		X
24	12 842 037 Retainer Floor console Upper Cover	Retainer	Floor console Upper Cover	X
25	13 307 262 Screw	Screw		X
26	11 561 629 Press nut	Press nut		X
27	12 842 037 Retainer	Retainer		X
28	12 780 283 Screw	Screw		4
