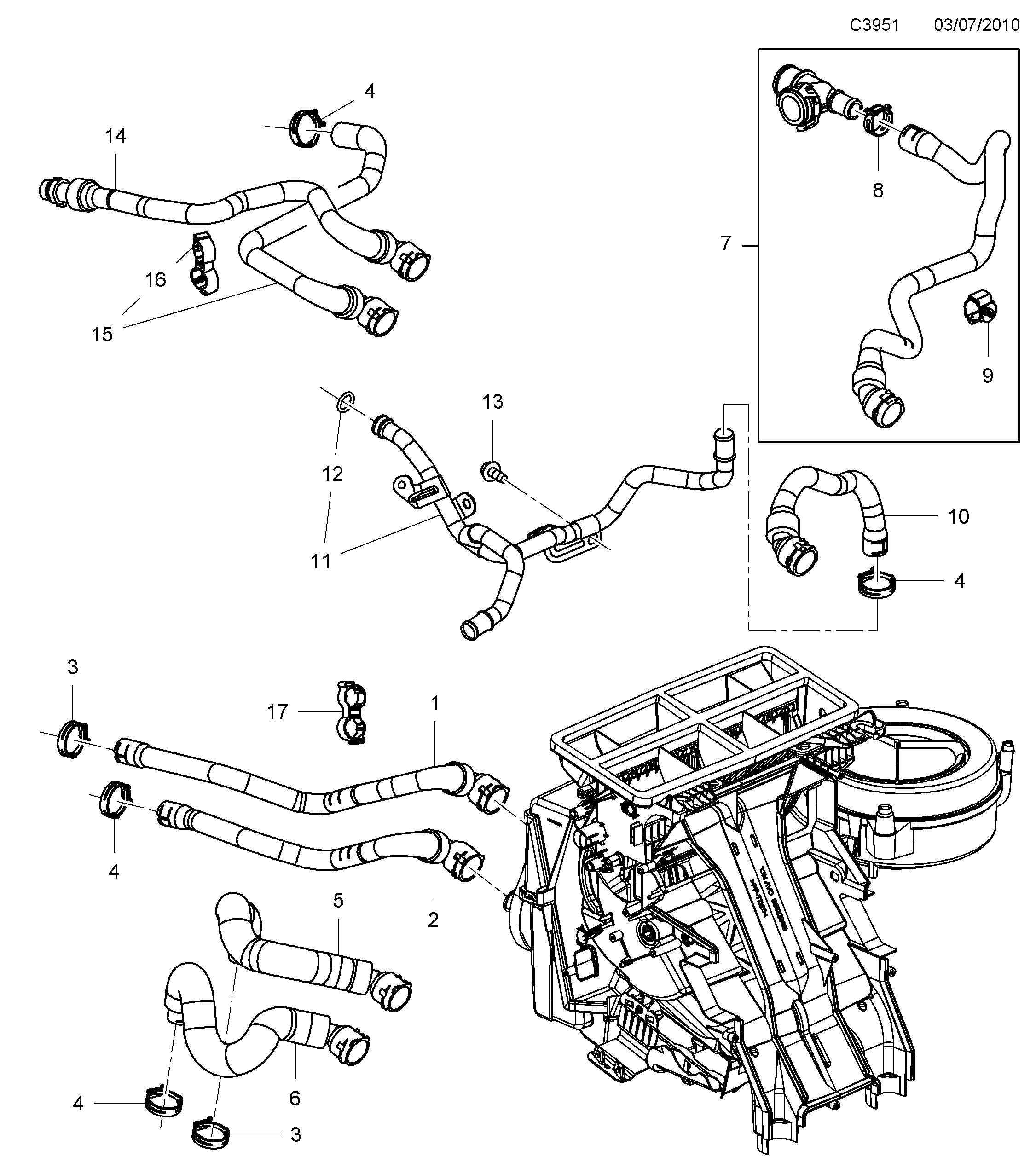

Pos.	Part No.	Description	Usage	Qty
5	13 220 136 Hose A20NHT, A20NFT • INLET	Hose	A20NHT, A20NFT INLET	1
6	13 220 141 Hose A20NHT, A20NFT • OUTLET	Hose	A20NHT, A20NFT OUTLET	1
7	13 315 207 Hose A28NER, A28NET • INLET	Hose	A28NER, A28NET INLET	1
8	90 572 592 Hose clamp Inlet hose	Hose clamp	Inlet hose	1
9	13 136 378 13 137 556 Clip A28NET • Inlet hose	Clip	A28NET Inlet hose	1
10	13 220 142 Hose A28NER, A28NET • OUTLET	Hose	A28NER, A28NET OUTLET	1
11	55 563 352 Pipe A28NER, A28NET • OUTLET	Pipe	A28NER, A28NET OUTLET	1
12	12 588 318 O-ring A28NER, A28NET	O-ring	A28NER, A28NET	1
13	11 588 737 Hexagon screw A28NER, A28NET	Hexagon screw	A28NER, A28NET	2
14	13 220 138 Hose A20DTH, A20DTR • INLET	Hose	A20DTH, A20DTR INLET	1
15	13 220 143 Hose A20DTH, A20DTR • OUTLET	Hose	A20DTH, A20DTR OUTLET	1
16	91 29 320 Clip A20DTH, A20DTR	Clip	A20DTH, A20DTR	1
17	90 507 230 Hose clamp A20DTH, A20DTR • Outlet hose	Hose clamp	A20DTH, A20DTR Outlet hose	1

Pos.	Part No.	Description	Usage	Qty
5	13 220 136 Hose A20NHT, A20NFT • INLET	Hose	A20NHT, A20NFT INLET	1
6	13 220 141 Hose A20NHT, A20NFT • OUTLET	Hose	A20NHT, A20NFT OUTLET	1
7	13 315 207 Hose A28NER, A28NET • INLET	Hose	A28NER, A28NET INLET	1
8	90 572 592 Hose clamp Inlet hose	Hose clamp	Inlet hose	1
9	13 136 378 13 137 556 Clip A28NET • Inlet hose	Clip	A28NET Inlet hose	1
10	13 220 142 Hose A28NER, A28NET • OUTLET	Hose	A28NER, A28NET OUTLET	1
11	55 563 352 Pipe A28NER, A28NET • OUTLET	Pipe	A28NER, A28NET OUTLET	1
12	12 588 318 O-ring A28NER, A28NET	O-ring	A28NER, A28NET	1
13	11 588 737 Hexagon screw A28NER, A28NET	Hexagon screw	A28NER, A28NET	2
14	13 220 138 Hose A20DTH, A20DTR • INLET	Hose	A20DTH, A20DTR INLET	1
15	13 220 143 Hose A20DTH, A20DTR • OUTLET	Hose	A20DTH, A20DTR OUTLET	1
16	91 29 320 Clip A20DTH, A20DTR	Clip	A20DTH, A20DTR	1
17	90 507 230 Hose clamp A20DTH, A20DTR • Outlet hose	Hose clamp	A20DTH, A20DTR Outlet hose	1
