Question 1

Where to find the exploded diagram for Intake and exhaust system on my Saab 900 1986?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Intake and exhaust system on Saab 900 1986. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Intake and exhaust system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Intake and exhaust system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Intake and exhaust system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Intake and exhaust system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
2	75 62 440 Intake manifold 02 • For cars with EGR....	Intake manifold	02 For cars with EGR....	1
2	75 62 424 Intake manifold 02 • For cars without EGR....	Intake manifold	02 For cars without EGR....	1
2	75 81 440 Intake manifold 02 • For cars with PIERBURG...	Intake manifold	02 For cars with PIERBURG...	1
3	81 23 168 Plug 02	Plug	02	1
4	93 59 480 Stud 02	Stud	02	4
5	93 07 257 Gasket 1986-1986 • 02	Gasket	1986-1986 02	1
6	81 25 197 Screw 02	Screw	02	6
7	81 25 205 Screw 02	Screw	02	2
8	75 61 509 Lifting eye 02	Lifting eye	02	1
9	93 12 802 Nipple 02	Nipple	02	1
10	83 08 850 Nipple 02	Nipple	02	1
12	75 15 208 Bushing 02	Bushing	02	1
13	91 36 243 Vacuum hose 02 • L=215 MM \| Sold...	Vacuum hose	02 L=215 MM \| Sold...	1
14	75 04 012 Tube 02	Tube	02	1
15	81 28 969 Nut 02	Nut	02	2
16	81 32 235 Ferrule 02	Ferrule	02	2
17	81 31 989 Nipple 02	Nipple	02	1
18	75 04 046 Protection 02	Protection	02	1
19	75 64 057 Bracket 02 • For cars with PIERBURG...	Bracket	02 For cars with PIERBURG...	1
20	81 25 007 Screw 02 • For cars with PIERBURG...	Screw	02 For cars with PIERBURG...	2
20	81 25 023 Screw 02 • ALTERNATIVE,USE WITH 7585581	Screw	02 ALTERNATIVE,USE WITH 7585581	2
21	75 64 859 Cable 02 • For cars with PIERBURG...	Cable	02 For cars with PIERBURG...	1
22	80 97 859 Screw 02 • For cars with PIERBURG...	Screw	02 For cars with PIERBURG...	1
23	75 85 581 Spacer 02	Spacer	02	2
24	18 00 259 Tensioning band 02	Tensioning band	02	1
	91 36 243 Vacuum hose 02 • L=5000 MM \| Sold...	Vacuum hose	02 L=5000 MM \| Sold...	X

Pos.	Part No.	Description	Usage	Qty
2	75 62 440 Intake manifold 02 • For cars with EGR....	Intake manifold	02 For cars with EGR....	1
2	75 62 424 Intake manifold 02 • For cars without EGR....	Intake manifold	02 For cars without EGR....	1
2	75 81 440 Intake manifold 02 • For cars with PIERBURG...	Intake manifold	02 For cars with PIERBURG...	1
3	81 23 168 Plug 02	Plug	02	1
4	93 59 480 Stud 02	Stud	02	4
5	93 07 257 Gasket 1986-1986 • 02	Gasket	1986-1986 02	1
6	81 25 197 Screw 02	Screw	02	6
7	81 25 205 Screw 02	Screw	02	2
8	75 61 509 Lifting eye 02	Lifting eye	02	1
9	93 12 802 Nipple 02	Nipple	02	1
10	83 08 850 Nipple 02	Nipple	02	1
12	75 15 208 Bushing 02	Bushing	02	1
13	91 36 243 Vacuum hose 02 • L=215 MM \| Sold...	Vacuum hose	02 L=215 MM \| Sold...	1
14	75 04 012 Tube 02	Tube	02	1
15	81 28 969 Nut 02	Nut	02	2
16	81 32 235 Ferrule 02	Ferrule	02	2
17	81 31 989 Nipple 02	Nipple	02	1
18	75 04 046 Protection 02	Protection	02	1
19	75 64 057 Bracket 02 • For cars with PIERBURG...	Bracket	02 For cars with PIERBURG...	1
20	81 25 007 Screw 02 • For cars with PIERBURG...	Screw	02 For cars with PIERBURG...	2
20	81 25 023 Screw 02 • ALTERNATIVE,USE WITH 7585581	Screw	02 ALTERNATIVE,USE WITH 7585581	2
21	75 64 859 Cable 02 • For cars with PIERBURG...	Cable	02 For cars with PIERBURG...	1
22	80 97 859 Screw 02 • For cars with PIERBURG...	Screw	02 For cars with PIERBURG...	1
23	75 85 581 Spacer 02	Spacer	02	2
24	18 00 259 Tensioning band 02	Tensioning band	02	1
	91 36 243 Vacuum hose 02 • L=5000 MM \| Sold...	Vacuum hose	02 L=5000 MM \| Sold...	X

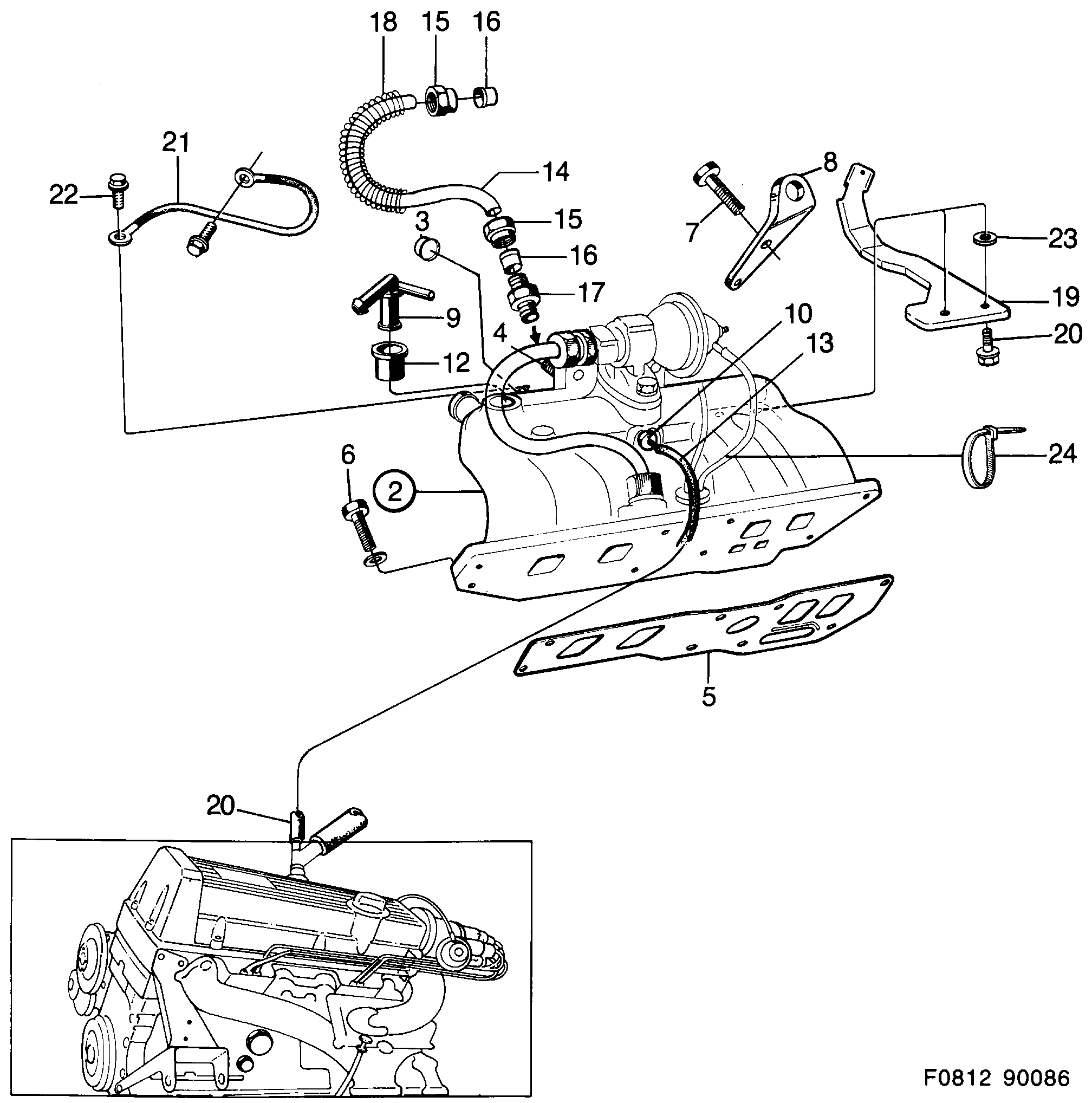

1030: Engine - Intake and exhaust system - Intake manifold
