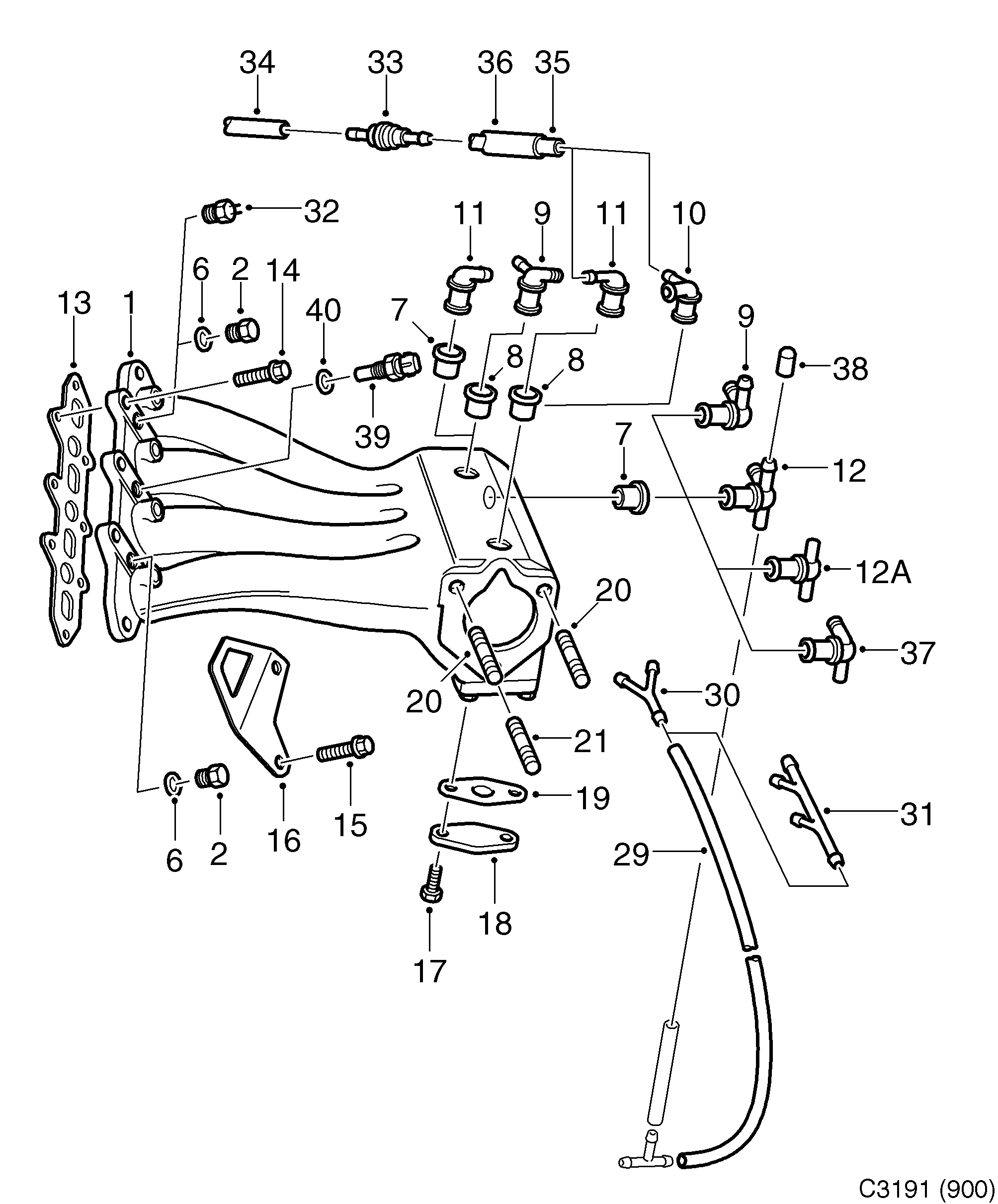

1090: Engine - Intake and exhaust system - Intake manifold
(1986 - 1989) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 62 218 Intake manifold 1986-1987 • 05 • Without catalytic converter. | 1 | |
| 1 | 75 62 226 Intake manifold 1986-1987 • 05 • With catalytic converter. | 1 | |
| 2 | 75 64 222 75 63 042 Plug 1986-1988 • 05 • With catalytic converter. | 1 | |
| 6 | 81 24 141 92 150 435 Gasket -1989 • 05 | 2 | |
| 7 | 75 15 208 Bushing 05 | 2 | |
| 8 | 75 61 228 Bushing 1986-1987 • 05 | 1 | |
| 9 | 93 12 802 Nipple 05 | 2 | |
| 10 | 75 23 038 Nipple 05 | 1 | |
| 11 | 83 59 937 Nipple 1986-1988 • 05 | 1 | |
| 12 | 75 22 477 Nipple 1986-1988 • 05 | 1 | |
| 13 | 75 15 885 75 84 436 Gasket 1986-1987 • 05 | 1 | |
| 14 | 81 25 197 Screw 05 | 6 | |
| 15 | 81 25 205 Screw 05 | 2 | |
| 16 | 75 04 392 Lifting eye 05 | 1 | |
| 17 | 80 19 903 79 85 930 Screw -1989 • 05 | 2 | |
| 18 | 93 58 177 Flange 05 | 1 | |
| 19 | 83 57 485 75 07 973 Gasket 1986-1986 • 05 | 1 | |
| 20 | 80 05 928 Stud 05 | 2 | |
| 20 | 81 25 023 Screw 05 • ALTERNATIVE,USE WITH WASHER 7585581 | 2 | |
| 21 | 80 05 936 Stud 1986-1986 • 05 | 1 | |
| 29 | 91 36 243 Vacuum hose 05 • L=670 MM | Sold... | 1 | |
| 30 | 85 09 002 Tube 05 | 1 | |
| 31 | 85 10 091 Manifold 05 | 1 | |
| 32 | 75 19 416 Thermostat 1986-1988, LHD • 05 • SHIFT-UP | 1 | |
| 33 | 75 21 313 91 89 564 Positive crankcase ventilation valve 05 | 1 | |
| 34 | 91 36 243 Vacuum hose 1986-1988 • 05 • L=40 MM | Sold... | 1 | |
| 35 | 91 36 243 Vacuum hose 05 • L=410 MM | Sold... | 1 | |
| 35 | 83 64 416 Hose TURBO | 1 | |
| 36 | 75 14 375 Hose 05 | 1 | |
| 36 | 75 14 383 Hose TURBO | 1 | |
| 37 | 74 87 556 Nipple 05 | 1 | |
| 38 | 83 35 614 Plug 1986-1988 • 05 | 1 | |
| 39 | 93 57 021 Temperature sensor 05 | 1 | |
| 40 | 89 77 373 44 43 883 Seal -1988 • 05 | 1 | |
91 36 243 Vacuum hose 05 • L=5000 MM | Sold... | X |
