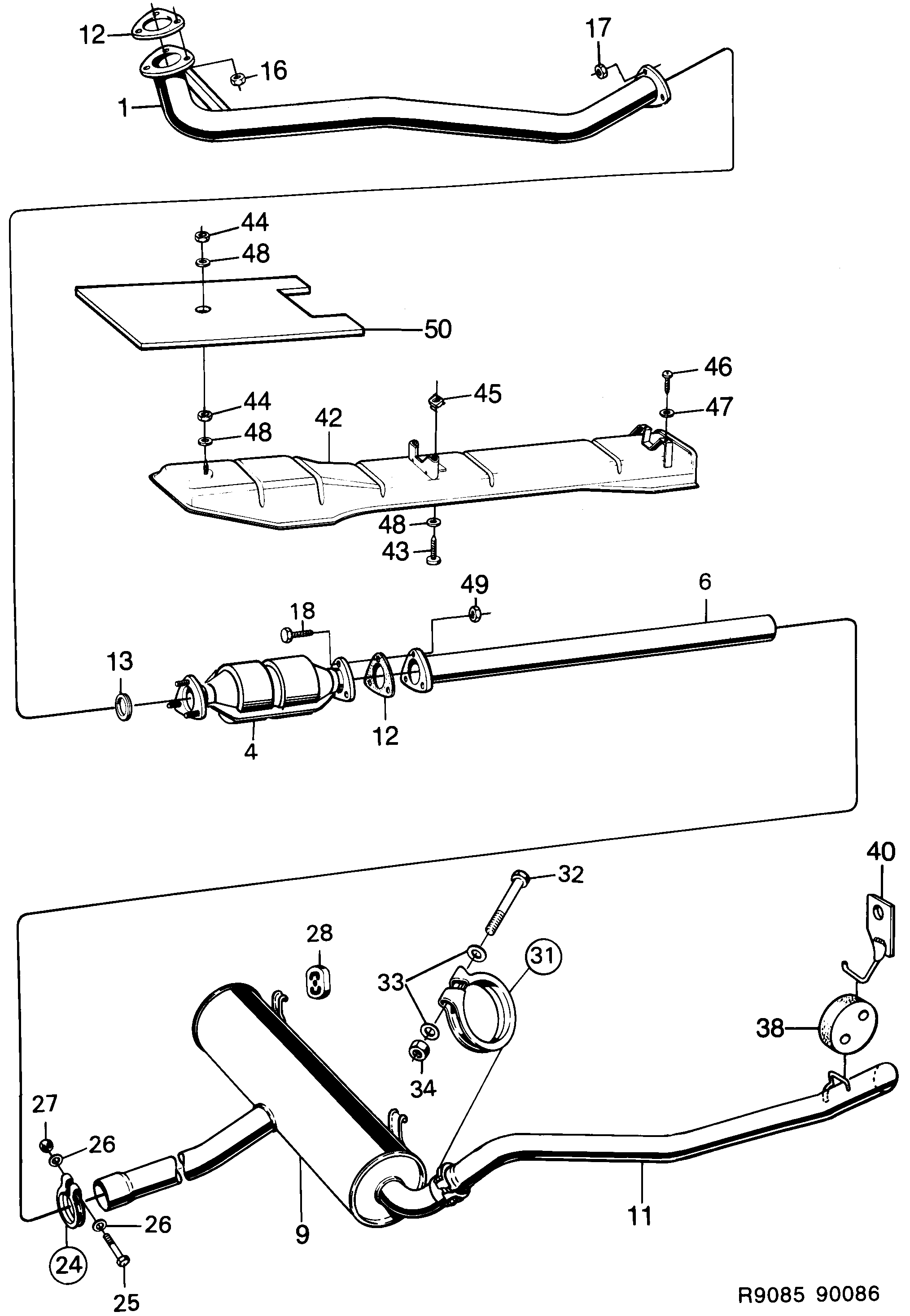

1630: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1986 - 1989) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 14 250 Exhaust pipe 03 | 1 | |
| 4 | 93 32 461 Three way catalytic converter 03 | 1 | |
| 6 | 93 33 840 54 66 792 Exhaust pipe 03 | 1 | |
| 9 | 93 26 448 54 66 750 Silencer 03 | 1 | |
| 11 | 93 65 727 54 67 063 Exhaust pipe 03 • (7536097) | 1 | |
| 12 | 83 87 052 40 24 089 Gasket 03 | 1 | |
| 13 | 83 28 726 Ring 03 | 1 | |
| 16 | 79 70 296 79 68 415 Lock nut -1988 • 03 | 3 | |
| 17 | 80 74 106 Nut 1986-1987 • 03 | 3 | |
| 18 | 79 67 789 Screw 03 | 3 | |
| 24 | 83 86 450 Clamp 03 | 1 | |
| 25 | 80 84 014 32 000 289 Screw 03 | 1 | |
| 26 | 93 19 047 Washer 03 | 1 | |
| 27 | 80 73 942 Nut 1986-1987 • 03 | 1 | |
| 28 | 93 28 105 Rubber mounting 03 | 1 | |
| 31 | 83 84 323 Clamp 03 | 1 | |
| 32 | 80 84 006 Screw 03 | 1 | |
| 33 | 93 19 047 Washer 03 | 1 | |
| 34 | 80 73 942 Nut 1986-1987 • 03 | 1 | |
| 38 | 93 65 404 Rubber mounting 03 | 1 | |
| 40 | 93 68 093 Bracket 1986-1986 • 03 | 1 | |
| 42 | 93 49 804 79 23 014 Heat shield 03 | 1 | |
| 43 | 93 68 218 Screw 03 | 1 | |
| 44 | 80 74 106 Nut 1986-1987 • 03 | 1 | |
| 45 | 79 70 429 Cage nut 03 | 1 | |
| 46 | 79 22 503 Screw 03 | 1 | |
| 47 | 79 10 540 Washer 03 | 1 | |
| 48 | 79 10 557 Washer 03 | 1 | |
| 49 | 79 74 264 30 509 159 Nut 03 | 3 | |
| 50 | Heat shieldUpholstery 03 | 1 | |
88 18 577 | X | ||
88 17 850 | X | ||
88 19 930 | X | ||
75 38 440 | X |
