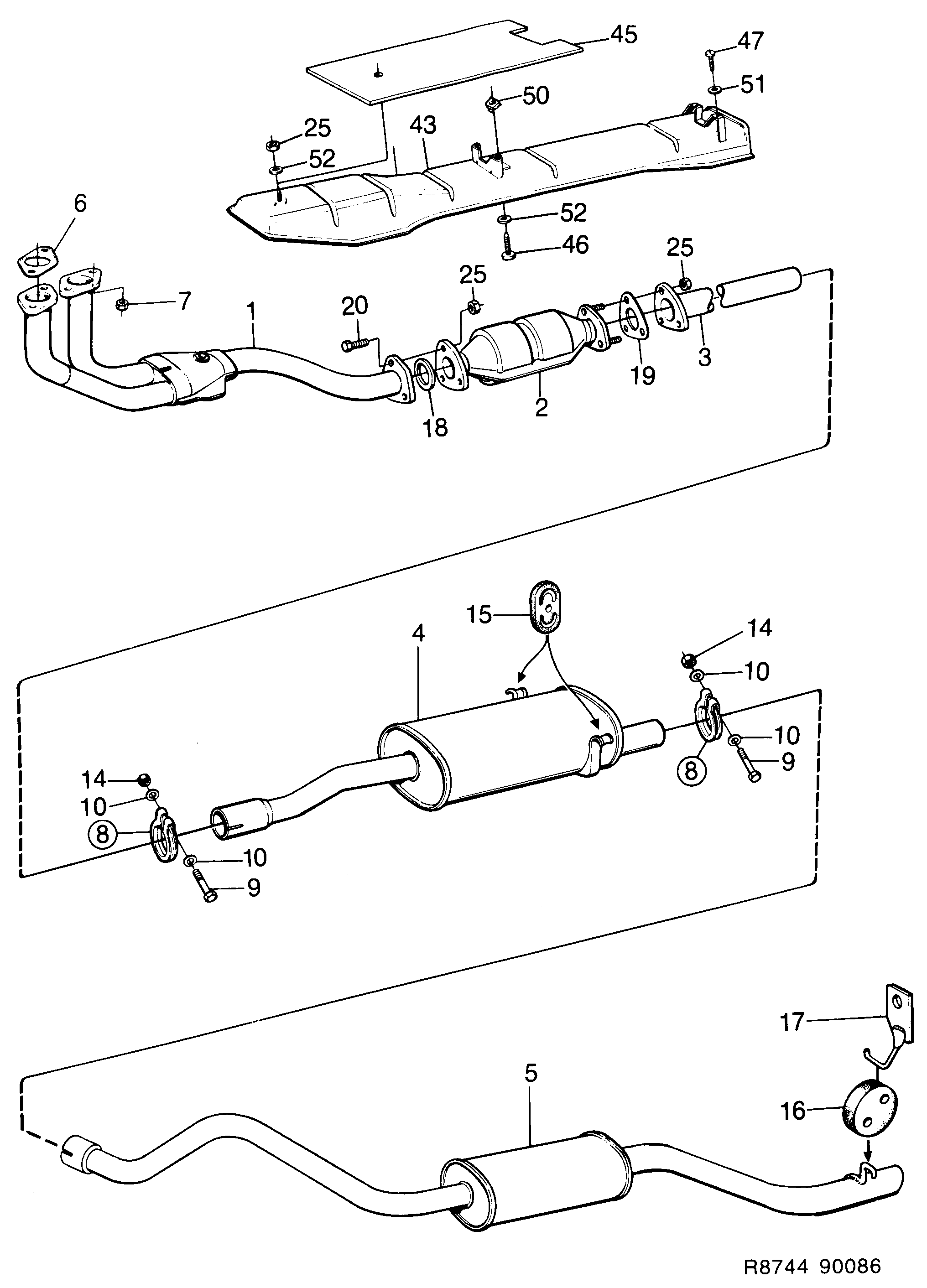

1690: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1986 - 1989) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 54 66 214 Exhaust pipe 06 • (9364407) | 1 | |
| 2 | 75 33 532 75 33 797 Three way catalytic converter 06 | 1 | |
| 2 | 44 40 046 Three way catalytic converter 06 | 1 | |
| 3 | 75 33 904 54 66 768 Exhaust pipe 06 | 1 | |
| 4 | 54 66 198 Silencer 06 • (8822272) | 1 | |
| 5 | 93 49 176 75 38 440 Silencer 06 | 1 | |
| 5 | 54 66 180 Silencer 06 • (8822181) | 1 | |
| 6 | 89 80 328 Gasket 06 • (9368572) | 2 | |
| 7 | 79 67 870 79 79 503 Nut 06 | 4 | |
| 8 | 83 86 450 Clamp 06 | 2 | |
| 9 | 80 84 014 32 000 289 Screw 06 | 1 | |
| 10 | 93 19 047 Washer 06 | 2 | |
| 14 | 80 73 942 Nut 1986-1987 • 06 | 1 | |
| 15 | 93 28 105 Rubber mounting 06 | 2 | |
| 16 | 93 65 404 Rubber mounting 06 | 1 | |
| 17 | 93 68 093 Bracket 1986-1986 • 06 | 1 | |
| 18 | 83 28 726 Ring 06 | 1 | |
| 19 | 83 87 052 40 24 089 Gasket 06 | 1 | |
| 20 | 79 67 789 Screw 06 | 3 | |
| 25 | 80 74 106 Nut 1986-1987 • 06 | 7 | |
| 43 | 93 49 804 79 23 014 Heat shield 06 | 1 | |
| 45 | Heat shieldUpholstery 06 | ||
| 46 | 93 68 218 Screw 06 | 2 | |
| 47 | 79 22 503 Screw 06 | 2 | |
| 50 | 79 70 437 Cage nut 06 | 2 | |
| 51 | 80 29 951 Washer 06 | 2 | |
| 52 | 80 29 985 92 153 033 Washer 06 | 3 | |
88 19 690 | X | ||
75 38 440 | X | ||
88 18 577 | X | ||
93 21 555 | X |
