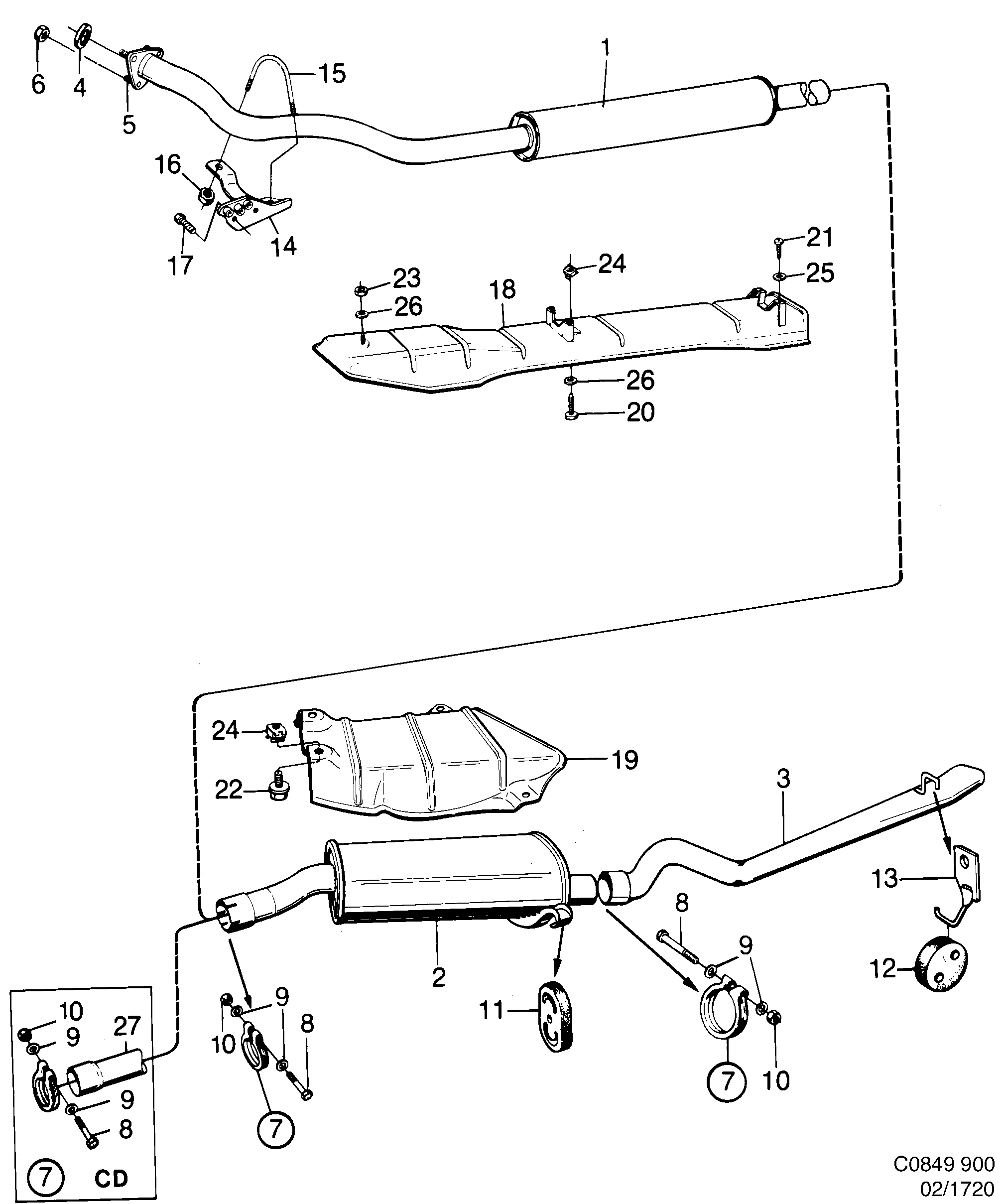

1720: Engine - Intake and exhaust system - Exhaust system
(1986 - 1989 | TURBO) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 54 66 206 Silencer 44 • (8822306) | 1 | |
| 2 | 88 22 280 93 49 192 Silencer 44 • (9349192) | 1 | |
| 3 | 75 12 254 75 38 440 Exhaust pipe 1986-1986 • 44 | 1 | |
| 3 | 75 35 925 54 66 990 Exhaust pipe 1986-1986 • 44 | 1 | |
| 4 | 93 16 407 Seal 44 | 1 | |
| 5 | 83 67 856 75 20 224 Stud 44 | 3 | |
| 6 | 79 65 767 55 557 005 Lock nut 44 | 3 | |
| 7 | 83 36 406 Clamp 44 | 2 | |
| 8 | 80 84 030 Screw 44 | 1 | |
| 9 | 93 19 047 Washer 44 | 2 | |
| 10 | 80 74 106 Nut 1986-1987 • 44 | 1 | |
| 11 | 93 28 105 Rubber mounting 44 | 2 | |
| 12 | 93 65 404 Rubber mounting 44 | 1 | |
| 13 | 93 68 093 Bracket 1986-1986 • 44 | 1 | |
| 14 | 75 26 916 Brace 44 • For service measures, use... | 1 | |
| 15 | 93 17 058 Brace 44 | 1 | |
| 16 | 79 65 767 55 557 005 Lock nut 44 | 2 | |
| 17 | 80 82 968 55 562 873 Screw 44 | 2 | |
| 18 | 93 49 804 79 23 014 Heat shield 44 | 1 | |
| 19 | 75 11 645 Shield 44 | 1 | |
| 20 | 93 68 218 Screw 44 | 2 | |
| 21 | 79 22 503 Screw 44 | 2 | |
| 22 | 75 28 953 Screw 44 | 4 | |
| 23 | 80 74 106 Nut 1986-1987 • 44 | 1 | |
| 24 | 79 70 429 Cage nut 44 | 6 | |
| 25 | 80 29 951 Washer 44 | 2 | |
| 26 | 80 29 985 92 153 033 Washer 44 | 3 | |
| 27 | 93 97 845 Extension 1986-1986 • 44 • CD | 1 | |
88 19 708 | X | ||
75 38 440 | X | ||
93 21 563 | X |
