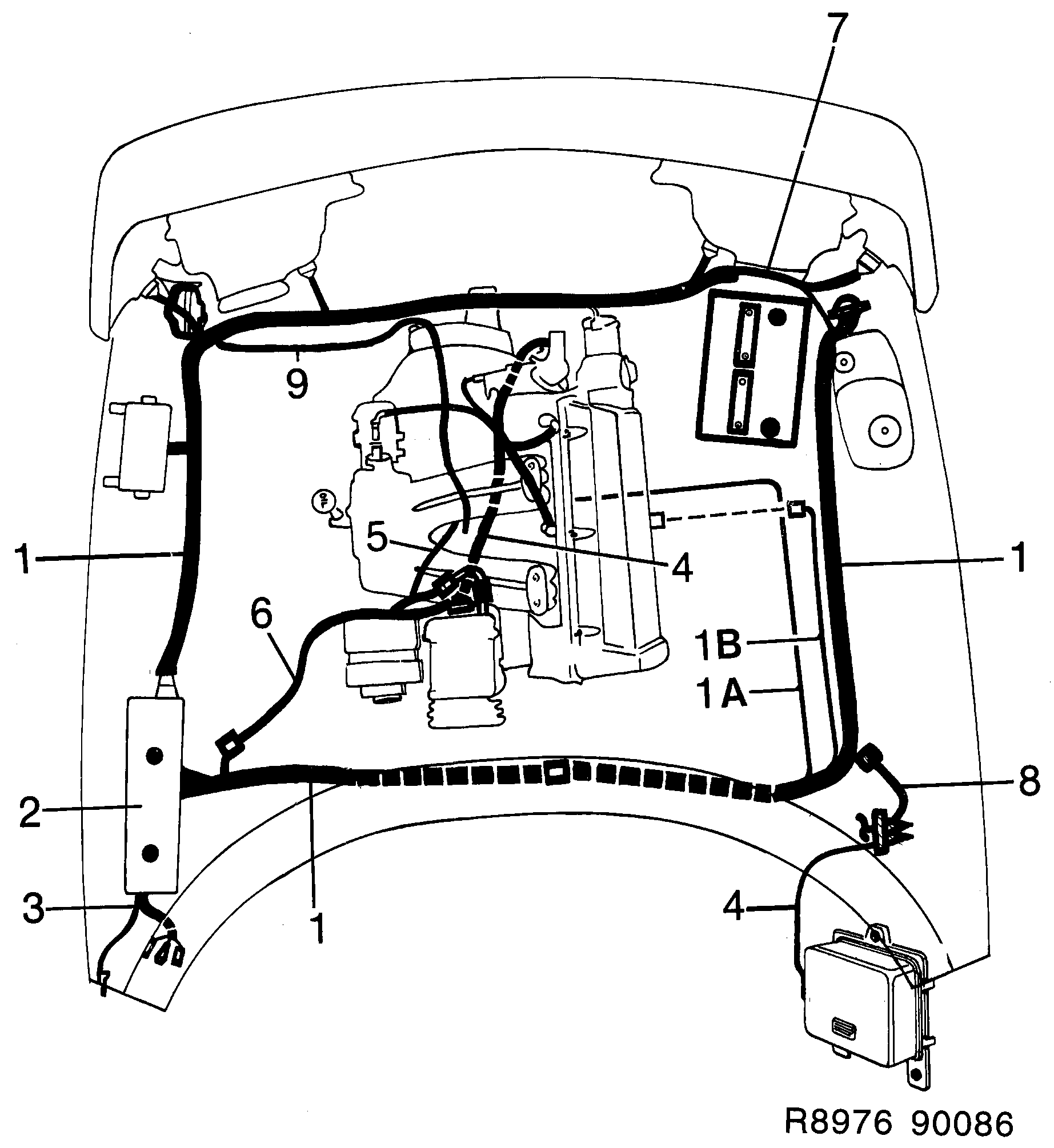

1000: Electrical, general - Wiring and fuses - Front and engine
(1986) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 95 52 209 Cable harness C • front | 1 | |
| 1 | 95 52 217 Cable harness I • front | 1 | |
| 1 | 95 52 282 Cable harness I • With catalytic converter. front | 1 | |
| 1 | 95 52 225 Cable harness TURBO • front | 1 | |
| 1 | 95 52 233 Cable harness B202TURBO • front | 1 | |
| 1 | 95 52 290 Cable harness LHD • B201 • front | 1 | |
| 1 | 95 52 308 Cable harness LHD • B202 • front | 1 | |
| 1 | 95 52 316 Cable harness LHD • B202TURBO • front | 1 | |
| 1 | 95 52 324 Cable harness I • front | 1 | |
| 1 | 95 52 332 Cable harness B202 • front | 1 | |
| 1 | 95 52 340 Cable harness B202TURBO • front | 1 | |
| 1 | 95 52 241 Cable harness C • front | 1 | |
| 1 | 95 52 258 Cable harness I • front | 1 | |
| 1 | 95 52 266 Cable harness TURBO • front | 1 | |
| 1 | 95 52 274 Cable harness B202TURBO • front | 1 | |
| 1A | 85 69 386 Cable With catalytic converter. | 1 | |
85 30 966 Diode With catalytic converter. | 1 | ||
| 1B | 95 55 897 Cable harness B201 | 1 | |
| 2 | 95 53 140 Cable harness B201 • fuse-relay | 1 | |
| 2 | 95 53 157 Cable harness B202 • fuse-relay | 1 | |
| 2 | 95 97 089 Cable harness fuse-relay | ||
| 3 | 95 53 173 Cable harness B201 • main fuse box | 1 | |
| 3 | 95 53 181 Cable harness B202 • main fuse box | 1 | |
| 4 | 95 53 199 Cable harness B202 • engine | 1 | |
| 4 | 95 53 207 Cable harness B202 • With catalytic converter. engine | 1 | |
| 5 | 95 55 905 Cable B+ | 1 | |
| 6 | 85 94 467 Cable harness B201 • AC,SANKYO | idle speed... | 1 | |
| 6 | 88 21 019 Cable harness 1986-1986 • AC,CLARION | idle speed... | 1 | |
| 7 | 95 54 833 Cable harness SANKYO | idle speed... | 1 | |
| 7 | 88 21 290 Cable harness 1986-1986 • AC,CLARION | 1 | |
| 8 | 95 54 841 Cable harness AC | With recirculation.... | 1 | |
| 8 | 95 54 858 Cable harness AC,SF | Without recirculation.... | 1 | |
| 8 | 88 21 308 Cable harness 1986-1986 • AC,CLARION NOT | switch | 1 | |
| 9 | 95 61 804 Cable harness knock sensor | 1 | |
88 21 456 Cable harness 1986-1986 • AC,CLARION | cooling fan | 1 |
