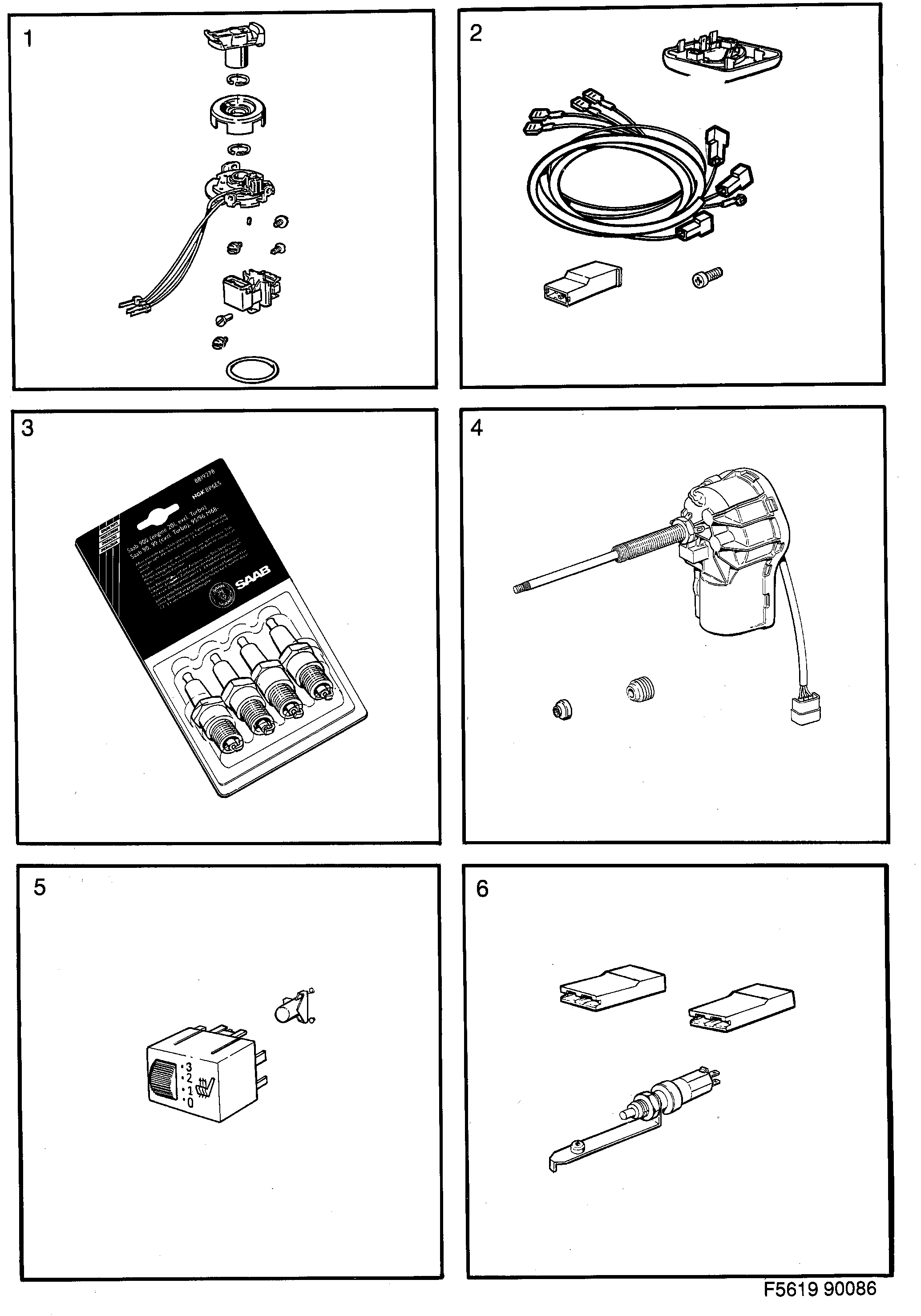

1510: Electrical, general - Kits - Electrical system
(1986 - 1989) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2 | 85 47 606 Interior lamp kit 1986-1986 • For cars with centre... | X | |
79 22 636 Screw | 1 | ||
85 41 229 Insulating sleeve | 1 | ||
85 47 580 Interior lighting | 1 | ||
95 67 215 Cable harness | 1 | ||
| 3 | 88 19 278 Spark plug B201I, C • NGK BP6ES | X | |
83 50 076 Spark plug | 4 | ||
| 4 | 85 48 133 Wiper motor kit LH | X | |
85 96 207 Wiper motor | 1 | ||
85 72 604 Seal | 1 | ||
85 78 510 Seal | 1 | ||
| 4 | 85 48 141 Wiper motor kit RH | X | |
85 96 215 Wiper motor | 1 | ||
| 6 | 85 48 802 Brake light switch | X | |
85 16 916 Insulation | 2 | ||
85 66 259 Nut | 1 | ||
85 77 702 Brake light switch | 1 | ||
86 78 070 Assembly instructions | 1 |
