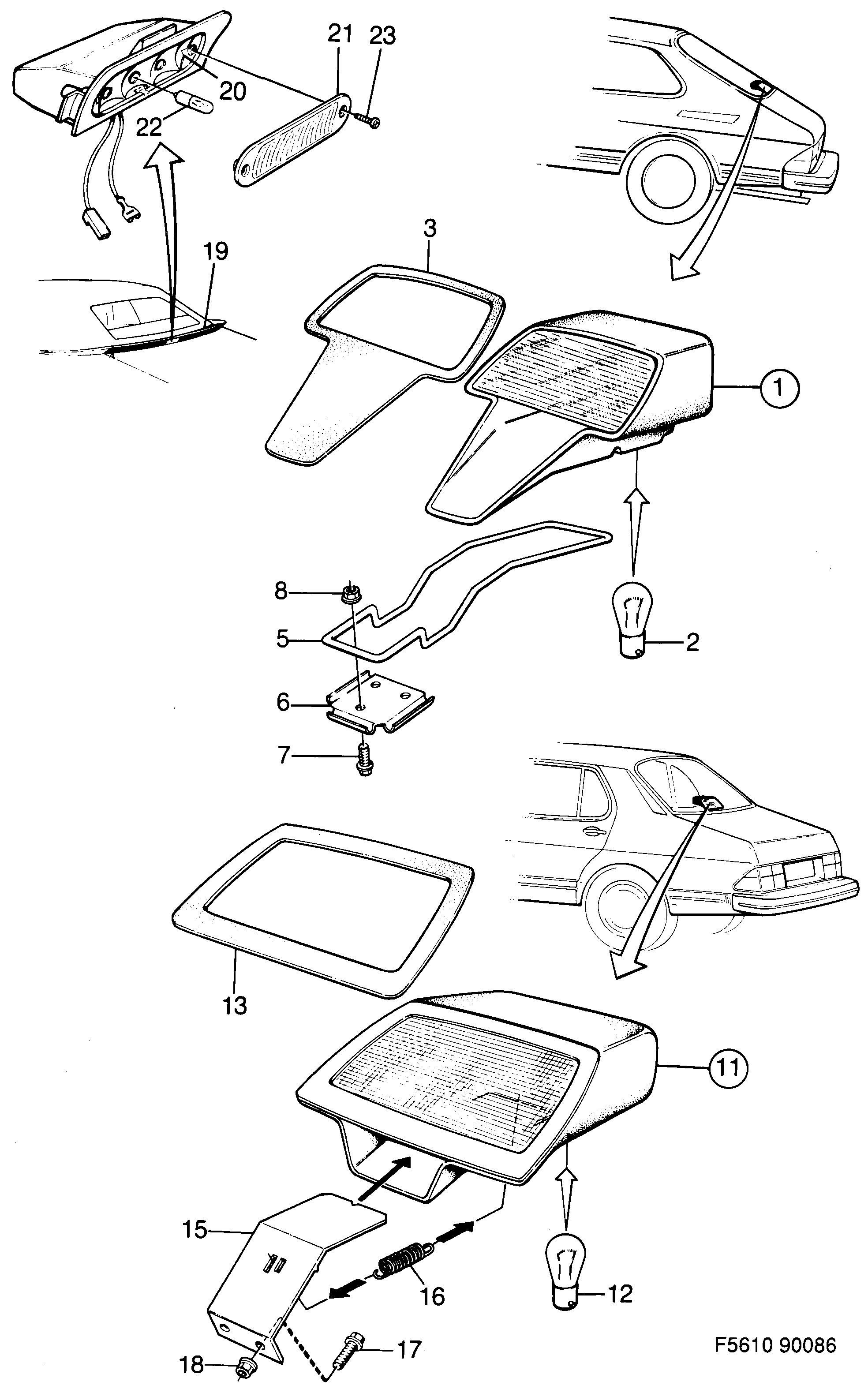

580: Electrical, general - Lighting - Stop light - High mounted
(1986 - 1989) | For 900 (1986)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 95 09 522 95 67 223 Stop lamp 1986-1987 | 1 | |
| 2 | 85 35 692 Bulb 40/238 304 000 | 1 | |
| 3 | 95 14 233 Seal | 1 | |
| 5 | 95 55 327 Tensioner | 1 | |
| 6 | 95 53 132 Clamping-piece | 1 | |
| 7 | 80 19 895 Screw | 3 | |
| 8 | 79 74 728 Cage nut | 3 | |
| 11 | 85 98 286 Stop light | 1 | |
| 12 | 85 35 692 Bulb 40/238 304 000 | 1 | |
| 13 | 95 51 953 Seal | 1 | |
| 15 | 95 51 979 Bracket | 1 | |
| 16 | 95 53 512 Spring | 1 | |
| 17 | 82 86 296 Screw (7965544) | 2 | |
| 18 | 79 74 728 Cage nut | 2 | |
| 19 | SpoilerExternal details Body Style: CV | ||
| 20 | 69 36 306 Reflector | 1 | |
| 21 | 69 97 183 Lens | 1 | |
| 22 | 95 12 880 93 190 471 Bulb 40/238 300 008 | 3 | |
| 23 | 69 36 314 Screw | 2 |
