Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 900 1986?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 900 1986. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	85 44 744 95 57 778 Reservoir 1986-1986	Reservoir	1986-1986	1
2	85 18 557 Cover 1986-1987	Cover	1986-1987	1
3	85 60 161 95 66 332 Filter 1986-1987	Filter	1986-1987	1
4	85 51 137 Bracket 1986-1986	Bracket	1986-1986	1
5	80 19 945 Screw	Screw		1
6	95 06 379 30 525 922 Pump, washer-reservoir	Pump, washer-reservoir		1
7	95 12 583 95 28 795 Rubber bushing -1987	Rubber bushing	-1987	1
10	85 33 341 Hose	Hose		1
12	85 33 374 Hose	Hose		1
13	85 60 732 Hose	Hose		1
14	85 52 044 Hose	Hose		1
15	85 60 740 Hose	Hose		1
16	85 44 785 Hose	Hose		1
17	85 44 793 Hose	Hose		1
18	85 09 002 Tube	Tube		1
19	85 44 660 T-pipe	T-pipe		1
25	85 73 651 51 42 765 Valve 1986-1988	Valve	1986-1988	1
26	85 04 144 Nozzle With two holes.	Nozzle	With two holes.	1
26	85 44 728 85 04 144 Nozzle With one hole.	Nozzle	With one hole.	1
28	71 56 409 Clamp	Clamp		2
30	85 08 392 Bracket	Bracket		2
31	85 08 848 Junction pipe For cars without headlamp...	Junction pipe	For cars without headlamp...	1
32	79 33 443 Clip For cars without headlamp...	Clip	For cars without headlamp...	2
33	85 73 669 51 42 757 Valve	Valve		2
34	85 73 677 Hose	Hose		2

Pos.	Part No.	Description	Usage	Qty
1	85 44 744 95 57 778 Reservoir 1986-1986	Reservoir	1986-1986	1
2	85 18 557 Cover 1986-1987	Cover	1986-1987	1
3	85 60 161 95 66 332 Filter 1986-1987	Filter	1986-1987	1
4	85 51 137 Bracket 1986-1986	Bracket	1986-1986	1
5	80 19 945 Screw	Screw		1
6	95 06 379 30 525 922 Pump, washer-reservoir	Pump, washer-reservoir		1
7	95 12 583 95 28 795 Rubber bushing -1987	Rubber bushing	-1987	1
10	85 33 341 Hose	Hose		1
12	85 33 374 Hose	Hose		1
13	85 60 732 Hose	Hose		1
14	85 52 044 Hose	Hose		1
15	85 60 740 Hose	Hose		1
16	85 44 785 Hose	Hose		1
17	85 44 793 Hose	Hose		1
18	85 09 002 Tube	Tube		1
19	85 44 660 T-pipe	T-pipe		1
25	85 73 651 51 42 765 Valve 1986-1988	Valve	1986-1988	1
26	85 04 144 Nozzle With two holes.	Nozzle	With two holes.	1
26	85 44 728 85 04 144 Nozzle With one hole.	Nozzle	With one hole.	1
28	71 56 409 Clamp	Clamp		2
30	85 08 392 Bracket	Bracket		2
31	85 08 848 Junction pipe For cars without headlamp...	Junction pipe	For cars without headlamp...	1
32	79 33 443 Clip For cars without headlamp...	Clip	For cars without headlamp...	2
33	85 73 669 51 42 757 Valve	Valve		2
34	85 73 677 Hose	Hose		2

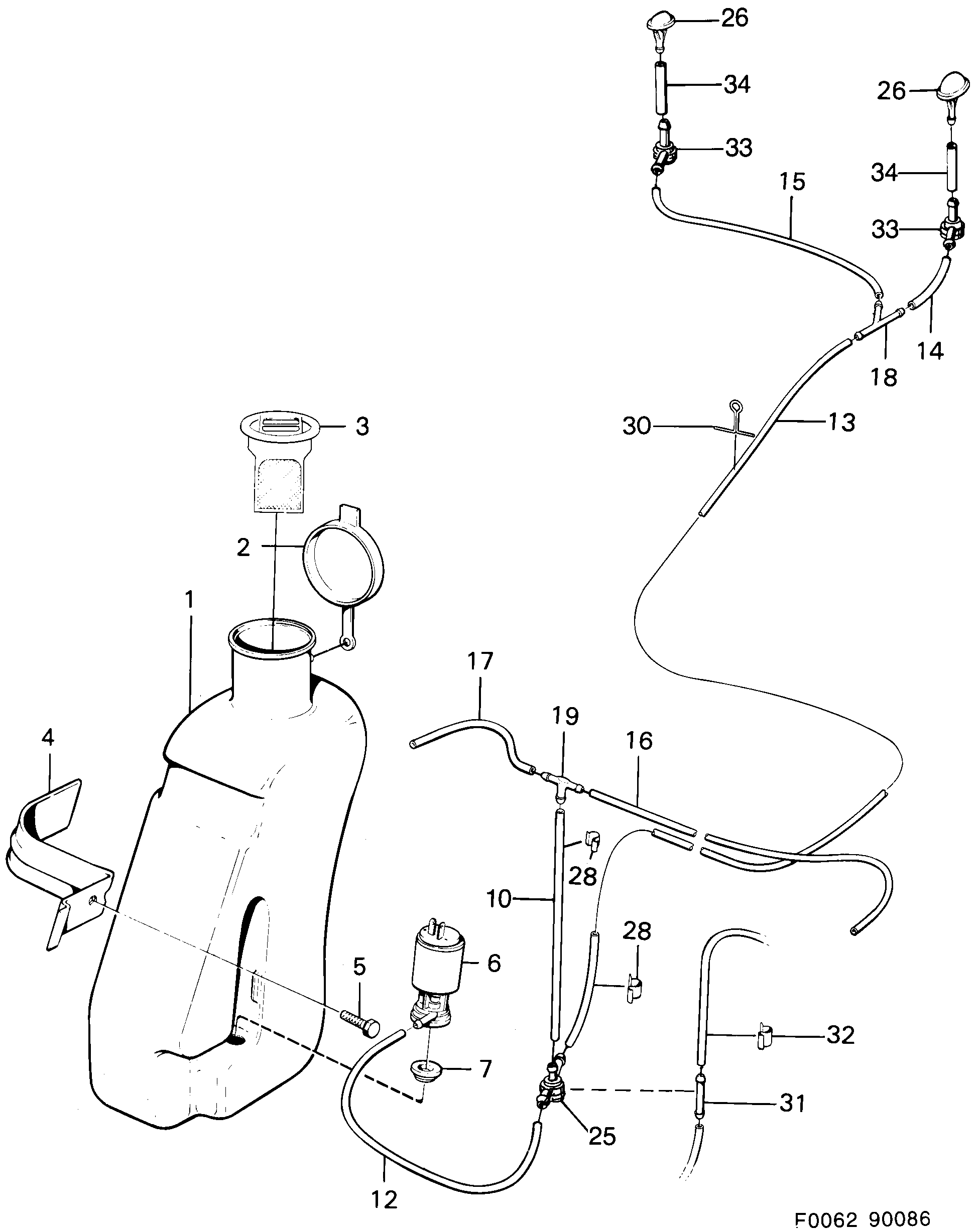

730: Electrical, general - Electric equipment, other - Washer unit
