Question 1

Where to find the exploded diagram for Electric equipment, other on my Saab 900 1986?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Electric equipment, other on Saab 900 1986. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Electric equipment, other?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Electric equipment, other?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Electric equipment, other, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Electric equipment, other suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	85 91 216 Control module Door lock	Control module	Door lock	1
2	85 91 224 Electric motor	Electric motor		3
4	85 98 245 Pull rod LH \| front door	Pull rod	LH \| front door	1
4	85 98 252 Pull rod RH \| front door	Pull rod	RH \| front door	1
6	85 78 221 Pull rod rear door	Pull rod	rear door	2
7	84 61 675 Clip	Clip		2
8	85 98 211 Bracket LH	Bracket	LH	1
8	95 51 151 Bracket RH	Bracket	RH	1
8	85 98 229 Bracket LH	Bracket	LH	1
8	85 98 237 Bracket RH	Bracket	RH	1
9	80 59 537 Screw	Screw		4
10	85 73 966 Bushing	Bushing		8
11	85 73 958 Sleeve	Sleeve		8
12	79 73 597 Screw	Screw		6
13	80 74 098 Nut	Nut		2
14	70 85 541 Sleeve	Sleeve		2
15	79 73 597 Screw	Screw		4
16	85 91 232 Electric motor	Electric motor		1
17	85 77 710 Clip	Clip		1
18	85 91 224 Electric motor	Electric motor		1
20	85 74 501 Pull rod	Pull rod		1
22	85 75 391 Bracket	Bracket		1
23	79 72 441 Screw	Screw		2
24	85 91 208 Electronic unit 1986-1987	Electronic unit	1986-1987	1
25	85 91 414 Attaching brace 1986-1987	Attaching brace	1986-1987	1
26	79 71 344 Screw 1986-1987	Screw	1986-1987	2
	CoverDoors, boot lid	CoverDoors, boot lid
	85 47 085 Central lock Kits C	Central lock Kits	C	X
	85 47 127 Central lock Kits I	Central lock Kits	I	X
	85 47 093 Central lock Kits C	Central lock Kits	C	X
	85 47 135 Central lock Kits I	Central lock Kits	I	X
	85 47 101 Central lock Kits C	Central lock Kits	C	X
	85 47 143 Central lock Kits I	Central lock Kits	I	X
	85 47 119 Central lock Kits C	Central lock Kits	C	X
	85 47 150 Central lock Kits I	Central lock Kits	I	X

Pos.	Part No.	Description	Usage	Qty
1	85 91 216 Control module Door lock	Control module	Door lock	1
2	85 91 224 Electric motor	Electric motor		3
4	85 98 245 Pull rod LH \| front door	Pull rod	LH \| front door	1
4	85 98 252 Pull rod RH \| front door	Pull rod	RH \| front door	1
6	85 78 221 Pull rod rear door	Pull rod	rear door	2
7	84 61 675 Clip	Clip		2
8	85 98 211 Bracket LH	Bracket	LH	1
8	95 51 151 Bracket RH	Bracket	RH	1
8	85 98 229 Bracket LH	Bracket	LH	1
8	85 98 237 Bracket RH	Bracket	RH	1
9	80 59 537 Screw	Screw		4
10	85 73 966 Bushing	Bushing		8
11	85 73 958 Sleeve	Sleeve		8
12	79 73 597 Screw	Screw		6
13	80 74 098 Nut	Nut		2
14	70 85 541 Sleeve	Sleeve		2
15	79 73 597 Screw	Screw		4
16	85 91 232 Electric motor	Electric motor		1
17	85 77 710 Clip	Clip		1
18	85 91 224 Electric motor	Electric motor		1
20	85 74 501 Pull rod	Pull rod		1
22	85 75 391 Bracket	Bracket		1
23	79 72 441 Screw	Screw		2
24	85 91 208 Electronic unit 1986-1987	Electronic unit	1986-1987	1
25	85 91 414 Attaching brace 1986-1987	Attaching brace	1986-1987	1
26	79 71 344 Screw 1986-1987	Screw	1986-1987	2
	CoverDoors, boot lid	CoverDoors, boot lid
	85 47 085 Central lock Kits C	Central lock Kits	C	X
	85 47 127 Central lock Kits I	Central lock Kits	I	X
	85 47 093 Central lock Kits C	Central lock Kits	C	X
	85 47 135 Central lock Kits I	Central lock Kits	I	X
	85 47 101 Central lock Kits C	Central lock Kits	C	X
	85 47 143 Central lock Kits I	Central lock Kits	I	X
	85 47 119 Central lock Kits C	Central lock Kits	C	X
	85 47 150 Central lock Kits I	Central lock Kits	I	X

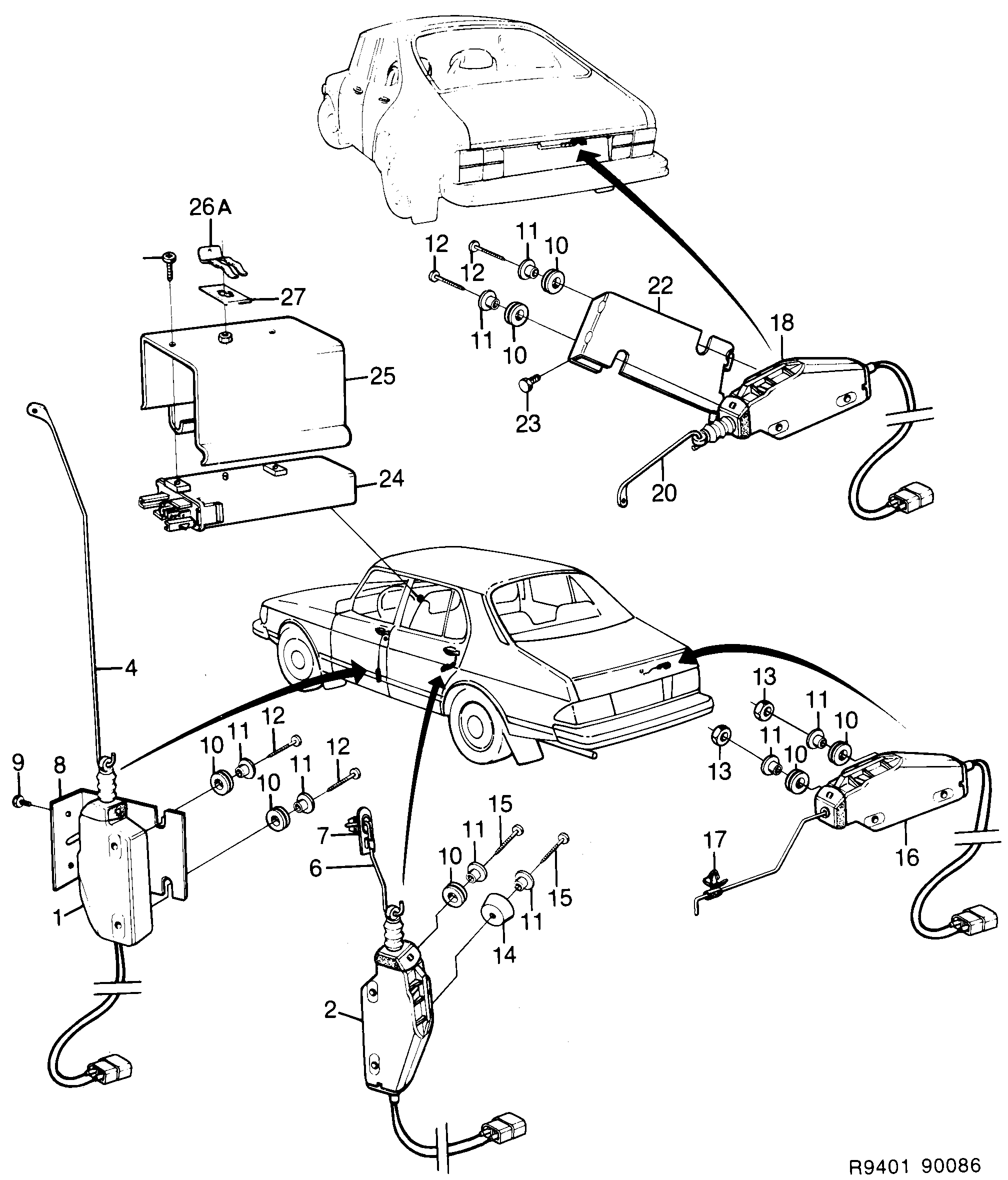

760: Electrical, general - Electric equipment, other - Central lock
