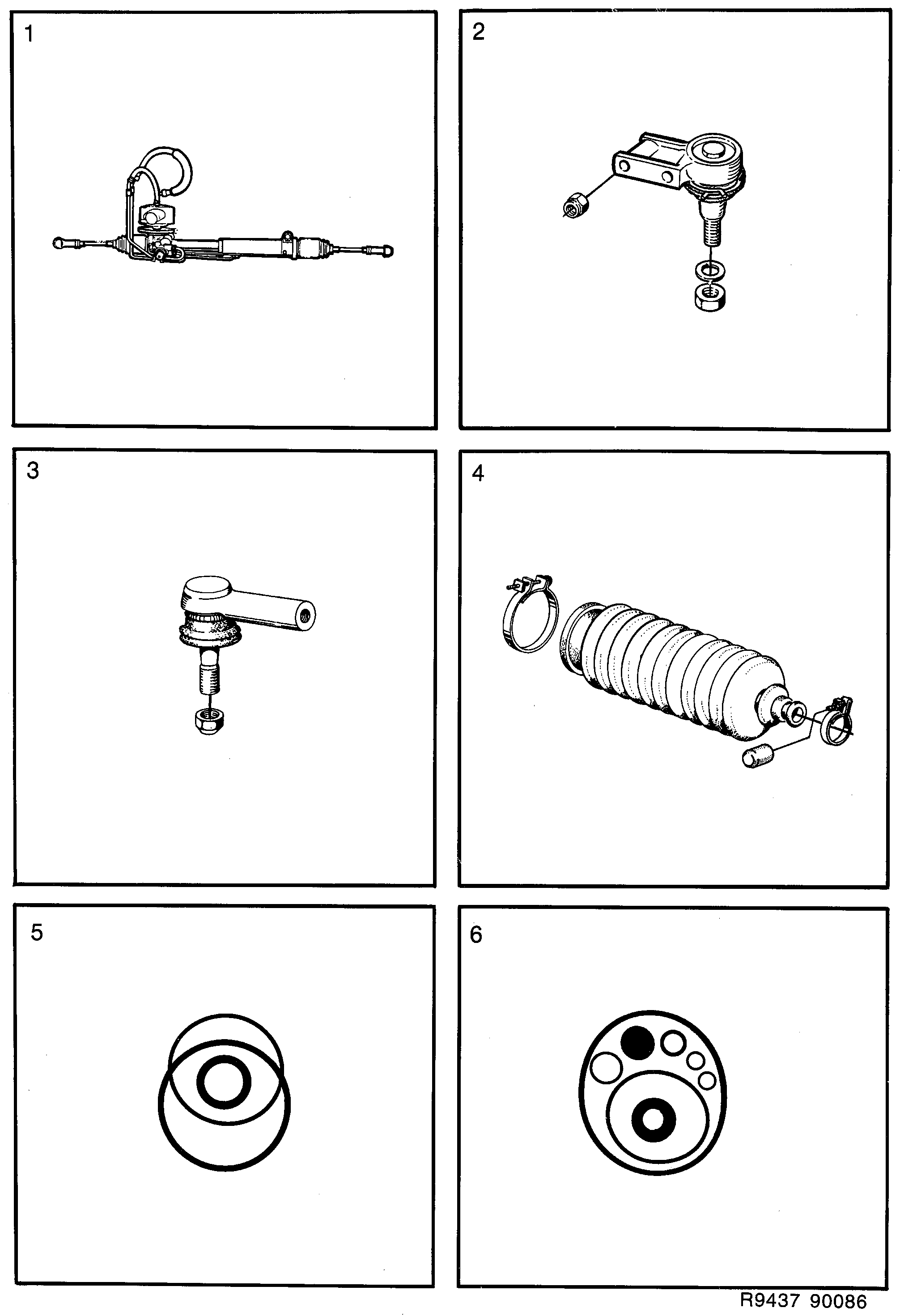

310: Steering - Kits - Front assembly - Steering assembly

(1986 - 1989) | For 900 (1986)

100%

(N°280)

Section 310

(N°100)

Pos.	Part No.	Description	Usage	Qty
1	78 74 316 89 93 552 Steering gear kit LHD • power steering	Steering gear kit	LHD power steering	X
	91 06 295 Steering gear	Steering gear		1
	89 34 242 Screw	Screw		2
	89 34 259 Washer	Washer		2
	79 71 765 92 153 201 Nut	Nut		2
	79 67 979 Nut	Nut		2
	91 01 577 Pump, hydraulic oil	Pump, hydraulic oil		1
	89 86 051 Pulley	Pulley		1
	79 63 507 79 70 049 Hose clamp	Hose clamp		1
	89 42 575 Hose	Hose		1
	89 48 333 Hose	Hose		1
	79 70 130 92 153 077 Hose clamp	Hose clamp		1
	89 44 001 Sleeve	Sleeve		1
	93 61 791 Belt, v ribbed	Belt, v ribbed		1
	93 25 705 Bracket	Bracket		1
	93 25 713 Brace	Brace		1
	93 24 914 Spacer ring	Spacer ring		1
	79 67 946 Screw	Screw		1
	80 83 156 81 48 215 Screw	Screw		1
	93 38 542 Washer	Washer		1
	81 51 094 Nut	Nut		2
	80 82 927 Screw	Screw		1
	89 37 617 32 025 040 Oil	Oil		X
1	89 93 552 Steering gear kit LHD	Steering gear kit	LHD	X
	91 05 735 Nut	Nut		2
2	89 93 321 End piece	End piece		X
	89 85 384 89 93 321 End piece Not as separate spare...	End piece	Not as separate spare...	1
	89 93 677 Nut set	Nut set		1
	89 90 012 Screw	Screw		1
3	89 93 354 Drag link end	Drag link end		X
	89 85 160 Drag link end Not as separate spare...	Drag link end	Not as separate spare...	1
	81 51 482 Lock nut	Lock nut		1
3	89 93 560 Drag link end	Drag link end		X
	89 90 178 Drag link end Not as separate spare...	Drag link end	Not as separate spare...	1
4	89 47 913 Bellows kit Steering rod	Bellows kit	Steering rod	X
	89 26 743 Bellows Not as separate spare...	Bellows	Not as separate spare...	1
	89 26 768 Clamp	Clamp		1
	89 20 183 Clamp	Clamp		1
	89 20 191 Cover Not as separate spare...	Cover	Not as separate spare...	1
5	89 89 857 Gasket kit B202 • hydraulic pump	Gasket kit	B202 hydraulic pump	X
	O-ring Not as separate spare...	O-ring	Not as separate spare...	1
	O-ring Not as separate spare...	O-ring	Not as separate spare...	1
	O-ring Not as separate spare...	O-ring	Not as separate spare...	1
6	89 89 840 Gasket kit B201 • hydraulic pump	Gasket kit	B201 hydraulic pump	X
	O-ring Not as separate spare...	O-ring	Not as separate spare...	1
	O-ring Not as separate spare...	O-ring	Not as separate spare...	2
	O-ring Not as separate spare...	O-ring	Not as separate spare...	1
	Sealing ring Not as separate spare...	Sealing ring	Not as separate spare...	1
	Sealing ring Not as separate spare...	Sealing ring	Not as separate spare...	1
	Sealing ring Not as separate spare...	Sealing ring	Not as separate spare...	2
	Sealing ring Not as separate spare...	Sealing ring	Not as separate spare...	2
	Sealing ring Not as separate spare...	Sealing ring	Not as separate spare...	1
	Magnet Not as separate spare...	Magnet	Not as separate spare...	1
