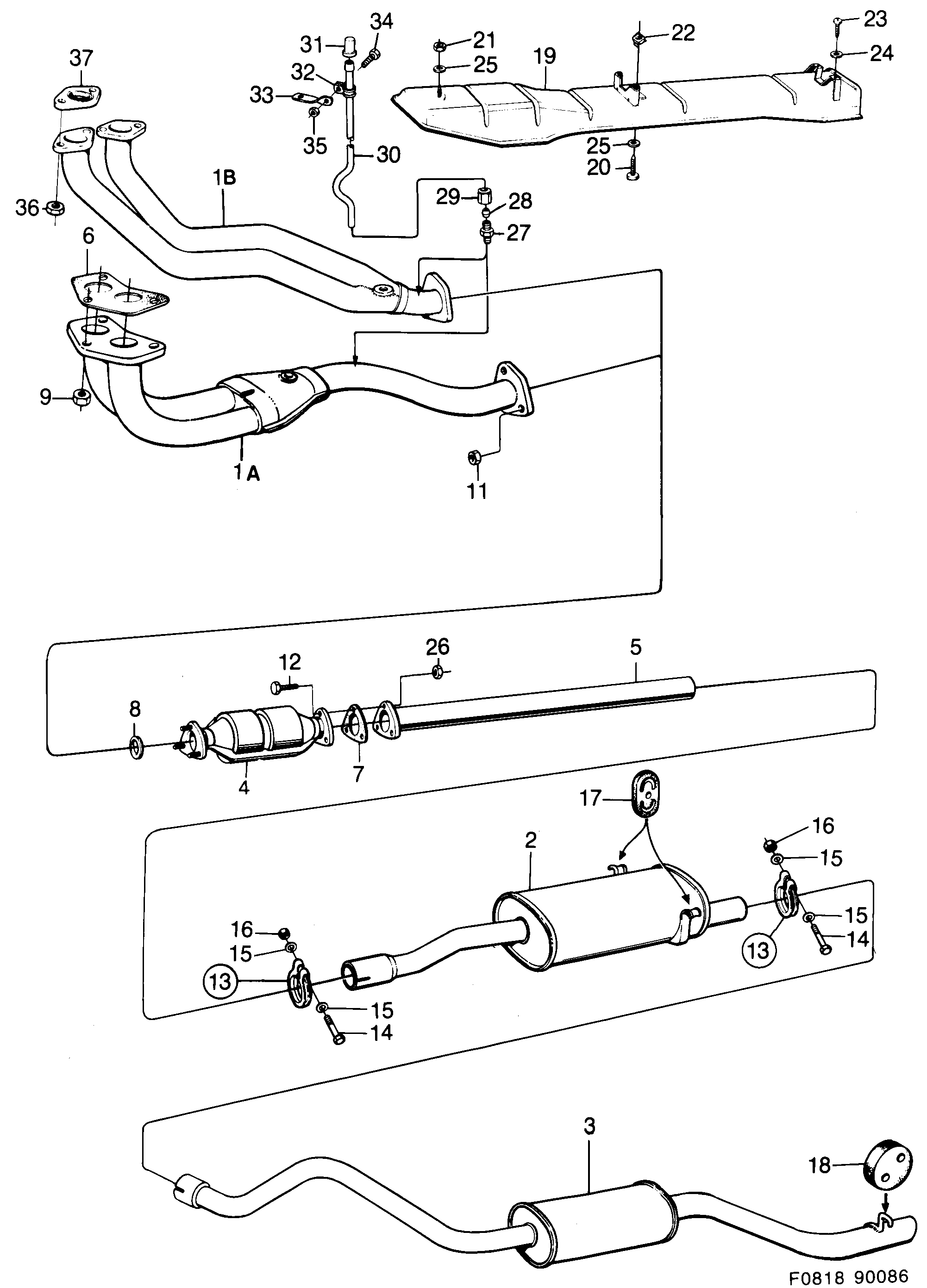

1600: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1A | 75 39 117 54 66 933 Exhaust pipe 03 | 1 | |
| 1A | 89 76 763 Exhaust pipe 03 | 1 | |
| 2 | 54 66 198 Silencer 03 • (8822272) | 1 | |
| 3 | 54 66 180 Silencer 03 • (8822181) | 1 | |
| 4 | 93 32 461 Three way catalytic converter 03 | 1 | |
| 4 | 44 40 061 Three way catalytic converter 03 | 1 | |
| 5 | 93 33 840 54 66 792 Exhaust pipe 03 | 1 | |
| 6 | 75 28 136 Gasket 03 | 1 | |
| 7 | 83 87 052 40 24 089 Gasket 03 | 1 | |
| 8 | 83 28 726 Ring 03 | 1 | |
| 9 | 79 67 870 79 79 503 Nut -1988 • 03 | 3 | |
| 11 | 80 74 106 Nut 1986-1987 • 03 | 3 | |
| 12 | 79 67 789 Screw 03 | 3 | |
| 13 | 83 86 450 Clamp 03 | 1 | |
| 14 | 80 84 014 32 000 289 Screw 03 | 1 | |
| 15 | 93 19 047 Washer 03 | 2 | |
| 16 | 80 73 942 Nut 1986-1987 • 03 | 1 | |
| 17 | 93 28 105 Rubber mounting 03 | 2 | |
| 18 | 93 65 404 Rubber mounting 03 | 1 | |
| 19 | 93 49 804 79 23 014 Heat shield 03 | 1 | |
| 20 | 93 68 218 Screw 03 | 2 | |
| 21 | 80 74 106 Nut 1986-1987 • 03 | 1 | |
| 22 | 79 70 429 Cage nut 03 | 2 | |
| 23 | 79 22 503 Screw 03 | 2 | |
| 24 | 79 10 540 Washer 03 | 2 | |
| 25 | 79 10 557 Washer 03 | 3 | |
| 26 | 79 74 264 30 509 159 Nut 03 | 3 | |
88 18 577 | X | ||
88 19 690 | X | ||
93 21 555 | X |
