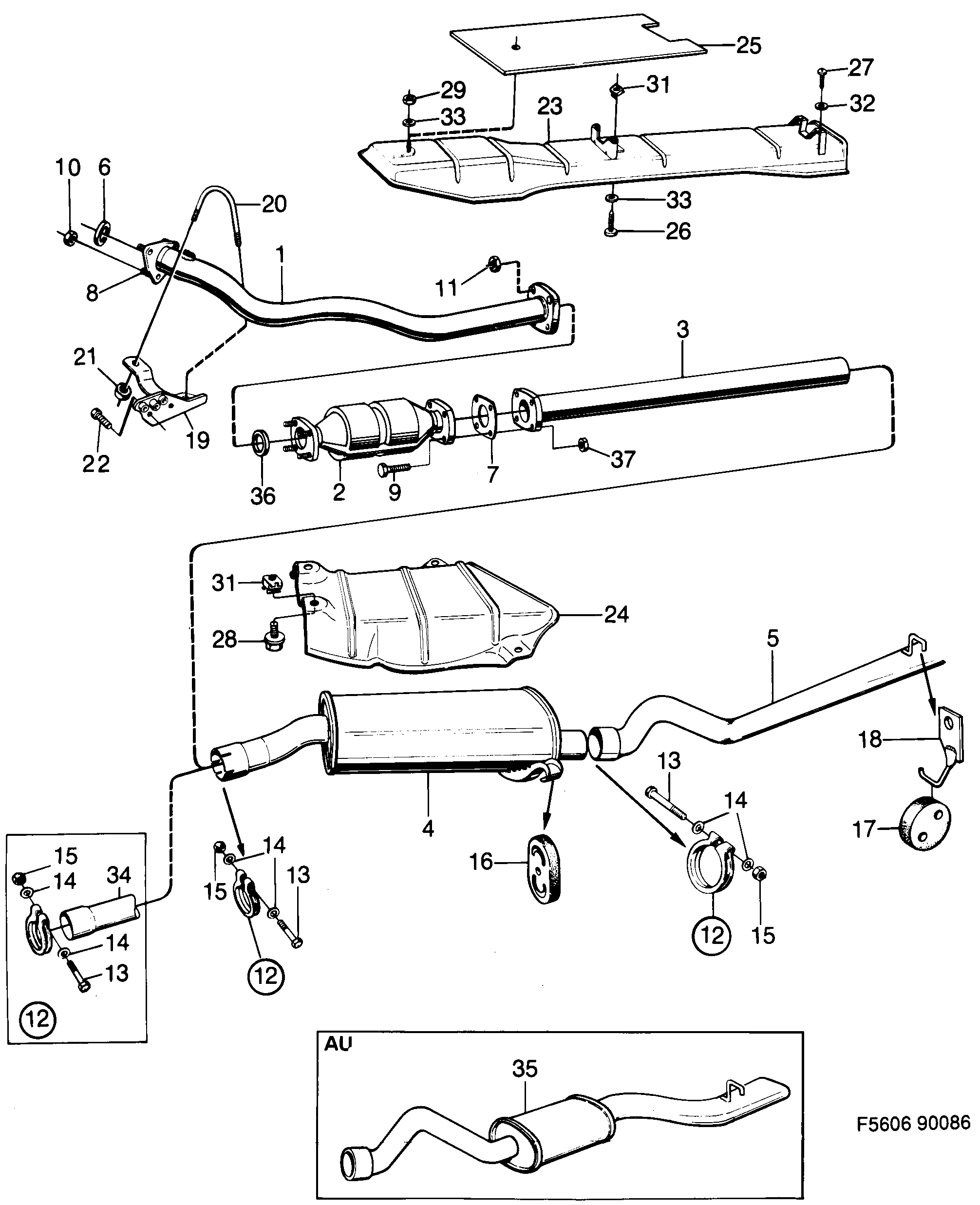

1750: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1986 - 1989 | TURBO) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 54 66 172 Exhaust pipe 44 • (7533896) | 1 | |
| 2 | 93 32 453 Three way catalytic converter B201 • EU with US specification. | 1 | |
| 2 | 44 40 053 Three way catalytic converter B201 | 1 | |
| 2 | 75 33 540 Three way catalytic converter B202 | 1 | |
| 2 | 44 40 038 Three way catalytic converter B202 | 1 | |
| 3 | 75 37 061 Intermediate pipe B201 • EU with US specification. | 1 | |
| 3 | 93 33 857 54 66 842 Exhaust pipe B202 | 1 | |
| 4 | 88 22 280 93 49 192 Silencer 44 • (9349192) | 1 | |
| 6 | 93 16 407 Seal 44 | 1 | |
| 7 | 83 34 963 40 24 121 Gasket 44 | 1 | |
| 8 | 83 67 856 75 20 224 Stud 44 | 3 | |
| 9 | 79 67 789 Screw 44 | 4 | |
| 10 | 79 65 767 55 557 005 Lock nut 44 | 3 | |
| 11 | 80 74 106 Nut 1986-1987 • 44 | 4 | |
| 12 | 83 36 406 Clamp 44 | 2 | |
| 13 | 80 84 030 Screw 44 | 1 | |
| 14 | 93 19 047 Washer 44 | 2 | |
| 15 | 80 74 106 Nut 1986-1987 • 44 | 1 | |
| 16 | 93 28 105 Rubber mounting 44 | 2 | |
| 17 | 93 65 404 Rubber mounting 44 | 1 | |
| 19 | 75 26 916 Brace 44 • For service measures, use... | 1 | |
| 20 | 93 17 058 Brace 44 | 1 | |
| 21 | 79 65 767 55 557 005 Lock nut 44 | 2 | |
| 22 | 80 82 968 55 562 873 Screw 44 | 2 | |
| 23 | 93 49 804 79 23 014 Heat shield 44 | 1 | |
| 24 | 75 11 645 Shield 44 | 1 | |
| 25 | Heat shieldUpholstery 44 | 1 | |
| 26 | 93 68 218 Screw 44 | 2 | |
| 27 | 79 22 503 Screw 44 | 2 | |
| 28 | 75 28 953 Screw 44 | 4 | |
| 29 | 80 74 106 Nut 1986-1987 • 44 | 1 | |
| 31 | 79 70 429 Cage nut 44 | 6 | |
| 32 | 80 29 951 Washer 44 | 2 | |
| 33 | 80 29 985 92 153 033 Washer 44 | 3 | |
| 35 | 88 22 173 Silencer 44 • (7536063) | 1 | |
| 36 | 83 34 971 93 16 407 Seal 44 | 1 | |
| 37 | 79 74 264 30 509 159 Nut 44 | 4 | |
88 19 708 | X | ||
75 38 440 | X | ||
88 19 203 | X | ||
93 21 563 | X |
