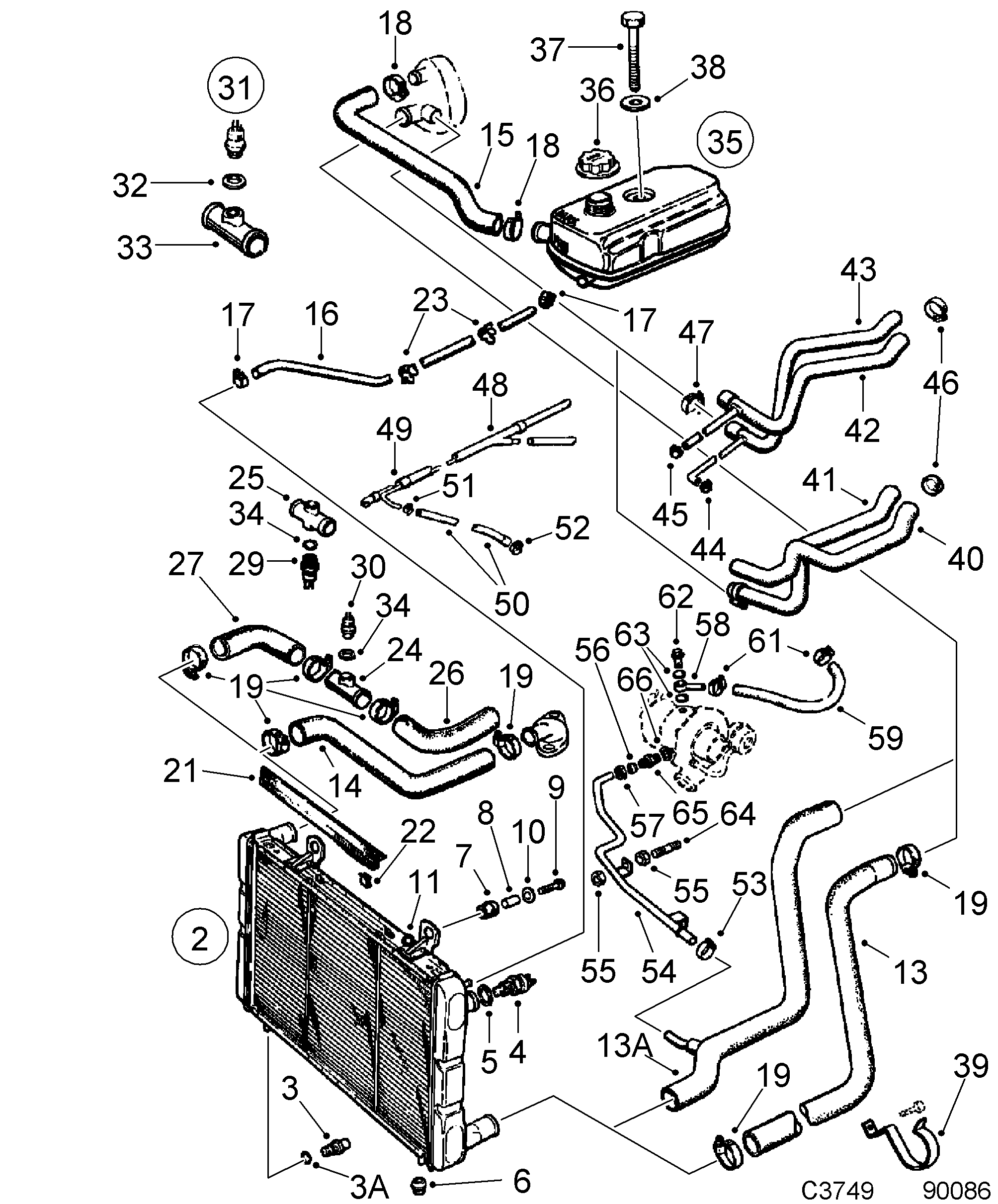

1780: Engine - Cooling system - Radiator, etc

(1986 - 1989) | For 900 (1987)

100%

(N°1750)

Section 1780

(N°1810)

Pos.	Part No.	Description	Usage	Qty
2	75 41 063 75 49 280 Radiator -1989	Radiator	-1989	1
2	75 41 071 75 49 298 Radiator -1989 • TURBO	Radiator	-1989 TURBO	1
3	93 18 304 Drain valve -1989	Drain valve	-1989	1
4	85 47 572 Thermo contact 1987-1987	Thermo contact	1987-1987	1
5	83 30 268 Seal	Seal		1
6	83 39 657 Rubber bushing	Rubber bushing		2
7	75 13 724 Rubber bushing	Rubber bushing		2
8	75 13 716 Spacer	Spacer		2
9	79 75 436 Screw	Screw		2
10	79 75 469 79 87 506 Washer	Washer		2
11	79 71 658 11 900 428 Nut	Nut		2
13	93 64 795 Hose	Hose		1
13	75 12 817 Hose 1986-1987 • TURBO	Hose	1986-1987 TURBO	1
14	75 40 420 Hose	Hose		1
15	93 49 382 Hose	Hose		1
16	93 30 515 Hose -1989	Hose	-1989	1
17	79 70 031 Hose clamp	Hose clamp		2
18	79 70 098 Hose clamp	Hose clamp		2
19	79 70 106 Hose clamp	Hose clamp		4
21	75 41 857 Sealing strip -1989	Sealing strip	-1989	1
22	75 43 911 Clamp -1989	Clamp	-1989	3
23	85 36 419 11 900 515 Clip	Clip		2
24	93 32 826 Pipe elbow AC	Pipe elbow	AC	1
25	93 45 091 Tube	Tube		1
26	75 43 259 Hose AC	Hose	AC	1
27	93 32 818 Hose AC	Hose	AC	1
29	85 73 586 40 86 716 Contact 1986-1987	Contact	1986-1987	1
29	95 52 878 40 86 724 Contact 1986-1987 • B202 • AC	Contact	1986-1987 B202 AC	1
30	85 72 331 40 86 724 Thermo contact AC	Thermo contact	AC	1
34	83 30 268 Seal AC	Seal	AC	2
35	93 63 557 75 49 876 Expansion tank 1986-1988	Expansion tank	1986-1988	1
36	83 35 069 43 95 570 Cover -1987	Cover	-1987	1
36	75 77 323 43 95 570 Cover 1987-	Cover	1987-	1
37	80 84 055 Screw	Screw		1
38	83 71 650 Washer	Washer		1
39	93 44 524 Bracket	Bracket		1
40	93 24 658 Hose C • For cars with by-pass...	Hose	C For cars with by-pass...	1
40	93 24 666 Hose LHD • I • For cars with by-pass...	Hose	LHD I For cars with by-pass...	1
41	93 24 609 Hose C, I • For cars with by-pass...	Hose	C, I For cars with by-pass...	1
42	75 20 174 Hose I • EU with US specification....	Hose	I EU with US specification....	1
43	75 13 435 Hose I • For cars with by-pass...	Hose	I For cars with by-pass...	1
43	75 41 527 Hose B201TURBO • For cars with by-pass...	Hose	B201TURBO For cars with by-pass...	1
44	79 63 515 90 572 589 Hose clamp	Hose clamp		1
45	79 70 049 Hose clamp 1986-1988	Hose clamp	1986-1988	1
46	79 63 556 79 70 098 Hose clamp	Hose clamp		3
47	79 63 549 79 70 080 Hose clamp	Hose clamp		1
48	75 60 360 Hose TURBO	Hose	TURBO	1
49	75 16 875 Tube TURBO	Tube	TURBO	1
50	75 19 531 Hose TURBO	Hose	TURBO	1
51	79 63 515 90 572 589 Hose clamp TURBO	Hose clamp	TURBO	1
52	83 59 275 90 530 642 Hose clamp TURBO	Hose clamp	TURBO	1
