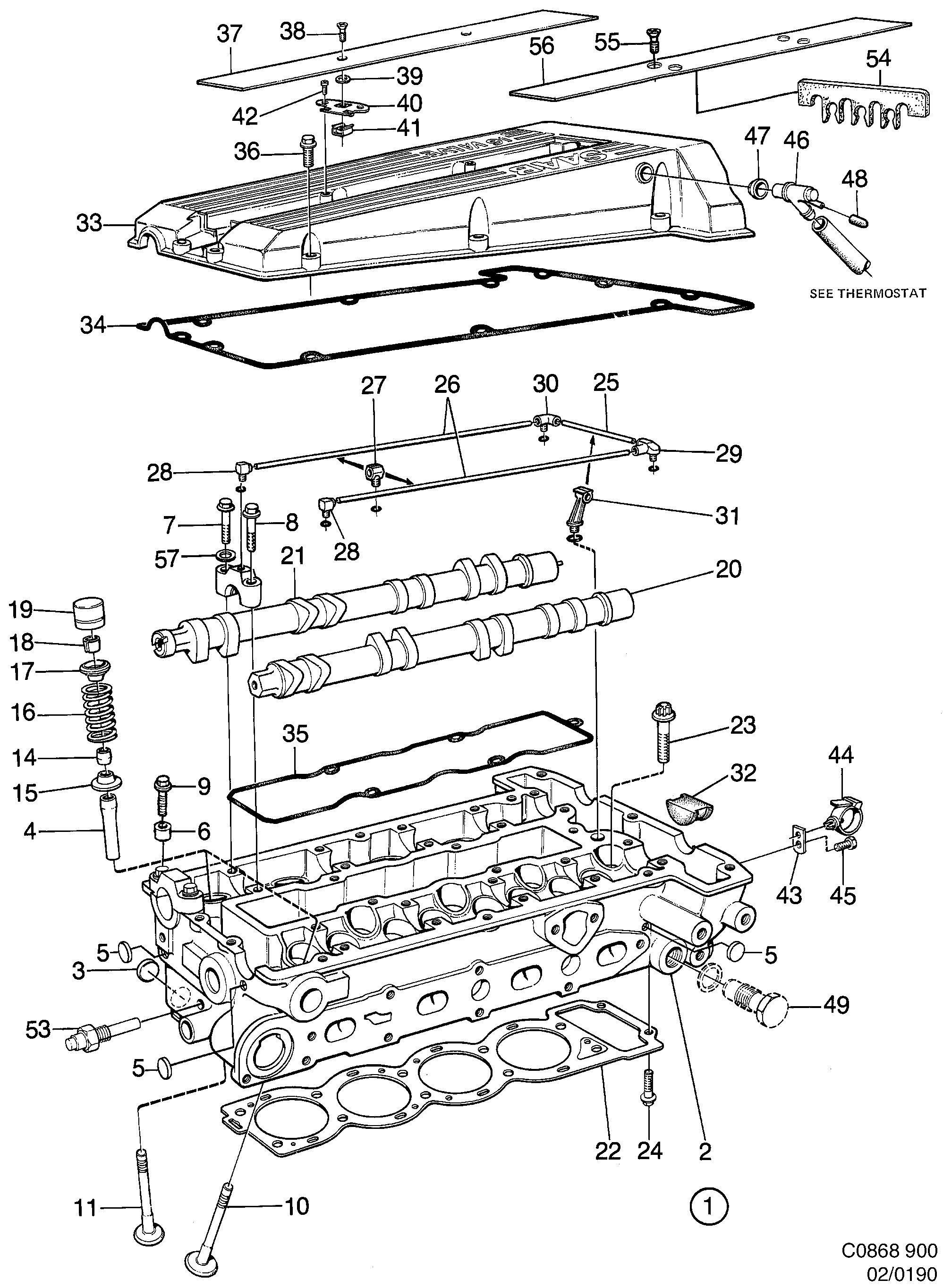

190: Engine - Short block - Cylinder head
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 3 | 81 23 218 Sealing washer 1986-1987 • 05 | 2 | |
| 4 | 75 60 154 Valve guide 05 | 16 | |
| 4 | 75 69 734 Valve guide 05 • Oversize | 16 | |
| 6 | 75 04 566 Guide sleeve 05 | 2 | |
| 7 | 81 25 213 Screw 05 | 12 | |
| 9 | 75 04 178 92 151 833 Screw 05 | 2 | |
| 10 | 75 62 002 74 84 801 Inlet valve 05 • Intake. | 8 | |
| 11 | 75 00 085 91 65 598 Exhaust valve 05 • Exhaust. | 8 | |
| 14 | 75 00 713 Seal 05 | 16 | |
| 15 | 75 05 134 Washer 05 | 16 | |
| 16 | 93 58 391 91 29 651 Spring 05 | 16 | |
| 17 | 75 01 349 Washer 05 | 16 | |
| 18 | 75 15 547 Valve cone 05 | 32 | |
| 19 | 93 57 716 55 557 388 Tappet 05 | 16 | |
| 20 | 75 60 808 Camshaft TURBO • Intake. | 1 | |
| 20 | 75 61 467 Camshaft I • Intake. | 1 | |
| 21 | 75 60 964 Camshaft 05 • Exhaust. | 1 | |
| 23 | 75 18 335 59 55 794 Screw 05 | 10 | |
| 24 | 81 25 189 Screw 05 | 2 | |
| 27 | 75 18 434 74 80 429 Nipple 1986-1987 • 05 | 6 | |
| 28 | 75 18 442 74 80 437 Nipple 1986-1987 • 05 | 2 | |
| 29 | 75 18 459 74 80 445 Nipple 1986-1987 • 05 | 1 | |
| 30 | 75 18 467 Nipple 1986-1987 • 05 | 1 | |
| 31 | 75 19 523 74 80 460 Nipple 1986-1987 • 05 | 1 | |
| 32 | 75 00 069 Plug 05 | 3 | |
| 36 | 75 60 931 Screw 05 | 16 | |
| 43 | 75 11 975 Bracket 05 | 2 | |
| 44 | 75 12 015 Tensioning band 05 | 2 | |
| 45 | 80 82 919 80 82 935 Screw 05 | 2 | |
| 46 | 75 17 048 Nipple 05 | 1 | |
| 47 | 75 15 190 95 49 593 Bushing 1987-1989 • 05 | 1 | |
| 48 | 83 35 614 Plug 05 | 1 | |
| 49 | Chain tensionerShort block 05 | ||
| 53 | 88 00 914 30 539 720 Sensor 05 | 1 | |
| 54 | RetainerIgnition system 05 |
