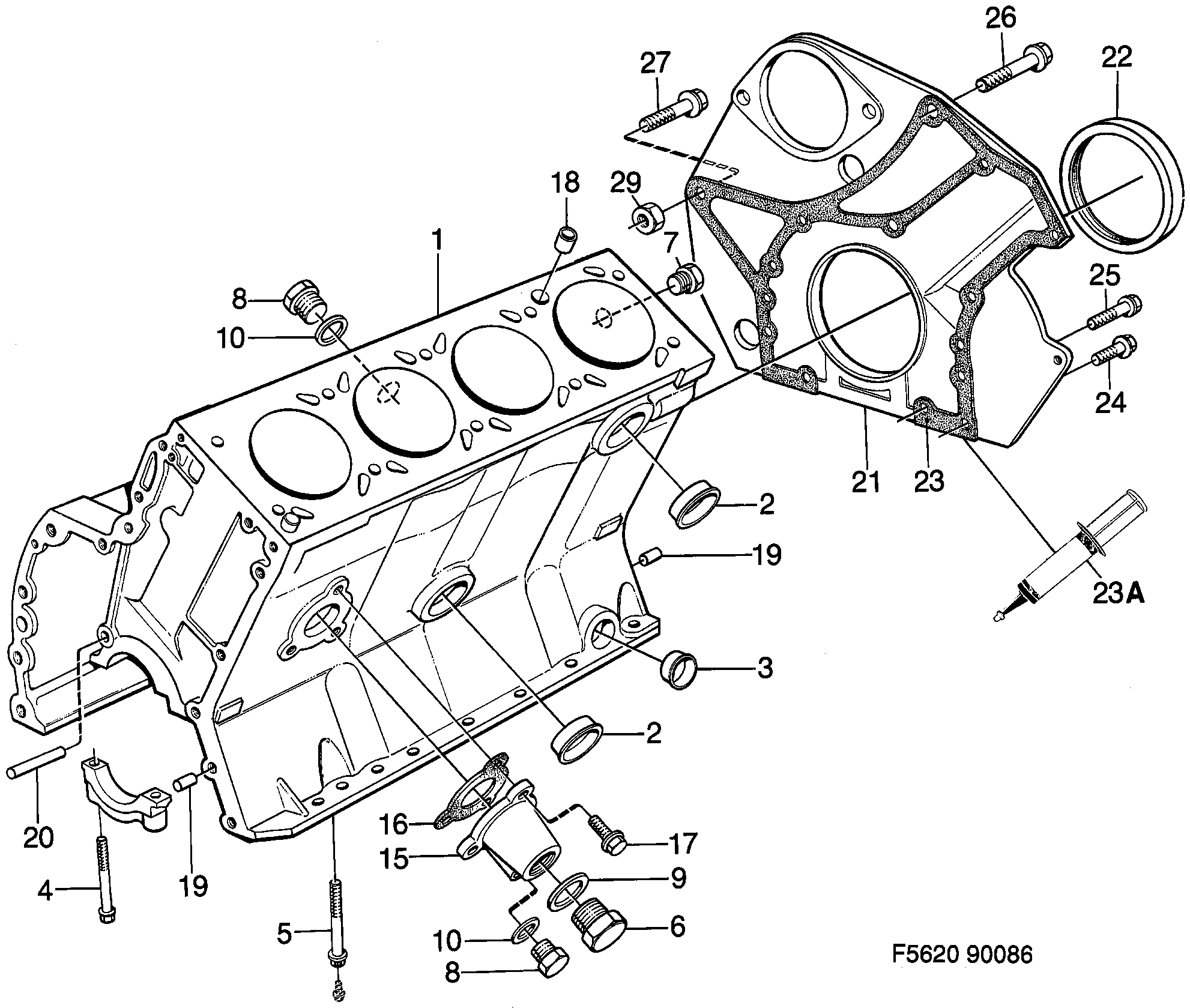

220: Engine - Short block - Cylinder block
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 16 826 Cylinder block | 1 | |
| 1 | 75 16 834 Cylinder block TURBO | 1 | |
| 2 | 83 47 999 32 000 339 Sealing washer 1986-1987 | 2 | |
| 3 | 81 23 218 Sealing washer 1986-1987 | 1 | |
| 4 | 83 52 502 91 28 687 Screw | 6 | |
| 5 | 93 08 537 Screw Main bearing 2 and... | 4 | |
| 6 | 75 64 230 81 23 788 Plug 1986-1988 | 1 | |
| 7 | 83 48 047 Plug | 1 | |
| 8 | 75 64 222 75 63 042 Plug 1986-1988 | 2 | |
| 9 | 81 24 208 91 16 856 Gasket -1989 | 1 | |
| 10 | 83 26 712 41 61 162 Seal | 2 | |
| 15 | 75 81 259 91 44 684 Cover 1987-1989 | 1 | |
| 16 | 75 07 833 75 23 897 Gasket | 1 | |
| 17 | 81 25 189 Screw | 3 | |
| 18 | 83 46 470 Guide | 2 | |
| 19 | 83 66 007 Guide | 4 | |
| 20 | PinShort block | 1 | |
| 21 | 75 16 255 End piece | 1 | |
| 22 | 93 50 158 55 557 240 Seal | 1 | |
| 23 | 75 63 661 Gasket 1987-1989 | 1 | |
| 23A | 90 297 970 Flange sealant 50 ML | X | |
| 24 | 81 25 189 Screw | 9 | |
| 25 | 81 25 197 Screw | 2 | |
| 26 | 81 25 551 Screw 1986-1987 | 1 | |
| 27 | 81 25 585 Screw 1986-1987 • C | 1 | |
| 27 | 81 25 601 Screw 1986-1987 | 1 | |
| 29 | 80 73 967 Nut 1986-1988 | 1 |
