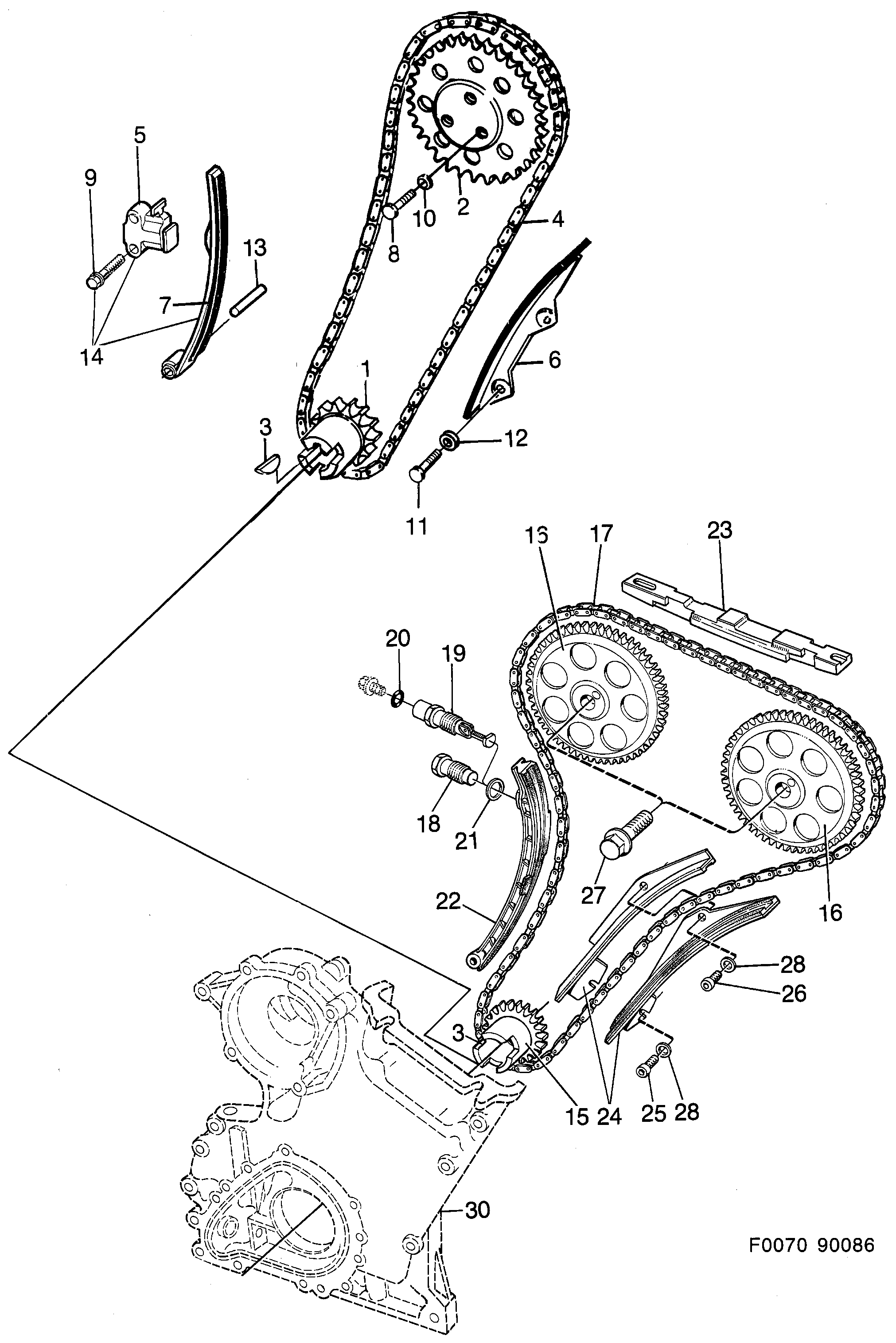

310: Engine - Short block - Transmission
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 18 632 Chain gear B201 | 1 | |
| 2 | 75 63 166 Chain gear 1987-1989 • B201 | 1 | |
| 3 | 83 47 122 Key | 1 | |
| 4 | 93 59 779 Chain B201 | 1 | |
| 5 | 93 58 672 Chain tensioner B201 | 1 | |
| 6 | 75 07 155 Chain control B201 | 1 | |
| 7 | 93 58 680 Chain control B201 | 1 | |
| 8 | 80 82 935 Screw B201 | 3 | |
| 9 | 81 25 064 Screw B201 | 2 | |
| 10 | 80 29 985 92 153 033 Washer B201 | 3 | |
| 11 | 80 19 895 Screw B201 | 4 | |
| 12 | 80 29 951 Washer B201 | 4 | |
| 13 | 80 34 761 Pin B201 | 1 | |
| 14 | 88 17 405 | X | |
| 15 | 75 18 640 Chain gear B202 | 1 | |
| 16 | 75 00 127 Chain gear B202 | 2 | |
| 17 | 75 00 697 Chain B202 | 1 | |
| 17 | 93 21 837 Chain B202 • ALTERNATIV | Open, with... | 1 | |
| 19 | 75 85 086 Chain tensioner 1987-1989 • B202 | 1 | |
| 20 | 81 09 571 80 48 670 O-ring 1987-1989 • B202 | 1 | |
| 21 | 75 08 690 Seal B202 | 1 | |
| 22 | 75 00 150 88 58 276 Chain control B202 | 1 | |
| 24 | 75 20 315 91 33 505 Chain control 1987-1989 • B202 | 1 | |
| 25 | 80 19 929 Screw 1987-1989 • B202 | 1 | |
| 26 | 80 19 960 Screw 1987-1989 • B202 | 1 | |
| 27 | 30 37 140 91 07 541 Screw B202 | 2 | |
| 28 | 80 29 951 Washer B202 | 2 | |
| 30 | CoverShort block | 2 |
