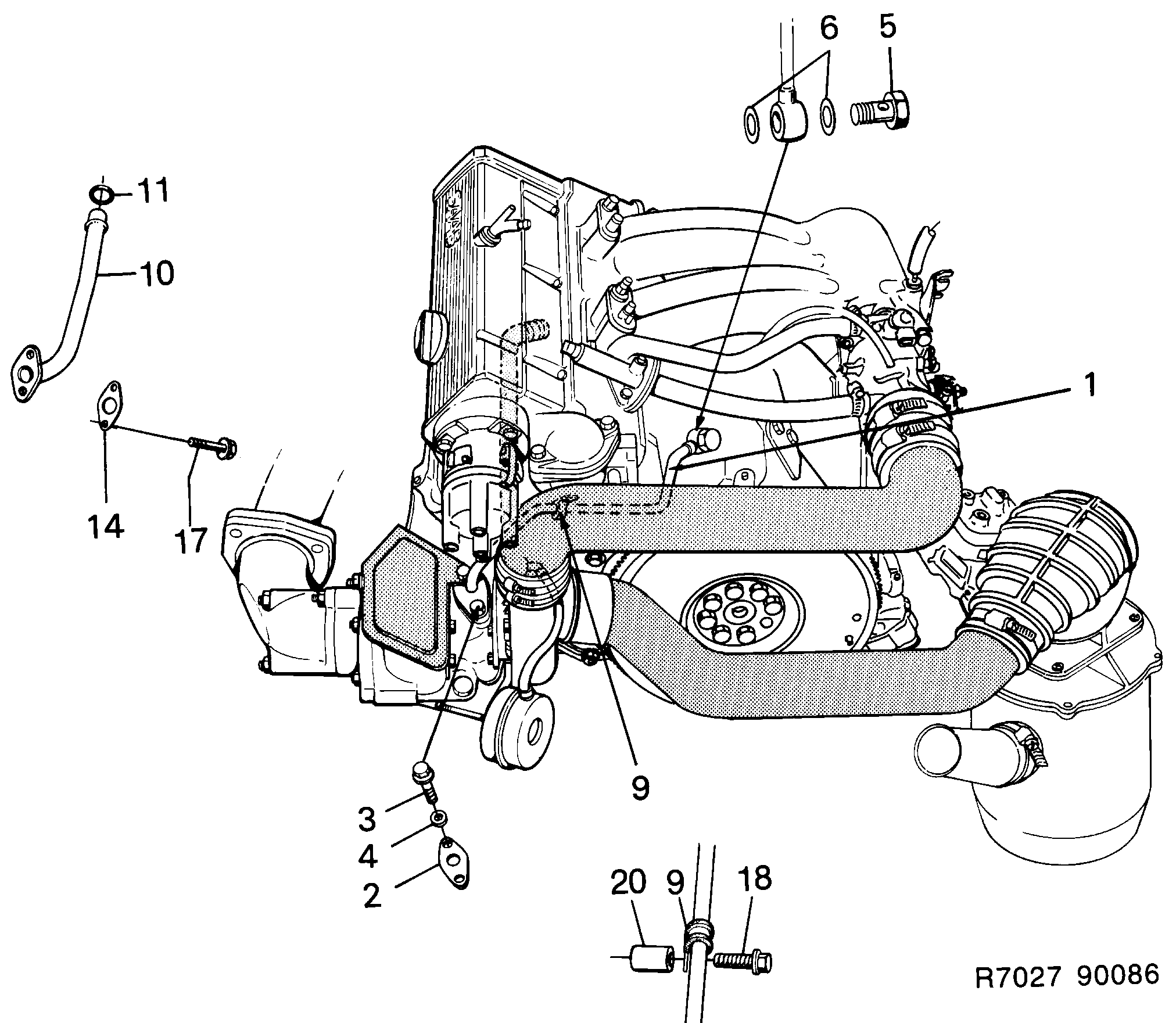

460: Engine - Lubricating system - Oil pipe
(1986 - 1989 | TURBO) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 17 568 Tube 44 | 1 | |
| 1 | 75 05 878 88 59 480 Tube B202 | 1 | |
| 2 | 75 07 700 Gasket 1987-1989 • 44 | 1 | |
| 3 | 81 25 163 Screw 44 | 1 | |
| 4 | 80 29 985 92 153 033 Washer 44 | 2 | |
| 5 | 81 23 903 92 150 977 Banjo screw 44 | 1 | |
| 6 | 81 24 141 92 150 435 Gasket 44 | 2 | |
| 9 | 17 54 506 Clamp 44 | 2 | |
| 10 | 75 05 258 Oil pipe 44 | 1 | |
| 11 | 75 02 263 O-ring 44 | 1 | |
| 14 | 75 18 970 Gasket 44 | 1 | |
| 17 | 81 25 163 Screw 44 | 2 | |
| 18 | 81 25 205 Screw 44 | 1 | |
| 20 | 75 19 481 Spacer sleeve 44 | 1 |
