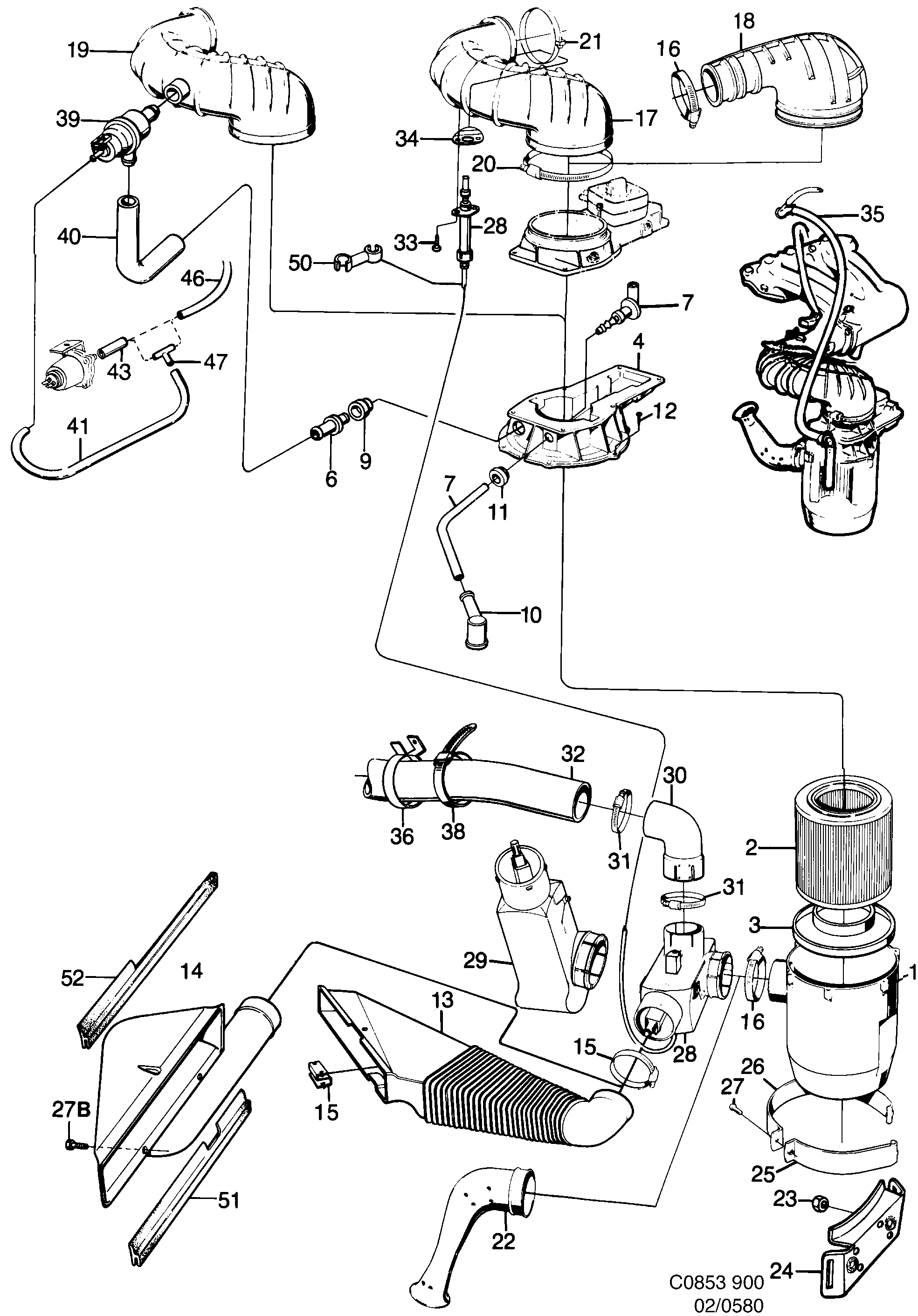

580: Engine - Fuel system - Air cleaner
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 12 999 Air cleaner 03 | 1 | |
| 1 | 83 17 901 Air cleaner LHD • 03 | 1 | |
| 2 | 93 18 502 Air filter 03 | 1 | |
| 3 | 83 17 919 Insert 03 | 1 | |
| 4 | 83 34 831 Adapter 03 | 1 | |
| 4 | 93 03 892 Adapter TURBO | 1 | |
| 7 | 93 03 900 Nipple 03 | 1 | |
| 10 | 83 26 621 Rubber elbow 03 | 1 | |
| 11 | 83 25 656 Bushing 03 | 1 | |
| 12 | 79 22 370 Screw 03 | 6 | |
| 13 | 75 25 801 Tube 03 | 1 | |
| 14 | 75 25 447 Tube 1986-1988 • 03 | 1 | |
| 15 | 93 19 526 Clamp 03 | 4 | |
| 16 | 79 70 148 92 153 079 Hose clamp 03 | 2 | |
| 17 | 93 32 081 Air duct 03 | 1 | |
| 17 | 83 86 351 Connector I | 1 | |
| 18 | 75 32 013 Sleeve TURBO | 1 | |
| 18 | 75 36 642 Air duct 03 • For TURBO with catalytic... | 1 | |
| 19 | 93 46 487 Air inlet LHD • 03 | 1 | |
| 20 | 79 70 189 Clamp 03 | 1 | |
| 21 | 79 70 155 92 153 080 Hose clamp 03 | 1 | |
| 22 | 83 32 918 Snorkel TURBO | 1 | |
| 22 | 75 33 870 Air inlet I • EU with US specification. | 1 | |
| 23 | 80 29 555 81 51 227 Nut 1986-1987 • 03 | 2 | |
| 24 | 92 88 432 Bracket 03 | 1 | |
| 25 | 83 21 044 Tensioning band 03 | 1 | |
| 26 | 83 21 051 Tensioning band 03 | 1 | |
| 27 | 80 19 945 Screw 03 | 1 | |
| 27B | 79 74 769 79 22 891 Screw I | 2 | |
| 28 | 93 31 893 Throttle body 03 | 1 | |
| 29 | 93 03 181 Throttle body 03 | 1 | |
| 30 | 93 03 207 Pipe end 03 | 1 | |
| 31 | 79 70 130 92 153 077 Hose clamp 03 | 2 | |
| 32 | 93 17 991 Hose 03 | 1 | |
| 32 | 93 31 174 Hose 03 | 1 | |
| 32 | 75 29 191 Hose 03 | 1 | |
| 33 | 79 22 289 79 65 684 Screw 03 | 2 | |
| 34 | 93 32 057 Washer 03 | 1 | |
| 35 | 83 26 480 Hose 03 | 1 | |
| 36 | 93 41 173 Clamp 03 | 1 | |
| 38 | 79 71 906 Tensioning band LHD • 03 | 1 | |
| 39 | 93 46 206 Vacuum valve 1986-1988, LHD • 03 | 1 | |
| 40 | 93 46 461 Hose LHD • 03 | 1 | |
| 41 | 91 36 243 Vacuum hose 1986-1988 • 03 • L=650MM | Sold in... | 1 | |
| 43 | 91 36 243 Vacuum hose 1986-1988 • 03 • L=30 MM | Sold... | 1 | |
| 46 | 91 36 243 Vacuum hose 1986-1988 • 03 • L=240 MM | Sold... | 1 | |
| 47 | 83 66 791 12 791 937 Pipe 1986-1988 • 03 | 1 | |
| 50 | 93 45 257 Clip 03 | 2 | |
| 51 | 75 12 890 Seal 1986-1988 • TURBO | 1 | |
| 52 | 75 12 916 Seal 1986-1988 • TURBO | 1 | |
91 36 243 Vacuum hose 03 • L=5000 MM | Sold... | X | ||
79 71 880 11 900 513 Tensioning band 03 • L=259 MM | X |
