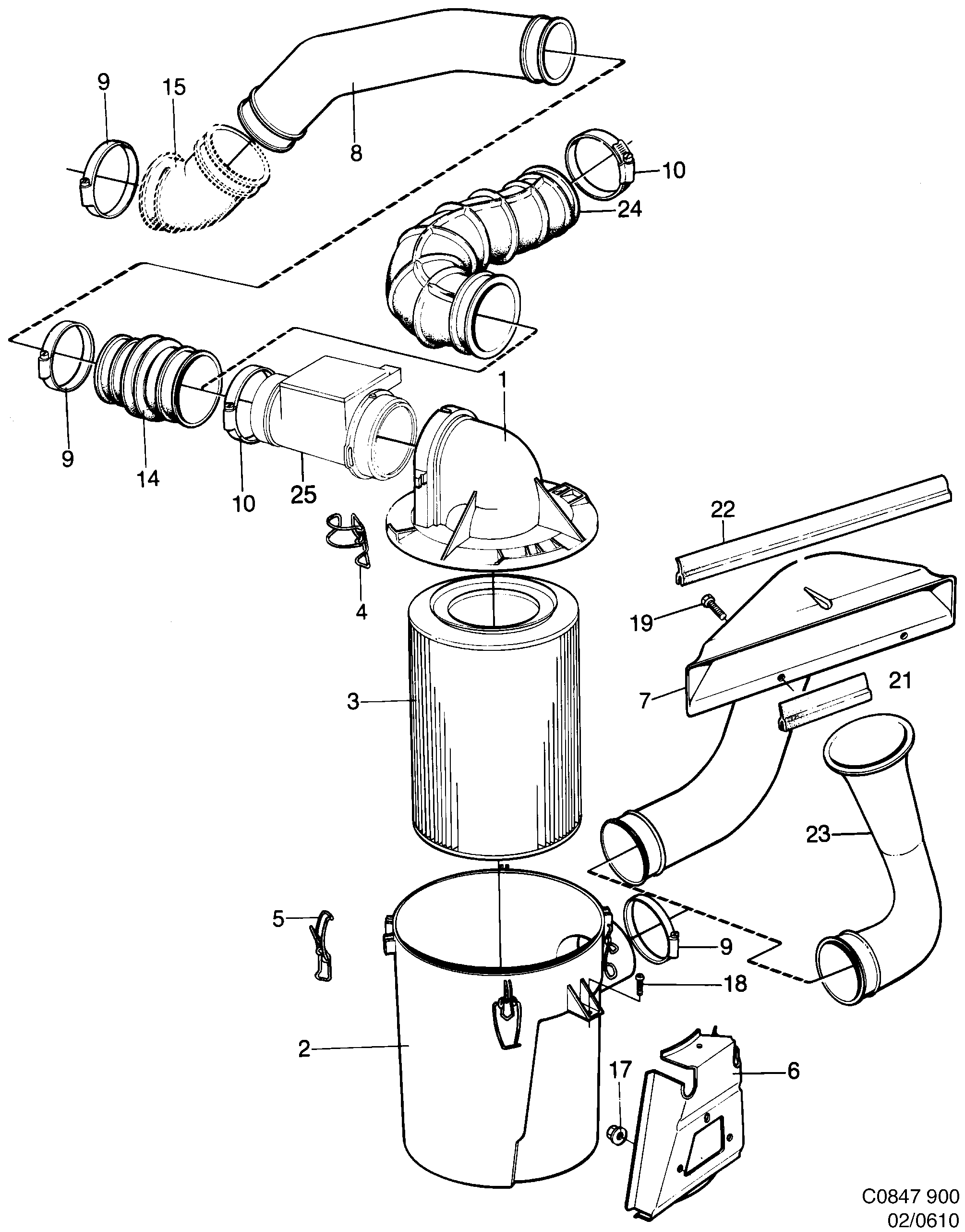

610: Engine - Fuel system - Air cleaner
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 12 957 Air cleaner housing 05 | 1 | |
| 2 | 75 12 973 Air cleaner housing 05 | 1 | |
| 3 | 75 14 722 Air filter 05 | 1 | |
| 4 | 93 75 601 Clamp 05 | 2 | |
| 5 | 93 77 920 Clamp 05 | 4 | |
| 6 | 75 29 159 Retainer 05 | 1 | |
| 7 | 75 25 447 Tube 1986-1988 • TURBO | 1 | |
| 8 | 75 14 615 Intake manifold TURBO | 1 | |
| 9 | 79 70 148 92 153 079 Hose clamp 05 | 2 | |
| 10 | 79 70 155 92 153 080 Hose clamp 05 | 2 | |
| 14 | 75 12 791 Hose 1986-1988 • TURBO | 1 | |
| 15 | 05 | ||
| 17 | 80 29 555 81 51 227 Nut 1986-1987 • 05 | 3 | |
| 18 | 79 72 839 Screw 05 | 1 | |
| 19 | 79 74 769 79 22 891 Screw TURBO | 2 | |
| 21 | 75 28 292 Rubber moulding -1987 • 05 | 1 | |
| 21 | 75 39 125 Rubber moulding 1987- • 05 | 1 | |
| 22 | 75 28 342 Rubber moulding TURBO | 1 | |
| 23 | 75 33 870 Air inlet I | 1 | |
| 24 | 75 25 215 Hose I | 1 | |
| 25 | Mass air flow sensorFuel system 05 |
