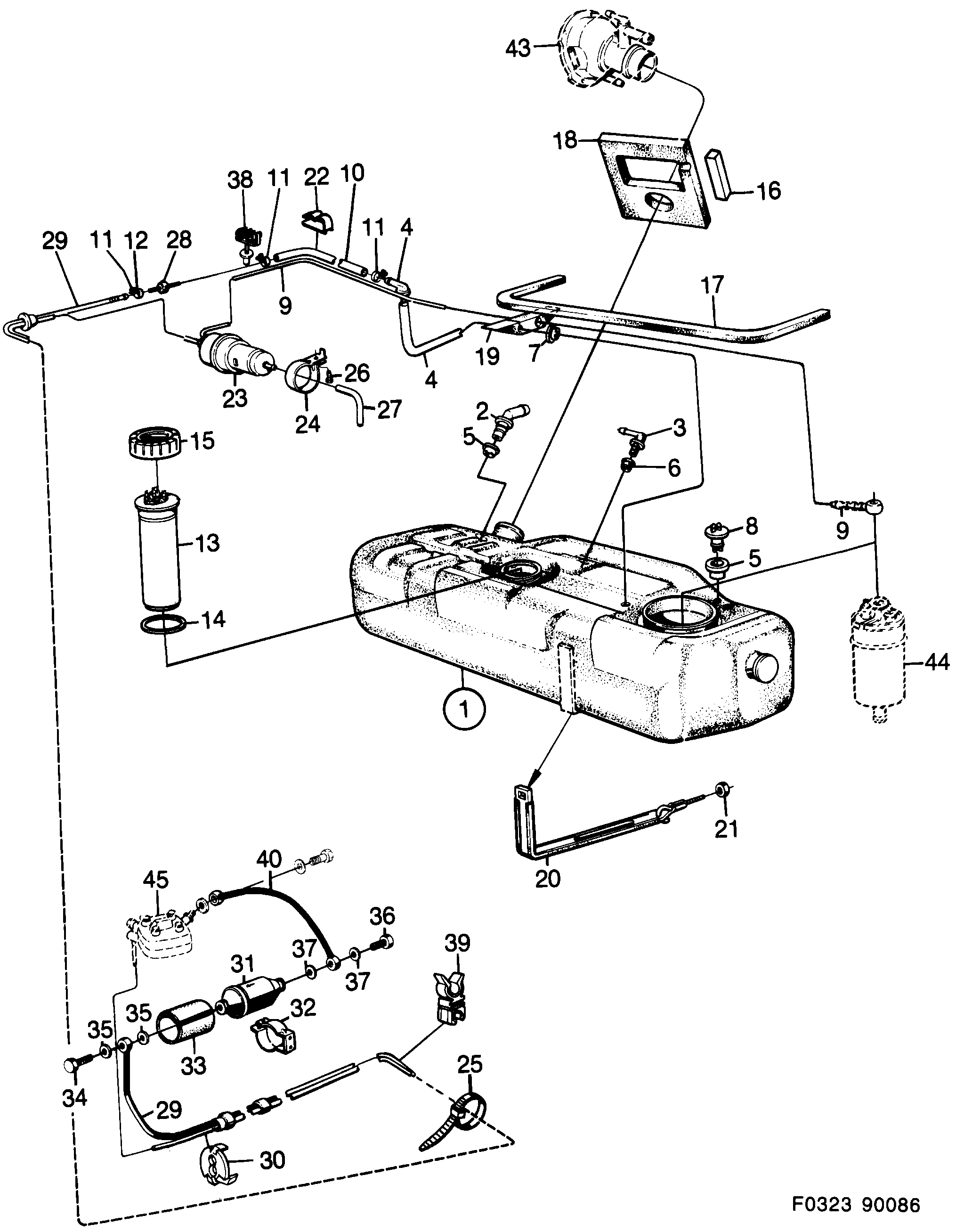

730: Engine - Fuel system - Fuel tank - engine
(1986 - 1988) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 34 597 Tank 1986-1988 • 03 | 1 | |
| 1 | 75 34 605 Tank 1986-1988 • 03 | 1 | |
| 1 | 75 34 621 Tank 1986-1988 • 03 | 1 | |
| 2 | 93 29 491 Nipple 03 | 1 | |
| 3 | 93 28 857 Connector 03 | 1 | |
| 4 | 93 62 211 Return pipe 03 • Part of 75 27... | 1 | |
| 4 | 93 24 138 Nipple 03 • Part of 75 31... | 1 | |
| 4 | 89 77 159 Nipple 03 • Part of 89 76... | 1 | |
| 4 | 89 76 961 Nipple 03 • Part of 89 76... | 1 | |
| 5 | 93 24 021 Bushing 03 | 2 | |
| 6 | 83 25 656 Bushing 03 | 1 | |
| 7 | 83 25 656 Bushing 03 • Part of 75 27... | 1 | |
| 7 | 93 24 021 Bushing 03 | 1 | |
| 8 | Cable harnessWiring and fuses 1987-1987 • 03 | ||
| 9 | 75 13 872 Fuel pipe 03 | 1 | |
| 10 | 93 63 359 Hose 03 • L=715 MM | Manufactured... | 1 | |
| 10 | 89 76 359 Fuel pipe 03 • Used together with 8976425,... | 1 | |
| 11 | 79 68 308 Hose clamp -1988 • 03 | 3 | |
| 12 | 79 75 204 Hose clamp -1988 • 03 | 1 | |
| 13 | 93 61 965 Fuel transmitter 03 | 1 | |
| 14 | 93 92 689 Gasket 1986- • 03 | 1 | |
| 15 | 93 93 950 Nut 03 | 1 | |
| 16 | 85 72 752 Bracket 03 | 2 | |
| 17 | 93 49 929 Seal 03 | 1 | |
| 18 | 93 49 937 Seal 03 | 1 | |
| 19 | 93 29 855 Seal 03 | 1 | |
| 19 | 89 76 375 Seal 03 • Use together with 89... | 1 | |
| 20 | 93 33 600 Tensioning band 03 | 2 | |
| 21 | 80 74 288 11 900 440 Nut 03 | 2 | |
| 22 | 93 49 945 Clip 03 | 2 | |
| 23 | 75 25 181 Fuel accumulator 03 | 1 | |
| 24 | 93 24 815 Clamp 03 | 1 | |
| 25 | 79 71 872 Tensioning band 03 | 3 | |
| 26 | 79 72 565 Screw 1987-1987 • 03 | 1 | |
| 26 | 79 23 014 Screw 1987-1987 • 03 | 1 | |
| 27 | 93 28 899 Protective pipe 03 | 1 | |
| 28 | 75 25 124 Non-return valve -1988 • 03 | 1 | |
| 29 | 75 27 047 Fuel pipe -1988 • 03 | 1 | |
| 29 | 75 26 783 Fuel pipe -1988 • 03 • With catalytic converter. | 1 | |
| 30 | 83 28 346 Bracket 03 | 1 | |
| 31 | 93 28 519 Fuel filter 1987-1987 • 03 | 1 | |
| 31 | 93 33 790 41 63 853 Fuel filter 1987-1988 • 03 | 1 | |
| 32 | 93 29 210 Bracket 1987-1987 • 03 | 1 | |
| 32 | 75 11 793 Bracket 1987- • 03 | 1 | |
| 34 | 83 22 927 12 773 569 Banjo bolt 03 | 1 | |
| 35 | 83 26 712 41 61 162 Seal -1988 • 03 | 2 | |
| 36 | 83 19 915 12 794 638 Banjo bolt 03 | 1 | |
| 37 | 83 26 704 Seal -1988 • 03 | 2 | |
| 38 | 79 63 895 Tube clamp 03 | 2 | |
| 39 | 75 11 256 Clamp 03 | 1 | |
| 40 | 75 26 833 Fuel pipe I, TURBO • FOR | 1 | |
| 40 | 75 26 817 Fuel pipe TURBO | 1 | |
| 43 | Filler pipeFuel system 03 | ||
| 44 | Fuel pumpFuel system 03 | ||
| 45 | Fuel volumeterFuel system 03 | ||
93 62 781 Hose 03 • L=10M | X | ||
88 17 256 | X |
