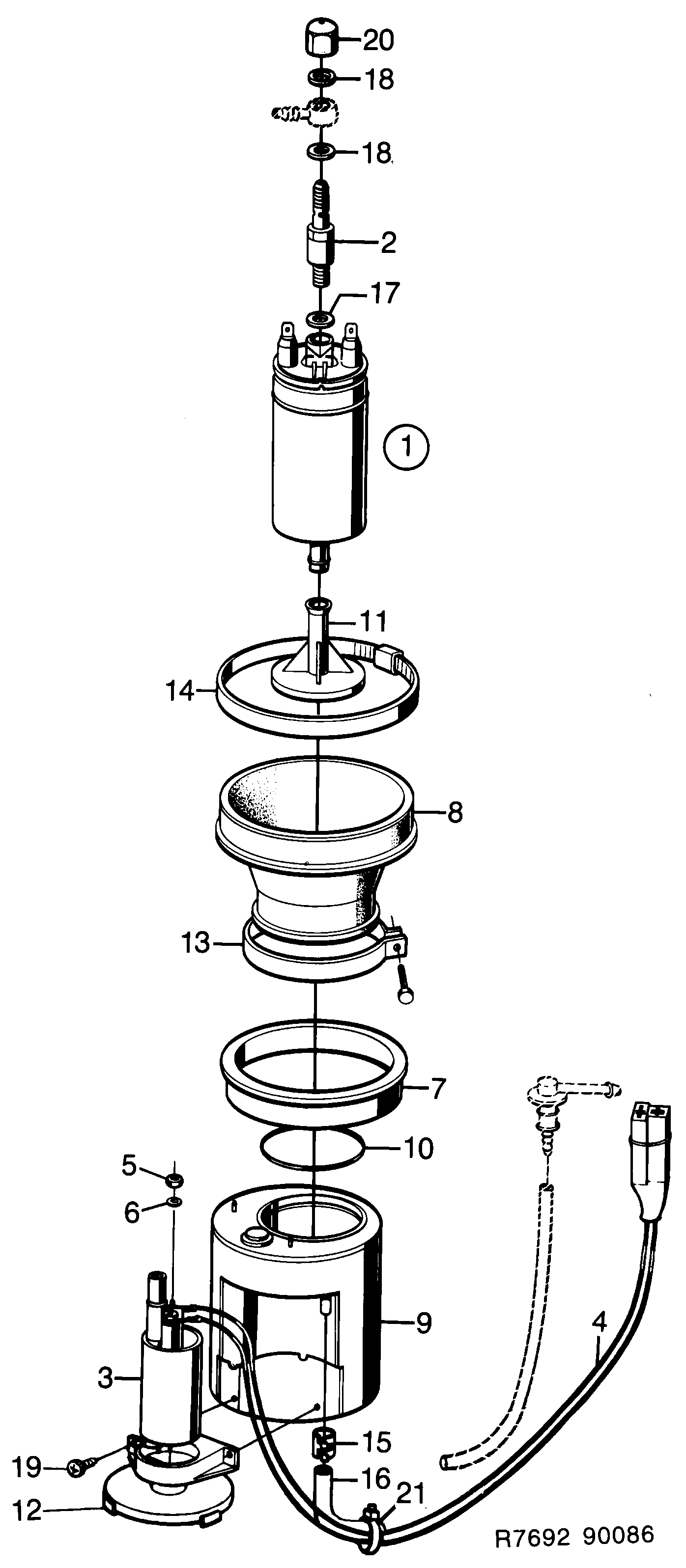

850: Engine - Fuel system - Fuel pump
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 93 935 Fuel pump 1987-1988 • I, TURBO | 1 | |
| 2 | 88 17 553 Valve 05 • PART OF 9367798,9392911 | 1 | |
| 2 | 93 37 510 Valve 05 • PART OF 9393935 | 1 | |
| 3 | 75 26 163 Fuel pump 1986- • 05 | 1 | |
| 4 | 93 63 540 Cable harness 05 • Part of 75 26... | 1 | |
| 5 | 79 73 993 Nut 05 • Part of 75 26... | 2 | |
| 6 | 79 10 516 Washer 05 • Part of 75 26... | 2 | |
| 7 | 93 49 614 Support ring 05 | 1 | |
| 8 | 93 67 756 Collar 05 | 1 | |
| 9 | 93 86 798 Reservoir 05 | 1 | |
| 10 | 93 83 522 O-ring 05 | 1 | |
| 11 | 75 11 082 Strainer 05 | 1 | |
| 12 | 93 86 491 Strainer 05 | 1 | |
| 13 | 93 67 731 Hose clamp 05 | 1 | |
| 14 | 93 31 554 Hose clamp 05 | 1 | |
| 15 | 79 73 522 Hose clamp -1987 • 05 | 1 | |
| 15 | 79 77 879 Hose clamp 1987-1988 • 05 | 1 | |
| 16 | 93 62 260 Return pipe -1987 • 05 | 1 | |
| 16 | 89 75 484 Return pipe 1987-1988 • 05 | 1 | |
| 17 | 93 37 528 Washer 05 | 1 | |
| 18 | 83 26 704 Seal -1988 • 05 | 2 | |
| 19 | 79 73 613 Screw 05 | 2 | |
| 20 | 93 61 668 Cap nut 05 | 1 |
