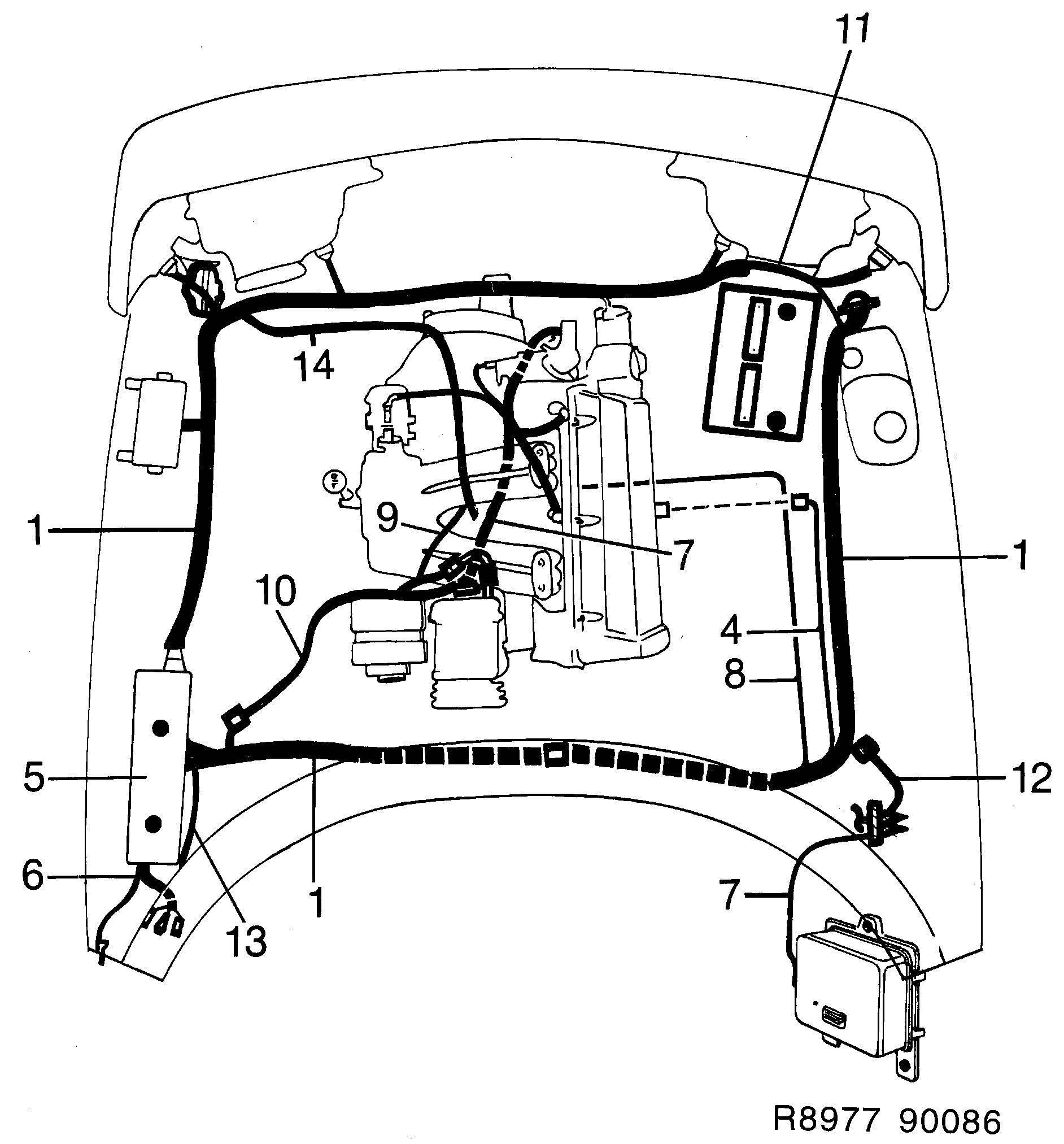

1090: Electrical, general - Wiring and fuses - Front and engine

(1987) | For 900 (1987)

100%

(N°970)

Section 1090

(N°1120)

Pos.	Part No.	Description	Usage	Qty
1	95 57 265 Cable harness C • front	Cable harness	C front	1
1	95 57 257 Cable harness B201C • For cars with integrated...	Cable harness	B201C For cars with integrated...	1
1	95 57 281 Cable harness B201I, TURBO • front	Cable harness	B201I, TURBO front	1
1	95 57 299 Cable harness B202TURBO • front	Cable harness	B202TURBO front	1
1	95 57 307 Cable harness B201I • With catalytic converter. front	Cable harness	B201I With catalytic converter. front	1
1	95 57 315 Cable harness B201TURBO • With catalytic converter. front	Cable harness	B201TURBO With catalytic converter. front	1
1	95 57 398 Cable harness LHD • B201I • front	Cable harness	LHD B201I front	1
1	95 57 406 Cable harness LHD • B202I • front	Cable harness	LHD B202I front	1
1	95 57 414 Cable harness LHD • B202TURBO • front	Cable harness	LHD B202TURBO front	1
1	95 57 422 Cable harness B201I • front	Cable harness	B201I front	1
1	95 57 430 Cable harness B202I • front	Cable harness	B202I front	1
1	95 57 448 Cable harness B202TURBO • front	Cable harness	B202TURBO front	1
1	95 57 364 Cable harness B201I • front	Cable harness	B201I front	1
1	95 57 372 Cable harness B201TURBO • front	Cable harness	B201TURBO front	1
1	95 57 380 Cable harness B202TURBO • front	Cable harness	B202TURBO front	1
4	95 55 897 Cable harness B201	Cable harness	B201	1
5	95 57 455 Cable harness B201 • fuse-relay	Cable harness	B201 fuse-relay	1
5	95 57 463 Cable harness B202 • fuse-relay	Cable harness	B202 fuse-relay	1
5	95 97 253 Cable harness fuse-relay	Cable harness	fuse-relay	1
6	95 57 471 Cable harness B201C, I • main fuse box	Cable harness	B201C, I main fuse box	1
6	95 57 489 Cable harness B201I, TURBO • main fuse box	Cable harness	B201I, TURBO main fuse box	1
6	95 57 497 Cable harness B202 • main fuse box	Cable harness	B202 main fuse box	1
7	95 53 199 Cable harness B202TURBO • engine	Cable harness	B202TURBO engine	1
7	95 53 207 Cable harness B202TURBO, B202I • With catalytic converter. engine	Cable harness	B202TURBO, B202I With catalytic converter. engine	1
8	85 69 386 Cable lambda sond	Cable	lambda sond	1
9	95 55 905 Cable B+	Cable	B+	1
10	85 94 467 Cable harness B201 • AC \| idle speed...	Cable harness	B201 AC \| idle speed...	1
11	95 57 505 Cable harness AC \| idle speed...	Cable harness	AC \| idle speed...	1
12	95 54 841 Cable harness AC \| With recirculation....	Cable harness	AC \| With recirculation....	1
12	95 54 858 Cable harness AC \| Without recirculation....	Cable harness	AC \| Without recirculation....	1
13	95 60 301 Cable harness -1987 • dim-dip	Cable harness	-1987 dim-dip	1
13	95 61 424 Cable harness 1987- • dim-dip	Cable harness	1987- dim-dip	1
14	95 61 804 Cable harness knock sensor	Cable harness	knock sensor	1
