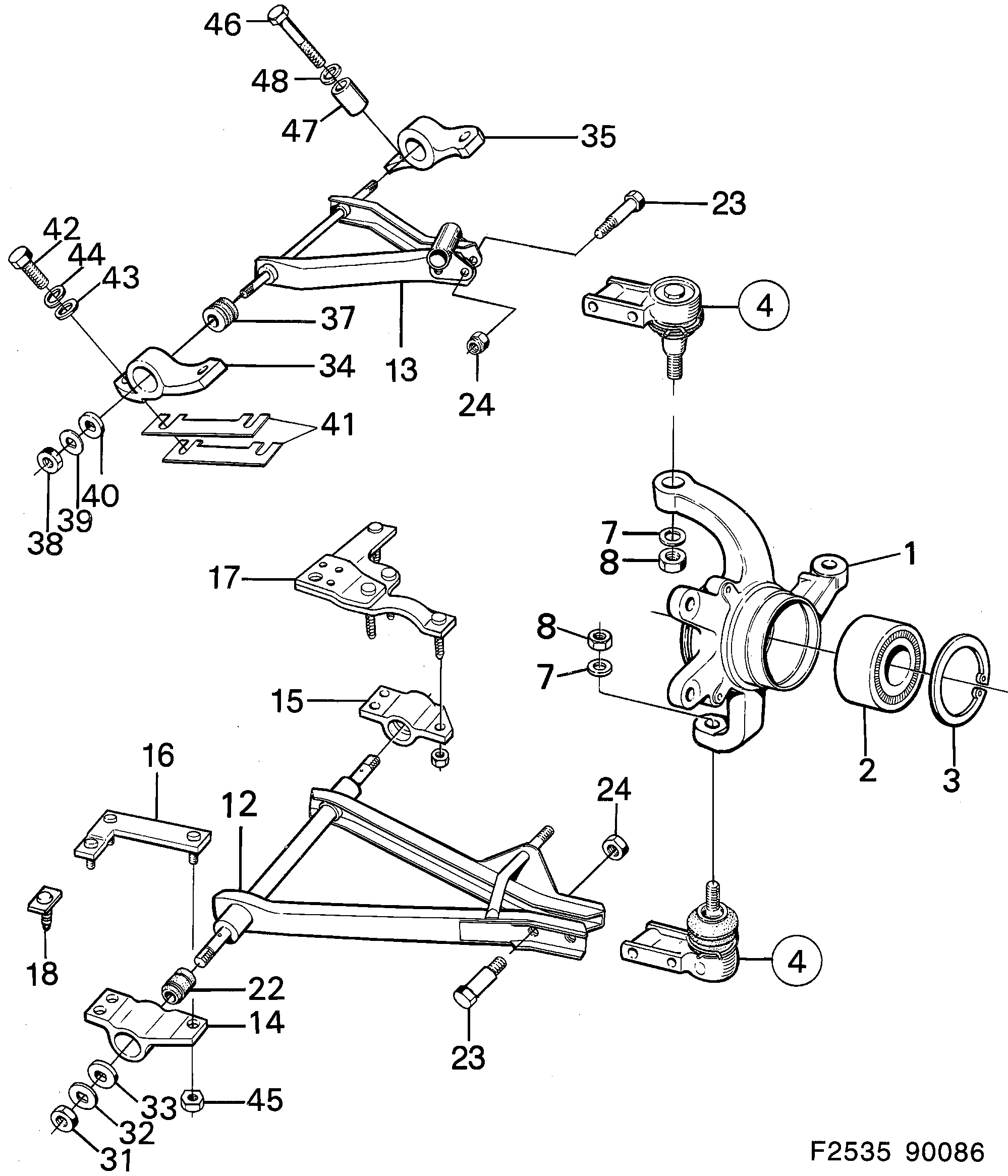

100: Steering

(1986 - 1989) | For 900 (1987)

100%

(N°580)

Section 100

(N°130)

Pos.	Part No.	Description	Usage	Qty
1	89 41 858 Steering knuckle housing 1986-1987 • LH	Steering knuckle housing	1986-1987 LH	1
1	89 41 866 Steering knuckle housing 1986-1987 • RH	Steering knuckle housing	1986-1987 RH	1
1	91 02 096 Steering knuckle housing LH ABS	Steering knuckle housing	LH ABS	1
1	91 02 104 Steering knuckle housing RH ABS	Steering knuckle housing	RH ABS	1
2	89 42 765 30 520 278 Bearing 1986-1987	Bearing	1986-1987	2
3	79 72 581 Retaining ring	Retaining ring		4
4	89 93 321 End piece Kits	End piece Kits		4
7	80 73 124 Washer	Washer		4
8	79 18 733 Lock nut	Lock nut		4
12	89 34 788 Swivel arm LH \| Lower	Swivel arm	LH \| Lower	1
12	89 34 796 Swivel arm RH \| Lower	Swivel arm	RH \| Lower	1
13	89 41 015 Swivel arm LH \| Upper	Swivel arm	LH \| Upper	1
13	89 41 023 Swivel arm RH \| Upper	Swivel arm	RH \| Upper	1
14	89 33 970 Bearing anchorage LH \| Front.	Bearing anchorage	LH \| Front.	1
14	89 33 988 Bearing anchorage RH \| Front.	Bearing anchorage	RH \| Front.	1
15	89 34 002 Bearing anchorage LH \| Rear.	Bearing anchorage	LH \| Rear.	1
15	89 34 010 Bearing anchorage RH \| Rear.	Bearing anchorage	RH \| Rear.	1
16	89 39 274 Bracket LH \| Front.	Bracket	LH \| Front.	1
16	89 39 282 Bracket RH \| Front.	Bracket	RH \| Front.	1
17	89 35 736 Bracket LH \| Rear.	Bracket	LH \| Rear.	1
17	89 35 744 Bracket RH \| Rear.	Bracket	RH \| Rear.	1
18	69 38 823 Bracket 1987-1989 • LH \| Front.	Bracket	1987-1989 LH \| Front.	1
18	69 38 856 Bracket 1987-1989 • RH \| Front.	Bracket	1987-1989 RH \| Front.	1
22	71 84 443 Bushing	Bushing		4
23	89 90 012 Screw	Screw		8
24	79 69 306 Lock nut	Lock nut		8
31	79 04 113 Nut	Nut		4
32	70 71 939 Lock washer	Lock washer		4
33	70 70 642 Washer	Washer		4
34	71 75 441 Bearing anchorage LH \| Front.	Bearing anchorage	LH \| Front.	1
35	71 75 433 Bearing anchorage LH \| Rear.	Bearing anchorage	LH \| Rear.	1
35	73 37 330 Bearing anchorage LH,ALT. TO 7175433 \|...	Bearing anchorage	LH,ALT. TO 7175433 \|...	1
34	71 75 433 Bearing anchorage RH \| Front.	Bearing anchorage	RH \| Front.	1
35	71 75 441 Bearing anchorage RH \| Rear.	Bearing anchorage	RH \| Rear.	1
35	73 37 348 Bearing anchorage RH,ALT. TO 7175441 \|...	Bearing anchorage	RH,ALT. TO 7175441 \|...	1
37	71 63 603 Bushing	Bushing		4
38	79 04 097 Nut	Nut		4
39	70 70 626 Lock washer	Lock washer		4
40	70 70 667 Washer	Washer		4
41	70 71 061 Shim 0,5 MM	Shim	0,5 MM	X
41	70 71 079 Shim 1,0 MM	Shim	1,0 MM	X
41	70 71 087 Shim 2,0 MM	Shim	2,0 MM	X
42	80 83 180 79 78 794 Screw 1986-1988	Screw	1986-1988	7
43	80 73 108 Washer	Washer		7
44	88 02 175 Spring washer	Spring washer		7
45	79 71 765 92 153 201 Nut	Nut		12
46	80 83 222 92 151 521 Screw	Screw		1
47	89 41 403 Spacer tube	Spacer tube		1
48	88 02 175 Spring washer	Spring washer		1
