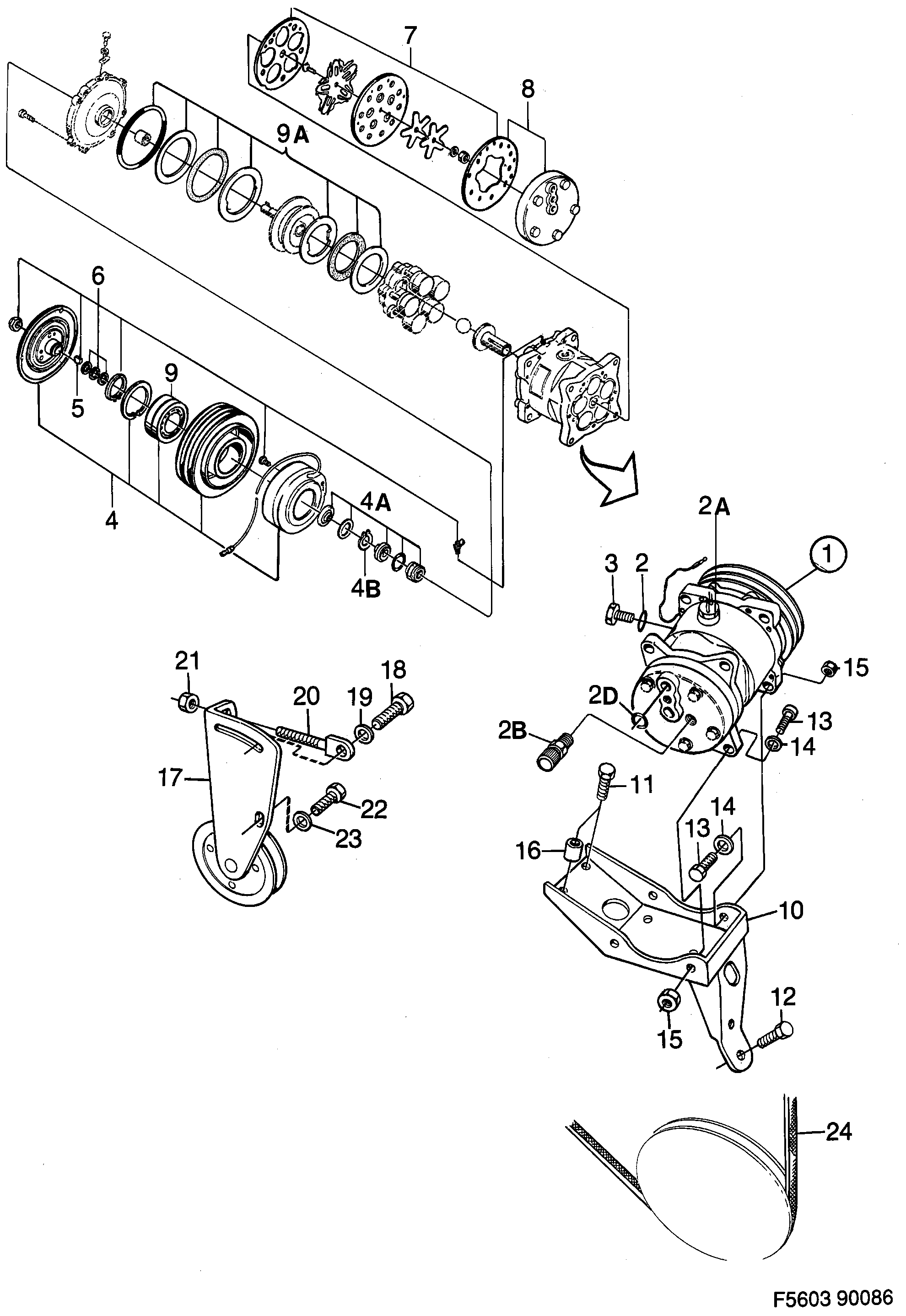

280: Heating and ventilation - AC compressor
(1986 - 1989) | For 900 (1987)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 94 81 516 Compressor 1986-1987 • 05 • (SANDEN) | 1 | |
| 1 | 94 81 979 Compressor 05 • ALT TO 94 81... | 1 | |
Converted AC-systemHeating and ventilation 05 | |||
| 2 | 94 79 486 O-ring 05 • Part of 94 81... | 1 | |
| 2 | 94 82 217 Seal 05 • Part of 94 81... | 1 | |
| 2A | 94 81 995 Switch 05 • Part of 94 81... | 1 | |
| 2B | 94 82 225 Valve 05 • Part of 94 81... | 2 | |
| 2D | 79 72 318 O-ring 05 | 2 | |
| 3 | 94 79 478 Plug 05 • Part of 94 81... | 1 | |
| 3 | 94 82 209 Plug 05 • Part of 94 81... | 1 | |
| 4 | 94 81 037 Clutch 05 • Part of 94 81... | 1 | |
| 4 | 94 81 987 Clutch 05 • Part of 94 81... | 1 | |
| 4A | 94 82 357 | 1 | |
| 4A | 40 74 944 Sealing kit 05 • Part of 94 81... | 1 | |
| 4B | 94 82 381 Retaining ring 05 • Part of 94 81... | 1 | |
| 5 | 94 79 726 Key 05 • Part of 94 81... | 1 | |
| 6 | 94 79 734 Accessories kit 05 • Part of 94 81... | 1 | |
| 7 | 94 79 742 Gasket kit 05 • Part of 94 81... | 1 | |
| 8 | 94 81 052 Cylinder head 05 • Part of 94 81... | 1 | |
| 9 | 94 80 856 Ball bearing 05 • Part of 94 81... | 1 | |
| 9A | 97 46 827 | 1 | |
| 10 | 93 65 834 Bracket 1986-1987 • 05 | 1 | |
| 11 | 80 98 113 Screw 05 | 2 | |
| 12 | 93 39 615 Screw 05 | 1 | |
| 13 | 79 75 030 Screw 05 | 4 | |
| 14 | 80 73 108 Washer 05 | 4 | |
| 15 | 79 67 979 Nut 05 | 4 | |
| 16 | 83 56 859 Sleeve 05 | 2 | |
| 17 | 75 42 228 Tension pulley 05 | 1 | |
| 18 | 80 82 968 55 562 873 Screw 05 | 1 | |
| 19 | 80 29 985 92 153 033 Washer 05 | 1 | |
| 20 | 75 12 247 42 83 198 Screw 05 | 1 | |
| 21 | 80 74 288 11 900 440 Nut 05 | 1 | |
| 22 | 80 82 943 Screw 05 | 1 | |
| 23 | 80 73 249 55 564 926 Washer 05 | 1 | |
| 24 | 93 67 020 Belt, v ribbed 05 | 1 | |
94 82 043 Oil 05 • FOR SEIKO-SEIKI | 1 | ||
96 98 002 | X |
