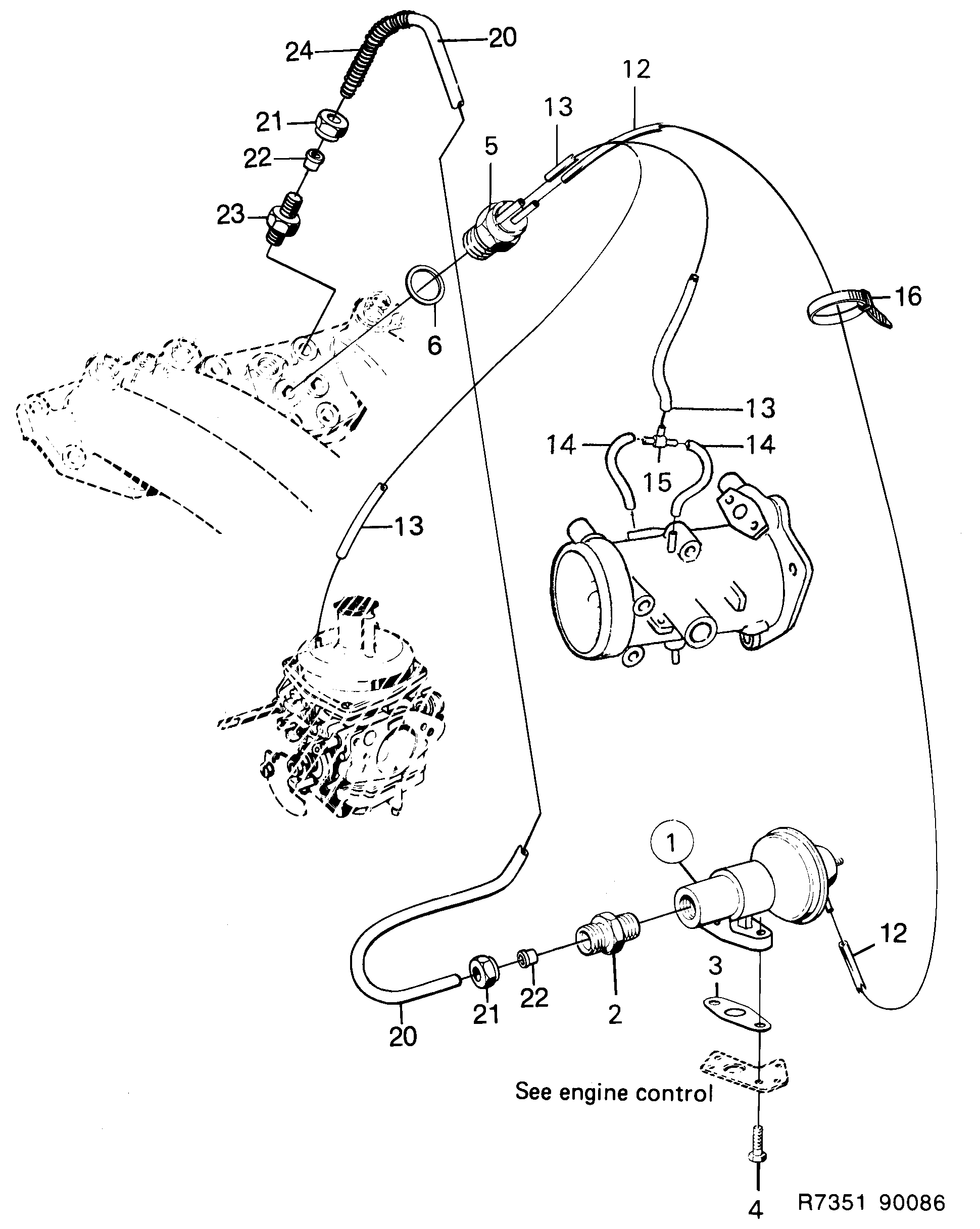

1450: Engine - Intake and exhaust system - EGR system
(1986 - 1988) | For 900 (1988)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 50 208 Exhaust gas recirculation valve 01 • Blue | 1 | |
| 1 | 93 50 216 Exhaust gas recirculation valve I • Red | 1 | |
| 1 | 93 50 224 Exhaust gas recirculation valve TURBO, C • Green. | 1 | |
| 2 | 93 51 495 Nipple TURBO, C | 1 | |
| 2 | 93 51 503 Nipple I | 1 | |
| 3 | 83 57 485 75 07 973 Gasket 01 | 1 | |
| 4 | 80 19 929 Screw 01 | 2 | |
| 5 | 93 14 162 Valve 01 | 1 | |
| 6 | 81 24 141 92 150 435 Gasket 01 | 1 | |
| 12 | 91 36 243 Vacuum hose C, I, TURBO • L=170 MM | 1 | |
| 13 | 91 36 243 Vacuum hose 01 • L=360 MM | Sold... | 1 | |
| 14 | 91 36 243 Vacuum hose 01 • L=60 MM | Sold... | 2 | |
| 15 | 83 66 791 12 791 937 Pipe 01 | 2 | |
| 16 | 79 71 906 Tensioning band 01 | 1 | |
| 20 | 75 19 325 EGR-pipe 01 | 1 | |
| 21 | 81 28 969 Nut 01 | 2 | |
| 22 | 81 32 235 Ferrule 01 | 2 | |
| 23 | 81 31 989 Nipple 01 | 1 | |
| 24 | 93 59 688 Protection 01 | 1 | |
91 36 243 Vacuum hose 01 • L=5000 MM | Sold... | X |
