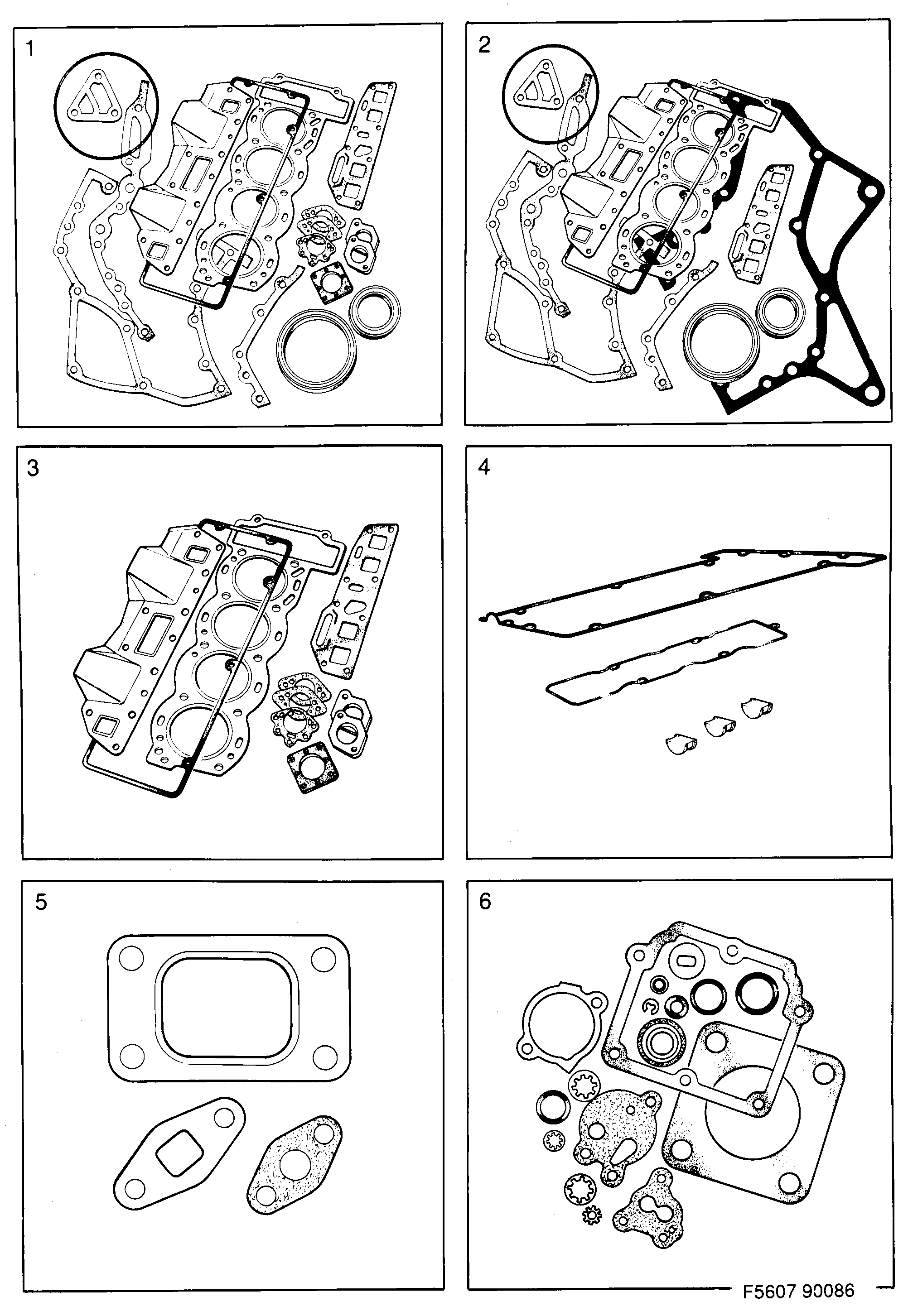

2200: Engine - Kits - Engine
(1986 - 1989) | For 900 (1988)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 37 213 Gasket kit C, T | X | |
75 85 037 Gasket | 1 | ||
93 55 991 Gasket | 1 | ||
75 89 039 Gasket | 1 | ||
93 50 158 55 557 240 Seal | 1 | ||
93 09 204 55 557 231 Seal | 1 | ||
75 63 646 93 21 795 Gasket | 1 | ||
91 17 839 Gasket | 1 | ||
75 69 346 Gasket | 1 | ||
75 61 772 Gasket | 1 | ||
75 66 433 Gasket | 1 | ||
83 69 829 30 543 193 Seal | 1 | ||
75 88 981 Gasket | 1 | ||
75 88 916 Gasket T | 2 | ||
83 74 639 Gasket C | 1 | ||
83 36 877 Gasket T | 2 | ||
| 2 | 93 37 221 Gasket kit B201TURBO, B201I | X | |
75 63 653 93 21 795 Gasket (7509375) | 1 | ||
91 17 847 93 21 795 Gasket | 1 | ||
75 82 315 Gasket (9307265) | 1 | ||
| 3 | 93 37 239 Gasket kit C, T | X | |
| 3 | 93 37 247 Gasket kit B201I | X | |
| 3 | 93 37 254 Gasket kit B201TURBO | X | |
93 14 139 Gasket | 1 | ||
83 66 262 Gasket | 1 | ||
81 24 141 92 150 435 Gasket GUIDE TUBE | 1 | ||
83 61 842 75 88 940 Gasket | 2 | ||
83 61 859 75 88 957 Gasket | 1 | ||
75 18 996 Gasket | 1 | ||
75 85 045 91 81 348 Gasket | 1 | ||
88 17 512 Gasket kit | 1 | ||
75 15 190 95 49 593 Bushing | 1 | ||
74 80 429 Nipple | 6 | ||
74 80 437 Nipple | 2 | ||
74 80 445 Nipple | 1 | ||
74 80 452 Nipple | 1 | ||
74 80 460 Nipple | 1 | ||
75 84 436 Gasket | 1 | ||
| 3 | 88 19 823 Gasket kit 1988-1988 • B202 | X | |
88 18 254 88 22 041 Gasket kit | 1 | ||
74 84 405 91 81 348 Gasket | 1 | ||
| 3 | 88 19 831 Gasket kit 1988-1988 • B202 | X | |
75 20 380 Gasket | 1 | ||
93 59 647 Gasket | 1 | ||
75 00 069 Plug | 3 | ||
75 88 056 55 555 635 Gasket | 1 | ||
75 23 962 55 555 634 Gasket | 1 | ||
| 5 | 88 17 264 Gasket kit TURBO | X | |
23 03 279 75 07 700 Gasket | 1 | ||
93 00 476 75 18 970 Gasket | 1 | ||
| 6 | 83 64 234 Gasket kit C • (SOLEX) | X | |
83 51 348 Washer | 1 | ||
83 05 419 Washer | 1 | ||
83 05 336 Star washer | 2 | ||
83 08 652 Gasket | 1 | ||
83 09 098 Star washer | 2 | ||
83 09 064 Seal | 1 | ||
83 09 072 Seal | 1 | ||
83 05 773 O-ring | 1 | ||
83 05 849 Gasket FLOAT CHAMBER | 1 | ||
83 05 823 Washer NEEDLE VALVE | 1 | ||
83 66 643 Gasket | 1 | ||
83 05 484 Washer | 2 | ||
83 66 650 O-ring | 1 | ||
83 66 668 Retaining ring DAMP PISTON | 1 | ||
83 66 676 Washer | 1 |
