Where to find the exploded diagram for Fuel system on my Saab 900 1988?

Accepted Answer

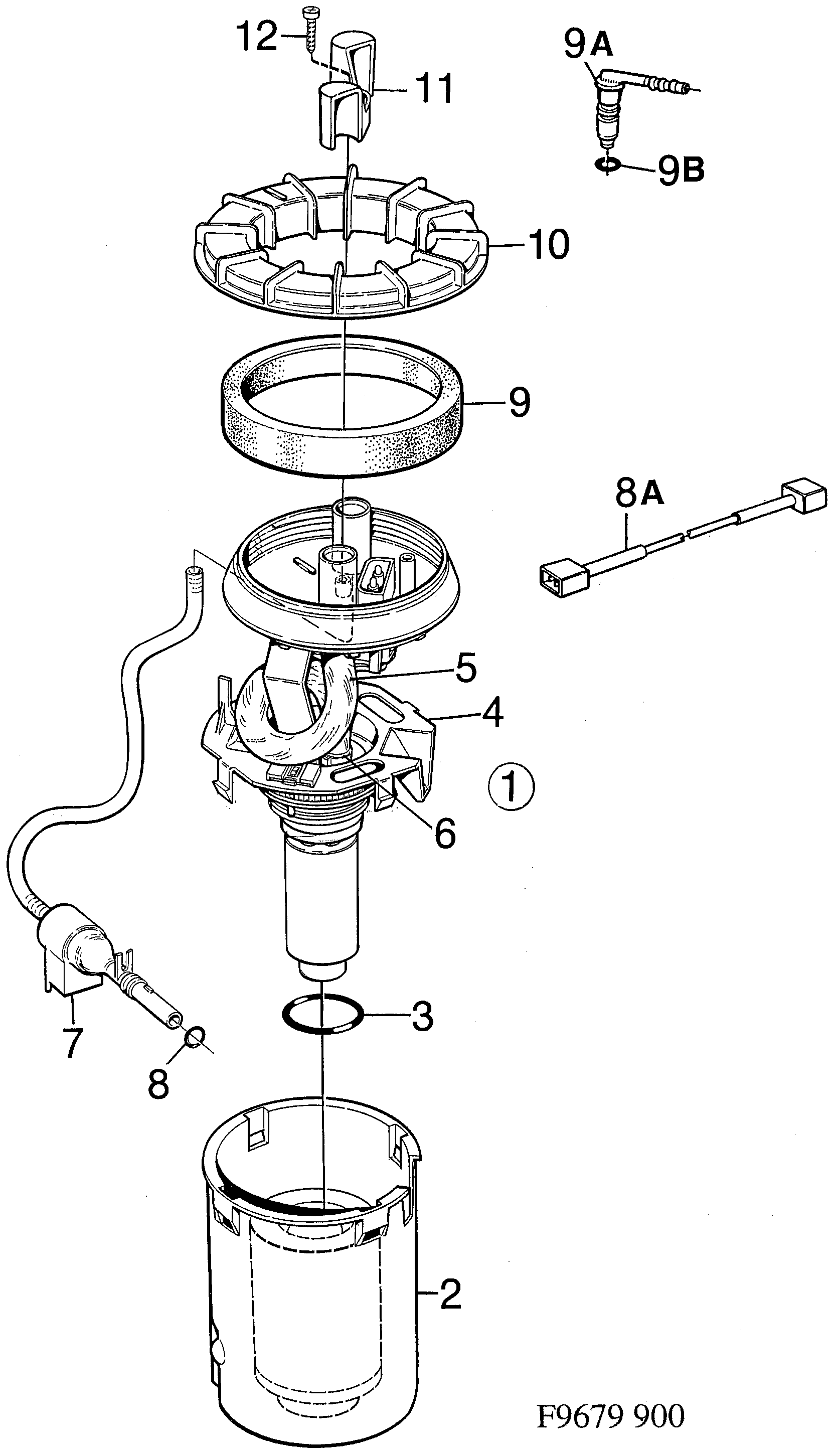

Find on Saabiste.net the complete and official interactive technical diagram for Fuel system on Saab 900 1988. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Fuel system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Fuel system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Fuel system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Fuel system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
1	89 81 664 Fuel pump 1986-1988 • I	Fuel pump	1986-1988 I	1
2	89 80 021 Reservoir 1986-1988 • I	Reservoir	1986-1988 I	1
3	75 91 902 O-ring 1986-1988 • I	O-ring	1986-1988 I	1
4	89 80 039 Fuel pump 1986-1988 • I • Not as separate spare...	Fuel pump	1986-1988 I Not as separate spare...	1
5	40 19 998 Hose 1986-1988 • I	Hose	1986-1988 I	1
6	79 68 308 Hose clamp 1986-1988 • I	Hose clamp	1986-1988 I	2
7	89 80 047 Ejector unit 1986-1988 • I	Ejector unit	1986-1988 I	1
8	93 94 602 O-ring 1986-1988 • I	O-ring	1986-1988 I	1
8A	43 93 476 Connection 06 • PART OF 4161493	Connection	06 PART OF 4161493	1
9	93 94 529 Seal I	Seal	I	1
10	93 94 503 Cover I	Cover	I	1
11	93 94 628 Lock brace I	Lock brace	I	1
12	79 71 344 Screw I	Screw	I	1
	Hose kitKits 06	Hose kitKits 06			X

Pos.	Part No.	Description	Usage	Qty
1	89 81 664 Fuel pump 1986-1988 • I	Fuel pump	1986-1988 I	1
2	89 80 021 Reservoir 1986-1988 • I	Reservoir	1986-1988 I	1
3	75 91 902 O-ring 1986-1988 • I	O-ring	1986-1988 I	1
4	89 80 039 Fuel pump 1986-1988 • I • Not as separate spare...	Fuel pump	1986-1988 I Not as separate spare...	1
5	40 19 998 Hose 1986-1988 • I	Hose	1986-1988 I	1
6	79 68 308 Hose clamp 1986-1988 • I	Hose clamp	1986-1988 I	2
7	89 80 047 Ejector unit 1986-1988 • I	Ejector unit	1986-1988 I	1
8	93 94 602 O-ring 1986-1988 • I	O-ring	1986-1988 I	1
8A	43 93 476 Connection 06 • PART OF 4161493	Connection	06 PART OF 4161493	1
9	93 94 529 Seal I	Seal	I	1
10	93 94 503 Cover I	Cover	I	1
11	93 94 628 Lock brace I	Lock brace	I	1
12	79 71 344 Screw I	Screw	I	1
	Hose kitKits 06	Hose kitKits 06			X
