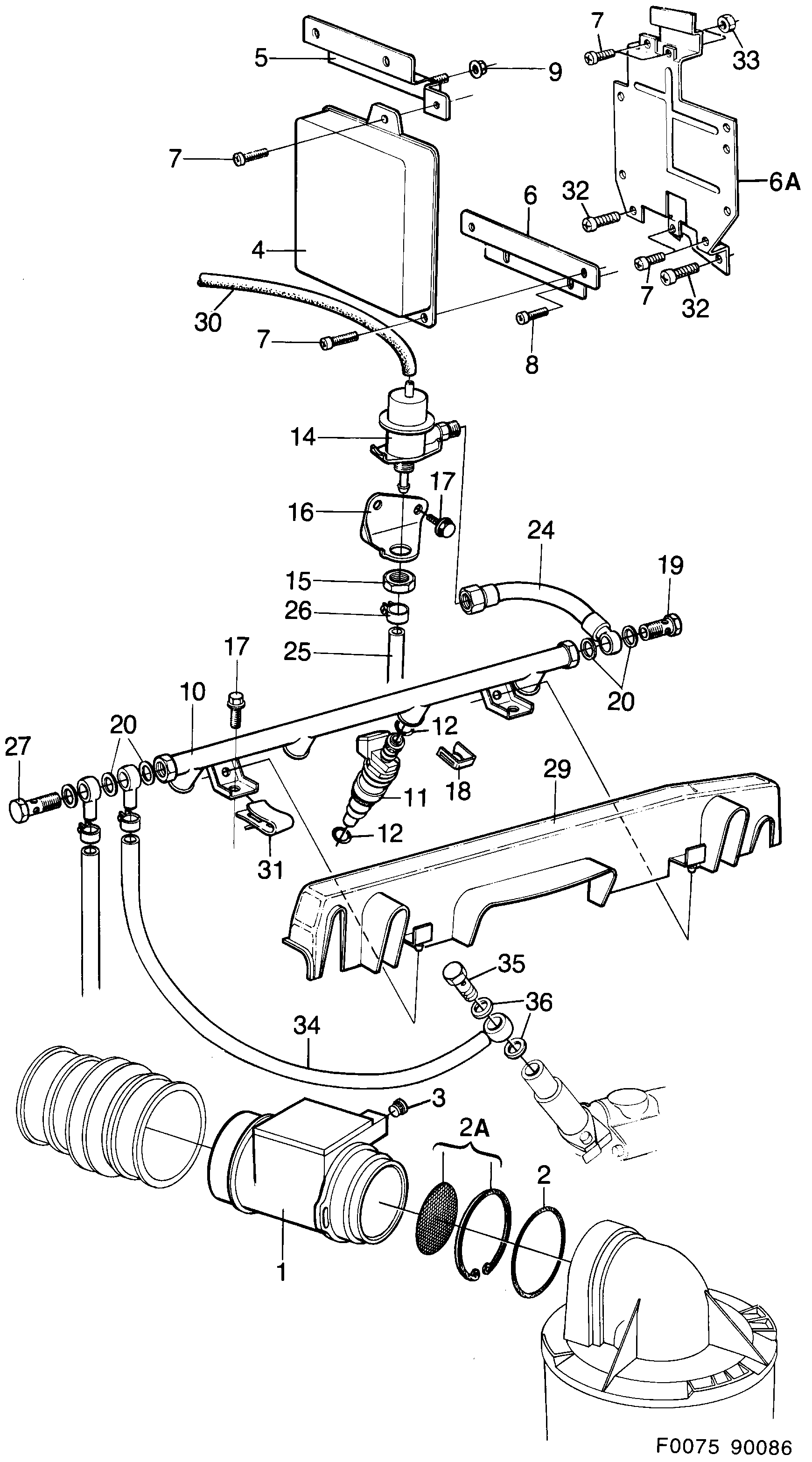

940: Engine - Fuel system - Mass air flow sensor
(1986 - 1989) | For 900 (1988)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 2A | 75 35 446 Service kit 05 | 1 | |
| 1 | 75 38 655 Mass air flow sensor 1988-1989 • 05 • For I with catalytic... | 1 | |
| 2 | 79 74 306 O-ring 05 | 1 | |
| 3 | 75 25 710 Plug 05 | 1 | |
| 4 | 75 36 683 Electronic unit 1987-1988 • TURBO • Also available as exchange... | 1 | |
| 4 | 75 36 709 Electronic unit 1987-1988 • 05 • For TURBO with catalytic... | 1 | |
| 4 | 75 38 689 Electronic unit 1988-1988 • 05 • For I with catalytic... | 1 | |
| 6A | 75 36 691 Bracket 1988-1989 • I | 1 | |
| 7 | 79 77 283 Screw 1988-1989 • 05 • For I with catalytic... | 4 | |
| 8 | 79 75 048 Screw 05 | 2 | |
| 9 | 79 73 365 92 150 136 Nut 05 | 2 | |
| 10 | 75 06 611 Tube 05 | 1 | |
| 12 | 75 61 210 O-ring 05 | 9 | |
| 14 | 75 68 041 Regulator 1987-1989 • 05 • Without catalytic converter. | 1 | |
| 14 | 75 64 123 Regulator 05 • For I with catalytic... | 1 | |
| 15 | 80 50 767 81 51 177 Nut 1986-1988 • 05 | 1 | |
| 16 | 75 02 487 Bracket 05 | 1 | |
| 17 | 81 25 148 Screw 05 | 4 | |
| 18 | 93 56 486 Clamp 05 | 4 | |
| 19 | 81 23 895 92 150 976 Screw 05 | 1 | |
| 20 | 83 26 704 Seal -1988 • 05 | 4 | |
| 20 | 89 77 373 44 43 883 Seal 1988-1988 • 05 | 4 | |
| 20 | 89 81 979 44 43 883 Seal 1988- • 05 | 4 | |
| 25 | 75 11 702 Hose 05 | 1 | |
| 26 | 79 68 308 Hose clamp 05 | 2 | |
| 27 | 83 19 915 12 794 638 Banjo bolt 05 | 1 | |
| 30 | 91 36 243 Vacuum hose 05 • L=565 MM | For... | 1 | |
| 32 | 79 22 818 Screw 05 | 2 | |
| 33 | 79 73 365 92 150 136 Nut 05 | 2 | |
91 36 243 Vacuum hose 05 • L=5000 MM | Sold... | X |
