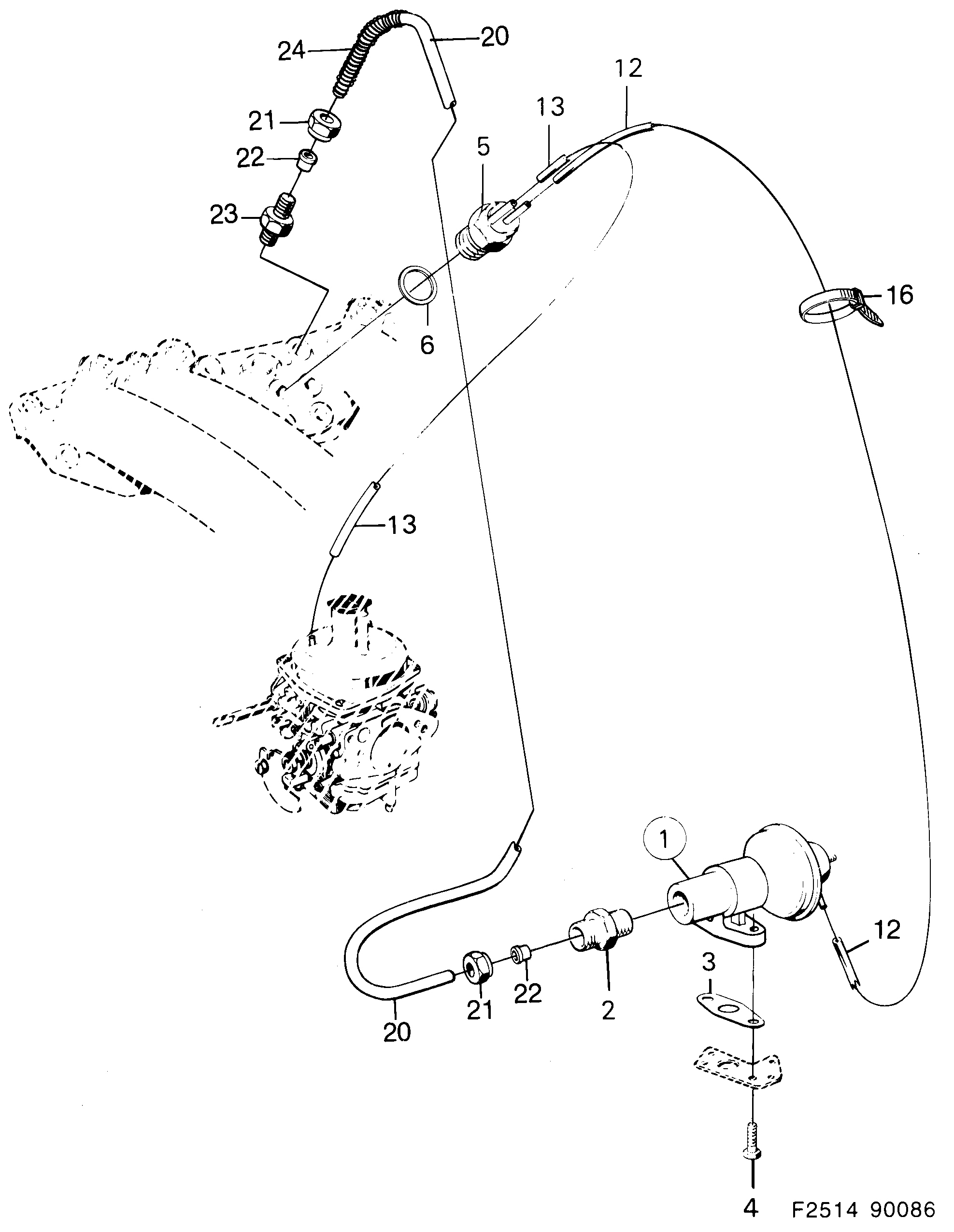

1480: Engine - Intake and exhaust system - EGR system
(1989) | For 900 (1989)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 50 224 Exhaust gas recirculation valve 02 | 1 | |
| 2 | 93 51 495 Nipple 02 | 1 | |
| 3 | 75 07 973 Gasket 02 | 1 | |
| 4 | 80 19 929 Screw 02 | 2 | |
| 5 | 93 14 162 Valve 02 | 1 | |
| 6 | 83 26 712 41 61 162 Seal 02 | 1 | |
| 12 | 75 04 210 Hose 02 | 1 | |
| 13 | 75 04 053 Hose 02 | 1 | |
| 16 | 18 00 259 Tensioning band 02 | 1 | |
| 20 | 75 04 012 Tube 02 | 1 | |
| 21 | 81 45 559 Nut 02 | 2 | |
| 22 | 81 32 235 Ferrule 02 | 2 | |
| 23 | 81 31 989 Nipple 02 | 1 | |
| 24 | 75 04 046 Protection 02 | 1 |
