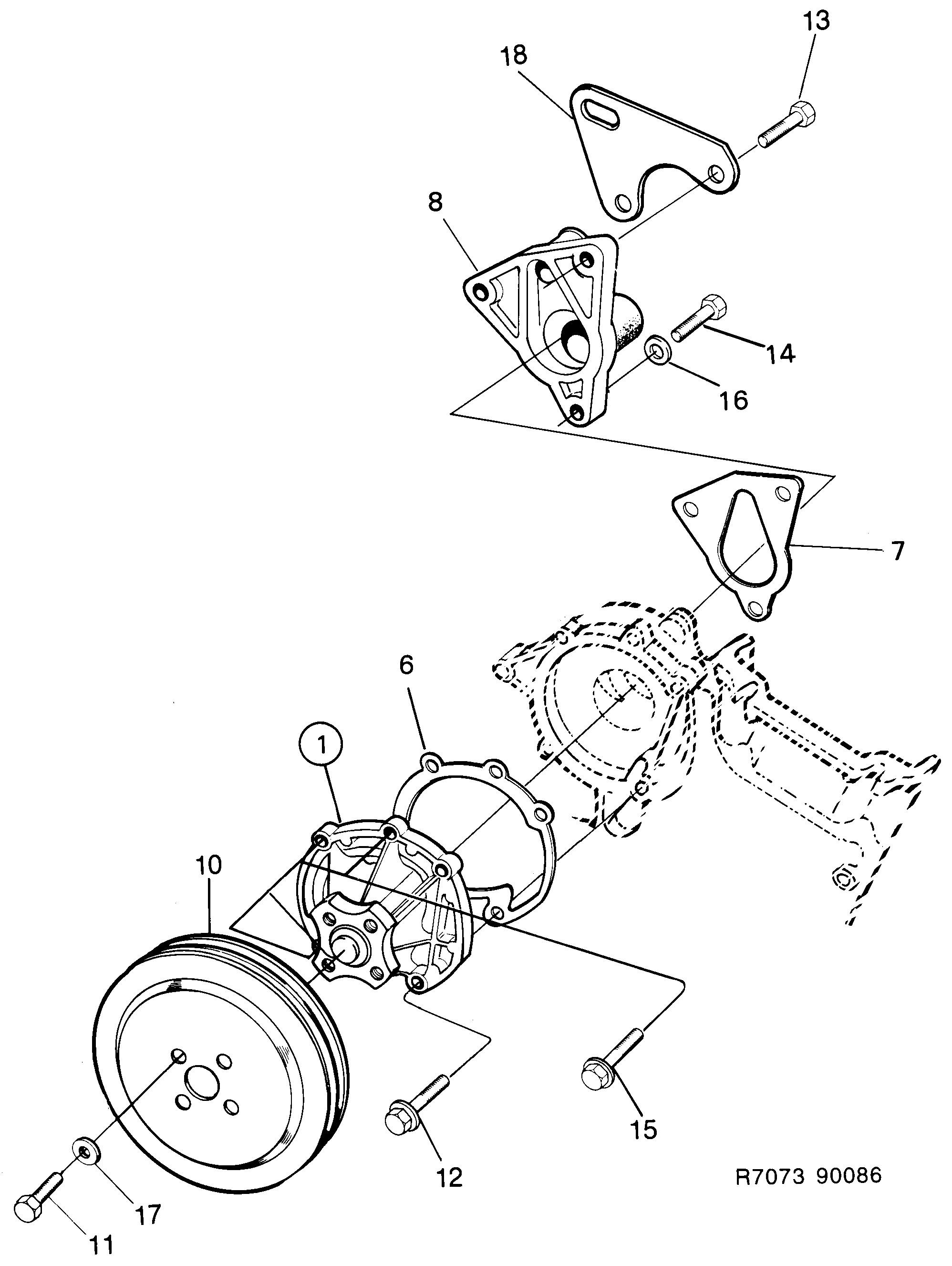

1990: Engine - Cooling system - Coolant pump
(1986 - 1989) | For 900 (1989)
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 88 17 900 Coolant pump Also available as exchange... | 1 | |
| 6 | 75 66 516 Gasket 1987-1989 | 1 | |
| 7 | 75 63 687 Gasket 1987-1989 | 1 | |
| 8 | 93 55 181 Cover | 1 | |
| 10 | 75 01 943 Pulley | 1 | |
| 11 | 80 19 903 79 85 930 Screw | 4 | |
| 12 | 81 25 262 Screw | 2 | |
| 13 | 80 83 941 Screw | 2 | |
| 14 | 80 82 976 80 83 933 Screw 1989-1989 | 1 | |
| 15 | 81 25 197 Screw | 3 | |
| 16 | 80 29 985 92 153 033 Washer | 1 | |
| 17 | 80 73 223 Washer | 4 | |
| 18 | 93 13 222 Brace | 1 |
