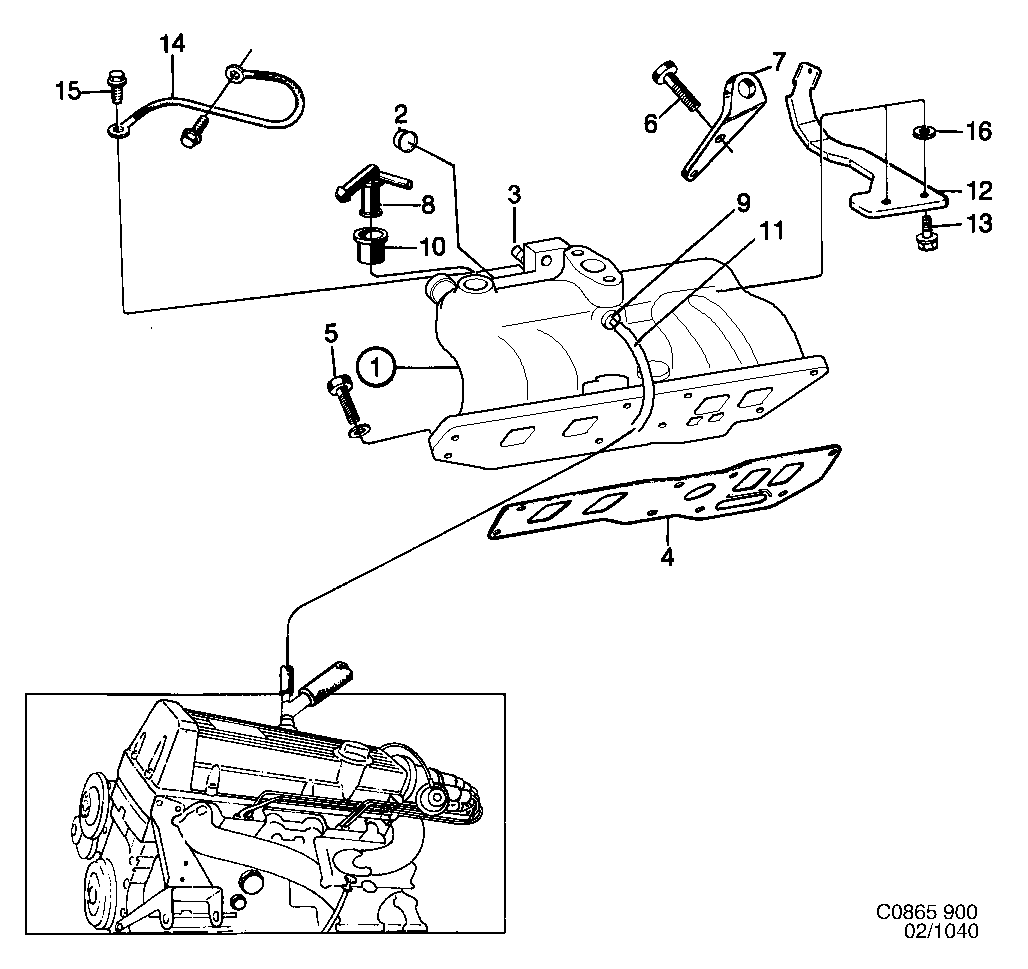

1040: Engine - Intake and exhaust system - Intake manifold
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 81 440 Intake manifold 02 | 1 | |
| 2 | 81 23 168 Plug 02 | 1 | |
| 3 | 93 59 480 Stud 02 | 4 | |
| 4 | 75 69 346 Gasket 02 | 1 | |
| 5 | 81 25 197 Screw 02 | 6 | |
| 6 | 81 25 205 Screw 02 | 2 | |
| 7 | 75 61 509 Lifting eye 02 | 1 | |
| 8 | 93 12 802 Nipple 02 | 1 | |
| 9 | 83 08 850 Nipple 02 | 1 | |
| 10 | 75 15 208 Bushing 02 | 1 | |
| 11 | 91 36 243 Vacuum hose 02 • L=215 MM | Sold... | 1 | |
| 12 | 75 64 057 Bracket 02 | 1 | |
| 13 | 81 25 007 Screw 02 | 2 | |
| 14 | 75 64 859 Cable 02 | 1 | |
| 15 | 80 97 859 Screw 02 | 1 | |
| 16 | 75 85 581 Spacer 02 | 2 | |
91 36 243 Vacuum hose 02 • L=5000 MM | Sold... | X |
