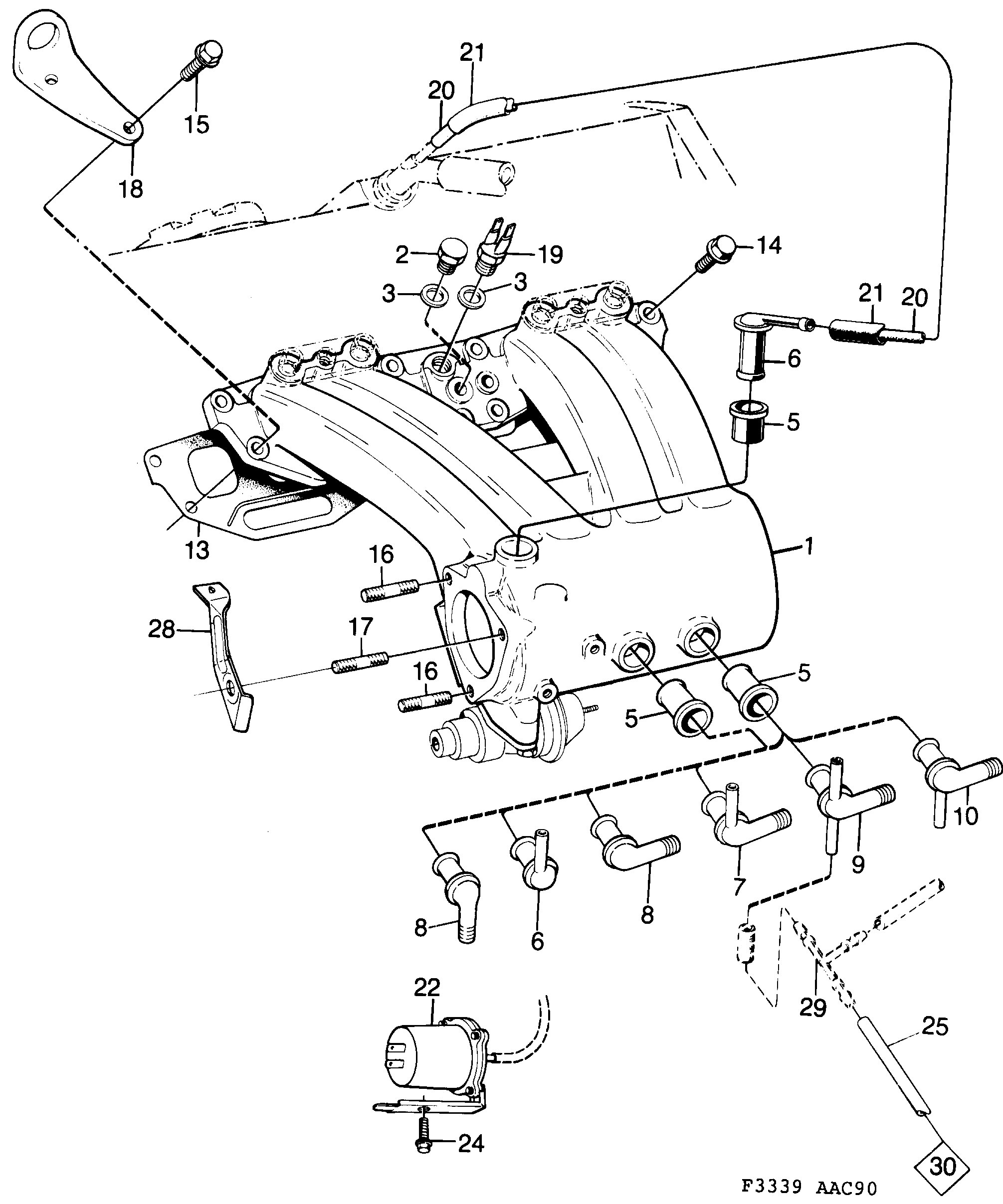

1070: Engine - Intake and exhaust system - Intake manifold
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 62 242 Intake manifold 03 | 1 | |
| 2 | 81 23 721 75 63 042 Plug 03 | 1 | |
| 3 | 83 26 712 41 61 162 Seal 03 | 1 | |
| 5 | 75 15 208 Bushing 03 | 3 | |
| 6 | 83 59 937 Nipple 03 | 2 | |
| 7 | 93 12 802 Nipple 03 | 1 | |
| 8 | 83 57 543 Nipple 03 | 1 | |
| 9 | 75 22 477 Nipple 03 | 1 | |
| 10 | 74 87 556 Nipple 03 | 1 | |
| 13 | 75 82 315 Gasket 03 | 1 | |
| 14 | 81 25 197 Screw 03 | 6 | |
| 15 | 81 25 205 Screw 03 | 2 | |
| 15 | 80 82 976 80 83 933 Screw 03 • AC | 2 | |
| 16 | 80 05 928 Stud 03 | 2 | |
| 17 | 80 05 910 Stud 03 | 1 | |
| 18 | 75 61 509 Lifting eye 03 | 1 | |
| 19 | 75 06 322 Thermo contact 03 • With catalytic converter. | 1 | |
| 20 | 91 36 243 Vacuum hose 03 • L=410 MM | Sold... | 1 | |
| 21 | 75 14 375 Hose 03 | 1 | |
| 22 | 40 19 352 Contact 03 • With catalytic converter. | 1 | |
| 22 | 89 79 189 Pressure impulse contact 03 • Without catalytic converter. | 1 | |
| 24 | 79 75 196 Screw 03 | 1 | |
| 25 | 91 36 243 Vacuum hose 03 • L=500 MM | Sold... | 1 | |
| 28 | 75 80 095 Bracket 03 | 1 | |
| 29 | 03 | ||
| 30 | Thermostat housingCooling system 03 | ||
91 36 243 Vacuum hose 03 • L=5000 MM | Sold... | X |
