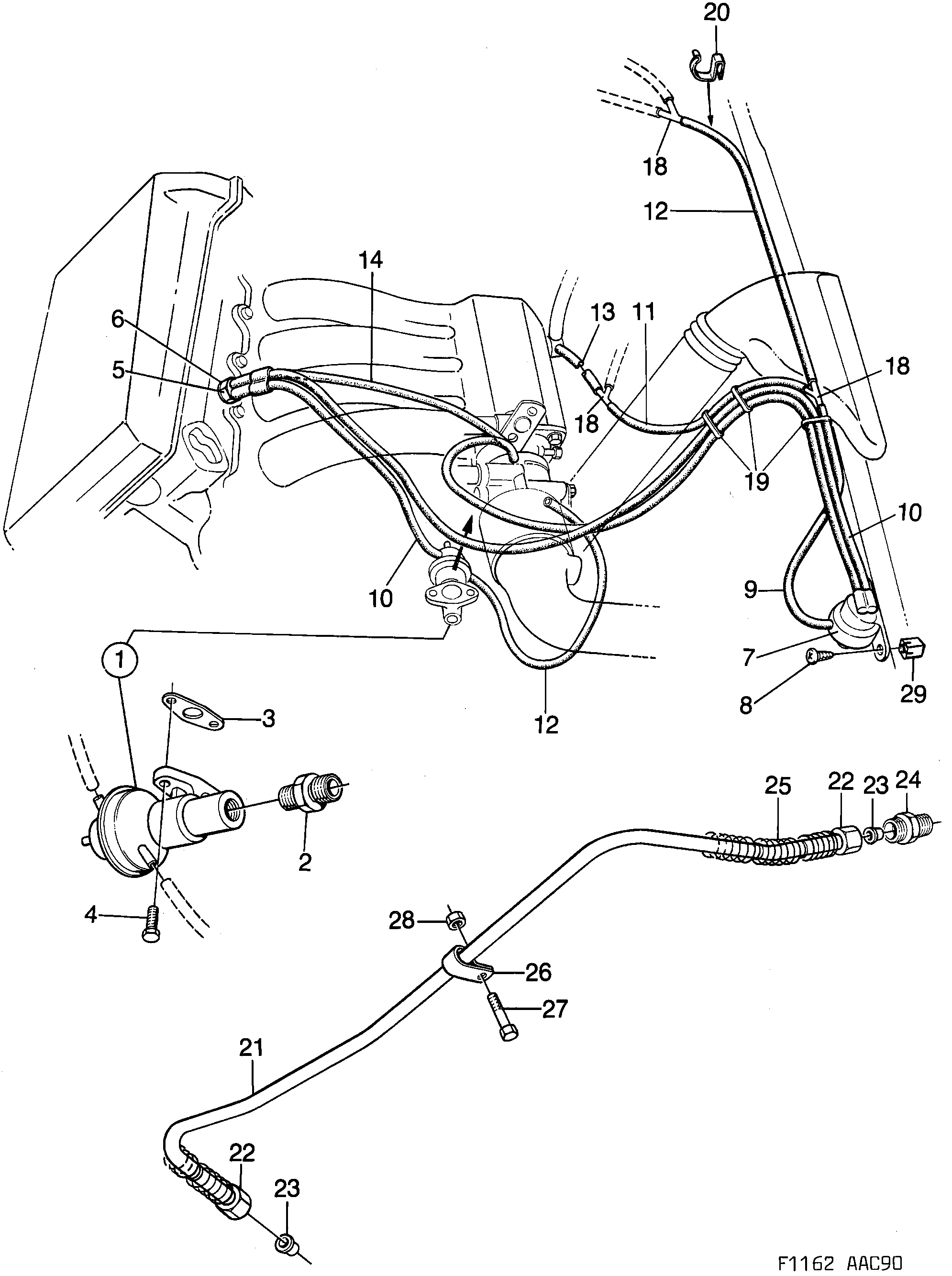

1400: Engine - Intake and exhaust system - EGR system
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 93 50 216 Exhaust gas recirculation valve -1990 • I • Without catalytic converter. | 1 | |
| 1 | 88 59 969 Exhaust gas recirculation valve 1990- • I • Without catalytic converter. | 1 | |
| 1 | 93 50 224 Exhaust gas recirculation valve -1990 • TURBO • Without catalytic converter. | 1 | |
| 1 | 88 59 977 Exhaust gas recirculation valve 1990- • TURBO • Without catalytic converter. | 1 | |
| 2 | 91 14 679 Nipple I | 1 | |
| 2 | 75 06 652 Nipple TURBO | 1 | |
| 3 | 75 07 973 Gasket 05 | 1 | |
| 4 | 80 19 929 Screw 1990-1992 • 05 | 2 | |
| 5 | 75 04 897 Valve 05 | 1 | |
| 6 | 81 24 141 92 150 435 Gasket 05 | 1 | |
| 7 | 75 28 425 Switch 05 | 1 | |
| 8 | 80 59 412 Screw 05 | 2 | |
| 9 | 91 36 243 Vacuum hose 05 • L=220 MM | Sold... | 1 | |
| 10 | 91 36 243 Vacuum hose 1990-1990 • 05 • L=330 MM | Sold... | 1 | |
| 11 | 91 36 243 Vacuum hose 05 • L=335 MM | Sold... | 1 | |
| 12 | 91 36 243 Vacuum hose 05 • L=410 MM | Sold... | 2 | |
| 13 | 91 36 243 Vacuum hose 05 • L=40 MM | Sold... | 1 | |
| 14 | 91 36 243 Vacuum hose 05 • L=410 MM | Sold... | 1 | |
| 18 | 85 09 002 Tube 05 | 3 | |
| 19 | 79 71 872 Tensioning band 05 | 3 | |
| 20 | 79 33 443 Clip 05 | 4 | |
| 21 | 75 20 133 EGR-pipe 05 | 1 | |
| 21 | 74 87 168 EGR-pipe I | 1 | |
| 22 | 81 28 969 Nut 05 | 2 | |
| 23 | 81 32 235 Ferrule 05 | 2 | |
| 24 | 81 31 989 Nipple 05 | 1 | |
| 25 | 75 08 385 Protection 05 | 1 | |
| 26 | 75 15 836 Clamp -1991 • 05 | 1 | |
| 27 | 80 21 933 Screw 1990-1992 • 05 | 1 | |
| 28 | 81 51 227 Nut 05 | 1 | |
| 29 | 79 73 456 Expanding nut 05 | 2 | |
91 36 243 Vacuum hose 05 • L=5000 MM | Sold... | X |
