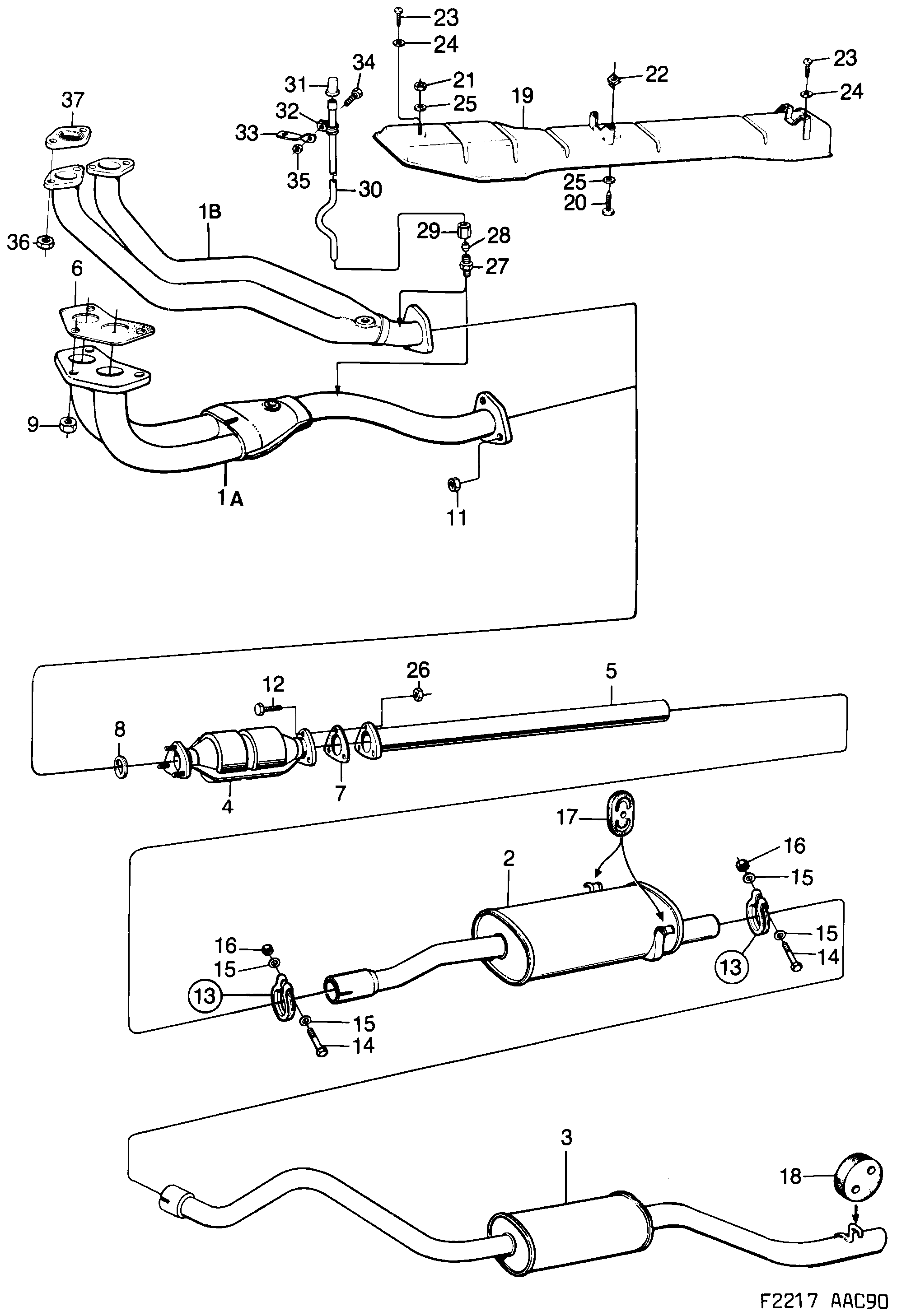

1520: Engine - Intake and exhaust system - Exhaust system - With catalytic converter
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1B | 89 80 278 Exhaust pipe 03 | 1 | |
| 1A | 75 39 117 54 66 933 Exhaust pipe 03 | 1 | |
| 1B | 89 80 443 Exhaust pipe 03 | 1 | |
| 1A | 89 76 763 Exhaust pipe 03 | 1 | |
| 2 | 54 66 198 Silencer 03 • (8822272) | 1 | |
| 3 | 54 66 180 Silencer 03 • (8822181) | 1 | |
| 4 | 93 32 461 Three way catalytic converter 03 | 1 | |
| 4 | 44 40 061 Three way catalytic converter 03 | 1 | |
| 5 | 93 33 840 54 66 792 Exhaust pipe 03 | 1 | |
| 6 | 75 28 136 Gasket 03 | 1 | |
| 7 | 40 24 089 Gasket 03 | 1 | |
| 8 | 83 28 726 Ring 03 | 1 | |
| 9 | 79 79 503 Nut 03 | 3 | |
| 11 | 81 51 235 Nut 03 | 3 | |
| 12 | 79 67 789 Screw 03 | 3 | |
| 13 | 83 86 450 Clamp 03 | 1 | |
| 14 | 80 84 014 32 000 289 Screw 03 | 1 | |
| 15 | 93 19 047 Washer 03 | 2 | |
| 16 | 81 51 060 Nut 03 | 1 | |
| 17 | 93 28 105 Rubber mounting 03 | 2 | |
| 18 | 93 65 404 Rubber mounting 03 | 1 | |
| 19 | 93 49 804 79 23 014 Heat shield -1990 • 03 | 1 | |
| 19 | 40 21 598 Shield 1990- • 03 | 1 | |
| 20 | 93 68 218 Screw 03 | 2 | |
| 21 | 81 51 235 Nut -1990 • 03 | 1 | |
| 22 | 79 70 429 Cage nut 03 | 2 | |
| 23 | 79 22 503 Screw 1990-1990 • 03 | 2 | |
| 24 | 80 29 951 Washer 1990-1990 • 03 | 2 | |
| 25 | 80 29 985 92 153 033 Washer 1990-1990 • 03 | 3 | |
| 26 | 79 74 264 30 509 159 Nut 03 | 3 | |
| 27 | 81 31 963 Nipple 03 | 1 | |
| 28 | 81 32 219 Ferrule 03 | 1 | |
| 29 | 81 45 534 Fitting nut 03 | 1 | |
| 30 | 89 80 468 Tube 03 | 1 | |
| 30 | 89 76 789 Tube 03 | 1 | |
| 31 | 89 76 680 Cover 03 | 1 | |
| 32 | 79 69 355 92 150 772 Clamp 03 | 1 | |
| 33 | 89 76 797 Bracket 03 | 1 | |
| 34 | 79 69 223 Screw 03 | 1 | |
| 35 | 79 71 658 11 900 428 Nut 03 | 1 | |
| 36 | 79 78 620 11 900 437 Nut 03 | 4 | |
| 37 | 89 80 328 Gasket 03 | 2 | |
88 19 690 | X | ||
88 18 577 | X | ||
93 21 555 | X |
