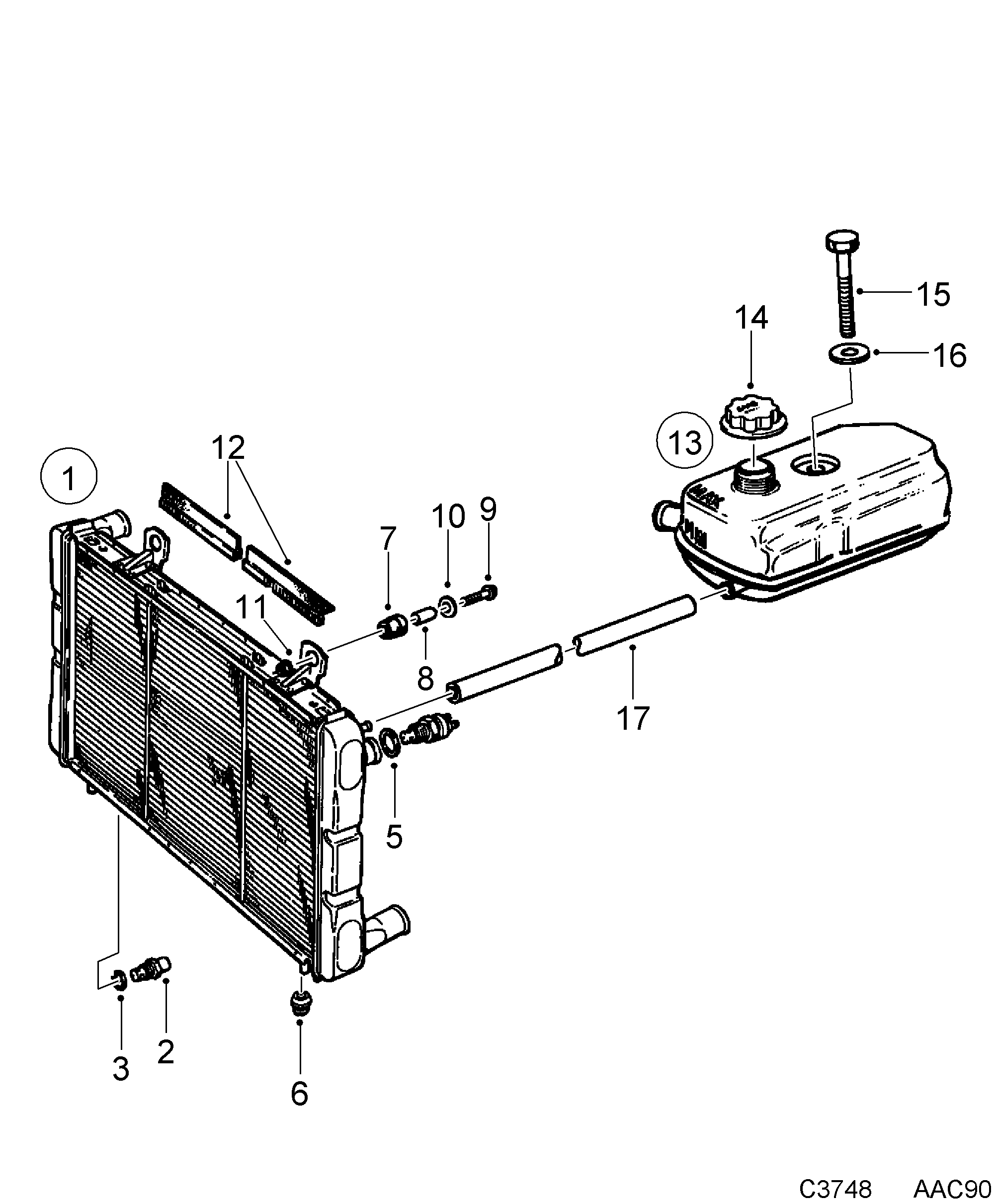

1700: Engine - Cooling system - Radiator, etc
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 49 280 Radiator | 1 | |
| 1 | 75 49 298 Radiator TURBO | 1 | |
| 2 | 75 49 389 Drain valve | 1 | |
| 3 | 79 75 725 O-ring | 1 | |
| 4 | 95 26 518 40 86 708 Thermo contact 1990-1991 | 1 | |
| 5 | 83 30 268 Seal | 1 | |
| 6 | 83 39 657 Rubber bushing | 2 | |
| 7 | 75 13 724 Rubber bushing | 2 | |
| 8 | 75 13 716 Spacer | 2 | |
| 9 | 79 75 436 Screw | 2 | |
| 10 | 79 75 469 79 87 506 Washer | 2 | |
| 11 | 79 71 658 11 900 428 Nut | 2 | |
| 12 | 41 20 069 Sealing strip | 2 | |
| 13 | 75 49 876 Expansion tank | 1 | |
| 14 | 75 77 323 43 95 570 Cover | 1 | |
| 15 | 80 84 055 Screw | 1 | |
| 16 | 83 71 650 Washer | 1 | |
| 17 | HoseCooling system B201 | ||
| 17 | HoseCooling system B202, B212 |
