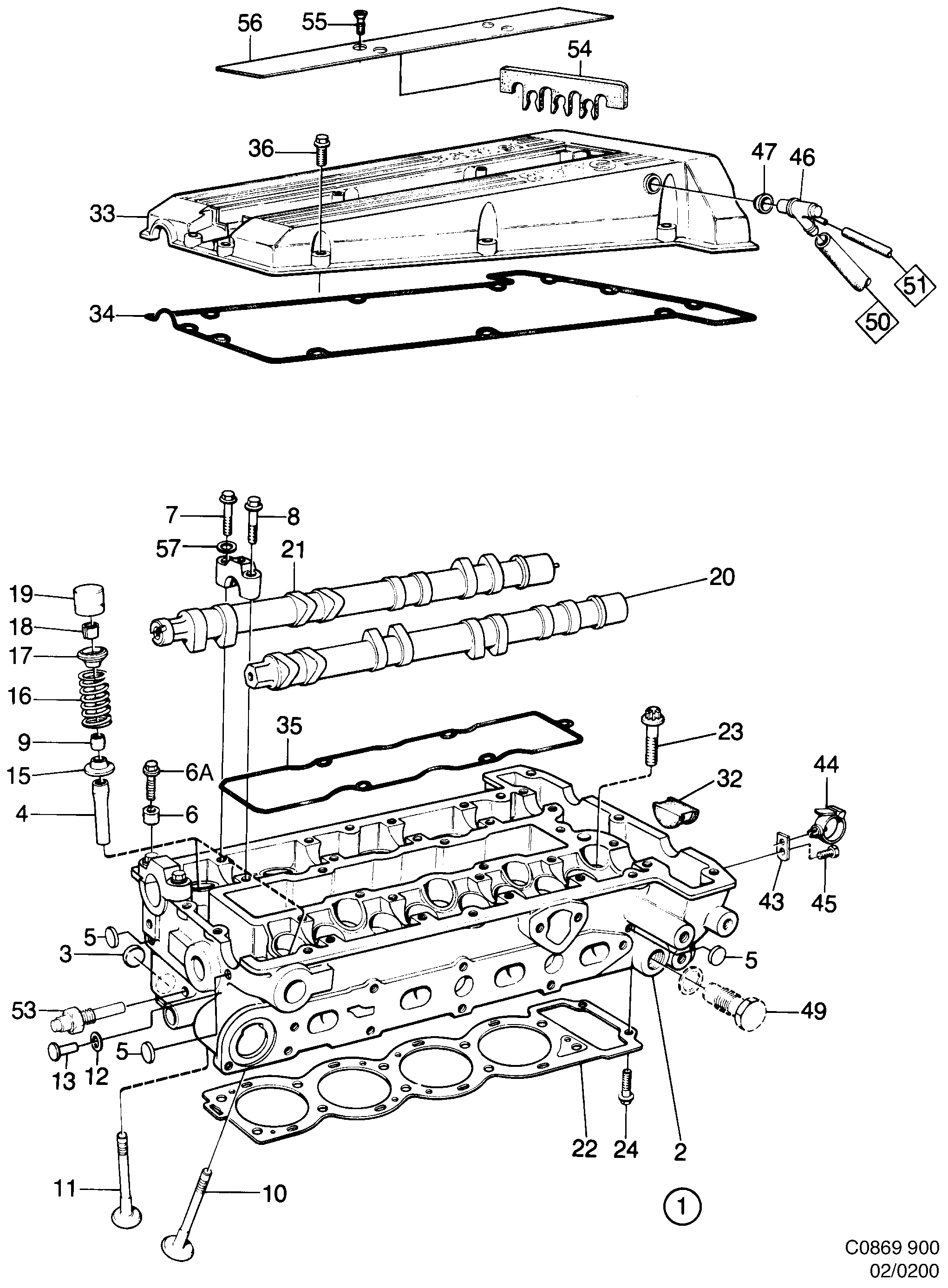

200: Engine - Short block - Cylinder head

(1990 - 1993 | B212) | For 900 (1990)

Also valid for CV 1994

100%

(N°170)

Section 200

(N°230)

Pos.	Part No.	Description	Usage	Qty
1	91 07 376 Cylinder head B202 • Also available as exchange...	Cylinder head	B202 Also available as exchange...	1
1	91 15 346 Cylinder head B212 • Also available as exchange...	Cylinder head	B212 Also available as exchange...	1
2	91 07 053 Cylinder head B202	Cylinder head	B202	1
2	91 15 353 Cylinder head B212	Cylinder head	B212	1
3	75 88 320 Sealing washer 05, 19	Sealing washer	05, 19	2
4	75 60 154 Valve guide B202	Valve guide	B202	16
4	74 80 577 Valve guide B212	Valve guide	B212	16
4	75 69 734 Valve guide B202 • Oversize.	Valve guide	B202 Oversize.	16
4	91 19 942 Valve guide B212 • Oversize.	Valve guide	B212 Oversize.	16
5	81 23 143 49 40 466 Plug 05, 19	Plug	05, 19	3
6	75 04 566 Guide sleeve 05, 19	Guide sleeve	05, 19	2
6A	75 04 178 92 151 833 Screw 05, 19	Screw	05, 19	2
7	81 25 213 Screw 05, 19	Screw	05, 19	12
8	75 85 847 55 559 477 Screw 05, 19	Screw	05, 19	8
9	75 00 713 Seal 05, 19	Seal	05, 19	16
10	75 62 002 74 84 801 Inlet valve B202	Inlet valve	B202	8
10	74 84 801 Inlet valve B212	Inlet valve	B212	8
11	75 00 085 91 65 598 Exhaust valve 1990-1991 • 05, 19	Exhaust valve	1990-1991 05, 19	8
12	81 23 721 75 63 042 Plug 05, 19	Plug	05, 19	1
13	83 26 712 41 61 162 Seal 05, 19	Seal	05, 19	1
15	75 05 134 Washer 05, 19	Washer	05, 19	16
16	93 58 391 91 29 651 Spring 1990-1991 • 05, 19	Spring	1990-1991 05, 19	16
17	75 01 349 Washer 05, 19	Washer	05, 19	16
18	75 15 547 Valve cone 05, 19	Valve cone	05, 19	32
19	93 57 716 55 557 388 Tappet -1992 • 05, 19	Tappet	-1992 05, 19	16
20	75 60 808 Camshaft TURBO • Intake.	Camshaft	TURBO Intake.	1
20	75 61 467 Camshaft I • Intake.	Camshaft	I Intake.	1
21	75 60 964 Camshaft 05, 19 • Exhaust.	Camshaft	05, 19 Exhaust.	1
22	75 61 301 91 81 348 Cylinder head gasket B202	Cylinder head gasket	B202	1
22	87 87 111 91 81 512 Gasket B212	Gasket	B212	1
23	75 18 335 59 55 794 Screw -1991 • 05, 19	Screw	-1991 05, 19	10
24	81 25 189 Screw 05, 19	Screw	05, 19	2
32	75 00 069 Plug 1990-1990 • 05, 19	Plug	1990-1990 05, 19	3
33	91 16 062 59 59 416 Valve cover -1990 • 05, 19	Valve cover	-1990 05, 19	1
33	78 58 756 59 59 416 Valve cover 1990- • 05, 19	Valve cover	1990- 05, 19	1
34	75 88 056 55 555 635 Gasket 1990-1990 • 05, 19	Gasket	1990-1990 05, 19	1
34	75 69 304 55 555 635 Gasket 1990-1990 • 05, 19	Gasket	1990-1990 05, 19	1
35	75 23 962 55 555 634 Gasket 05, 19	Gasket	05, 19	1
36	75 60 931 Screw 05, 19	Screw	05, 19	16
43	75 11 975 Bracket 05, 19	Bracket	05, 19	2
44	75 12 015 Tensioning band 05, 19	Tensioning band	05, 19	2
45	80 82 919 80 82 935 Screw 05, 19	Screw	05, 19	2
46	75 17 048 Nipple 05, 19	Nipple	05, 19	1
47	75 15 190 95 49 593 Bushing 05, 19	Bushing	05, 19	1
49	Chain tensionerShort block 05, 19	Chain tensionerShort block 05, 19
50	HoseCooling system 05, 19	HoseCooling system 05, 19
51	HoseIntake and exhaust system 05, 19	HoseIntake and exhaust system 05, 19
53	88 00 914 30 539 720 Sensor -1990 • 05, 19	Sensor	-1990 05, 19	1
53	88 59 233 30 539 720 Sensor 1990-1990 • 05, 19	Sensor	1990-1990 05, 19	1
54	RetainerIgnition system 05, 19	RetainerIgnition system 05, 19
55	75 86 837 Screw -1990 • 05, 19	Screw	-1990 05, 19	4
55	88 57 872 Screw 1990- • 05, 19	Screw	1990- 05, 19	4
56	75 85 532 Cover 05, 19	Cover	05, 19	1
57	91 14 885 Sealing washer 05, 19	Sealing washer	05, 19	16
	88 18 254 88 22 041 Gasket kit Kits 1990-1990 • 05, 19	Gasket kit Kits	1990-1990 05, 19	X
	93 21 464 88 22 041 Gasket kit Kits 1990-1990 • 05, 19	Gasket kit Kits	1990-1990 05, 19	X
	88 19 831 Gasket kit Kits B202	Gasket kit Kits	B202	X
	93 21 597 Gasket kit Kits B212	Gasket kit Kits	B212	X
