Question 1

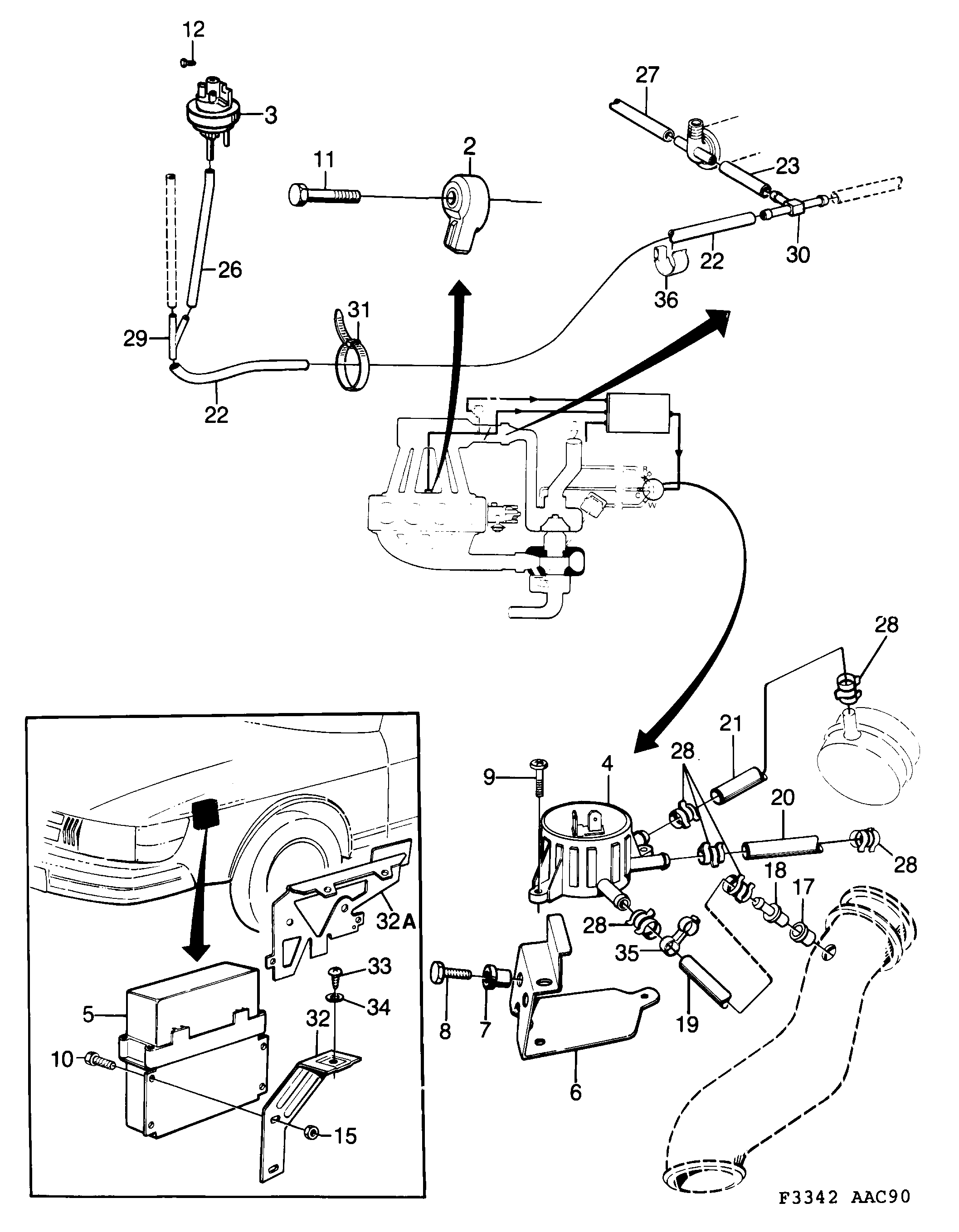

Where to find the exploded diagram for Supercharging system on my Saab 900 1990?

Accepted Answer

Find on Saabiste.net the complete and official interactive technical diagram for Supercharging system on Saab 900 1990. All components are detailed with their original SAAB OEM references.

Question 2

How do I identify a specific Saab reference in the section Supercharging system?

Accepted Answer

Each part of the exploded diagram has a numbered marker linked to our parts table. You can click on the visual marker to instantly highlight the corresponding row containing the OEM part number, quantity, and chassis restrictions.

Question 3

How do I copy or use the part number of a component in section Supercharging system?

Accepted Answer

Simply click on the monospace part number in the table. Saabiste will instantly copy the OEM part number to your clipboard to make it easier for you to search at your Saab parts suppliers.

Question 4

What does NLS mean in the Saab 900 catalog?

Accepted Answer

NLS stands for "No Longer Serviced". For these discontinued original parts in the section Supercharging system, Saabiste displays, whenever available, the official replacement reference recommended by the manufacturer.

Question 5

Are the parts in this section Supercharging system suitable for left-hand drive (LHD) or right-hand drive (RHD)?

Accepted Answer

Steering compatibilities are shown in the restrictions column of the parts table. You can also use the global EPC filters to hide part variants that are incompatible with your Saab's steering type (LHD/RHD).

Pos.	Part No.	Description	Usage	Qty
2	75 68 801 Knock sensor	Knock sensor		1
3	93 42 064 Pressure sensor	Pressure sensor		1
4	75 17 477 Solenoid valve	Solenoid valve		1
5	75 66 599 Electronic unit With catalytic converter.	Electronic unit	With catalytic converter.	1
5	88 57 427 Electronic unit 1990-1991, LHD • (SPG) \| With catalytic...	Electronic unit	1990-1991, LHD (SPG) \| With catalytic...	1
5	75 24 127 Electronic unit Without catalytic converter.	Electronic unit	Without catalytic converter.	1
5	91 19 330 Electronic unit 157 HP,(116 KW)	Electronic unit	157 HP,(116 KW)	1
5	75 83 172 Electronic unit 175 HP (129 KW)...	Electronic unit	175 HP (129 KW)...	1
5	43 93 971 Electronic unit 185 HP (137 KW)	Electronic unit	185 HP (137 KW)	1
6	93 42 239 Bracket	Bracket		1
7	79 73 456 Expanding nut	Expanding nut		2
8	80 19 721 Screw 1990-1990	Screw	1990-1990	2
9	79 22 800 Screw	Screw		2
10	80 19 713 Screw	Screw		4
11	81 25 197 Screw	Screw		1
12	79 72 359 79 22 800 Screw	Screw		2
15	79 73 365 92 150 136 Nut	Nut		4
17	83 25 656 Bushing	Bushing		1
18	93 42 270 Nipple	Nipple		1
19	75 25 777 Hose	Hose		1
20	75 10 266 Hose	Hose		1
21	93 42 619 Hose	Hose		1
22	91 36 243 Vacuum hose L=500 MM \| Sold...	Vacuum hose	L=500 MM \| Sold...	1
23	91 36 243 Vacuum hose L=30 MM \| Sold...	Vacuum hose	L=30 MM \| Sold...	1
26	91 36 243 Vacuum hose L=90 MM \| Sold...	Vacuum hose	L=90 MM \| Sold...	2
27	91 36 243 Vacuum hose L=1670 MM \| Sold...	Vacuum hose	L=1670 MM \| Sold...	1
28	79 73 522 Hose clamp	Hose clamp		6
29	85 09 002 Tube	Tube		1
30	83 66 791 12 791 937 Pipe	Pipe		1
31	79 71 880 11 900 513 Tensioning band	Tensioning band		2
32	75 25 744 Bracket	Bracket		2
32A	BracketElectric equipment, other ABS	BracketElectric equipment, other ABS			1
33	80 59 396 Screw -1991	Screw	-1991	2
34	80 29 944 Washer	Washer		2
35	73 98 399 Clamp	Clamp		1
36	79 33 443 Clip	Clip		2
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X

Pos.	Part No.	Description	Usage	Qty
2	75 68 801 Knock sensor	Knock sensor		1
3	93 42 064 Pressure sensor	Pressure sensor		1
4	75 17 477 Solenoid valve	Solenoid valve		1
5	75 66 599 Electronic unit With catalytic converter.	Electronic unit	With catalytic converter.	1
5	88 57 427 Electronic unit 1990-1991, LHD • (SPG) \| With catalytic...	Electronic unit	1990-1991, LHD (SPG) \| With catalytic...	1
5	75 24 127 Electronic unit Without catalytic converter.	Electronic unit	Without catalytic converter.	1
5	91 19 330 Electronic unit 157 HP,(116 KW)	Electronic unit	157 HP,(116 KW)	1
5	75 83 172 Electronic unit 175 HP (129 KW)...	Electronic unit	175 HP (129 KW)...	1
5	43 93 971 Electronic unit 185 HP (137 KW)	Electronic unit	185 HP (137 KW)	1
6	93 42 239 Bracket	Bracket		1
7	79 73 456 Expanding nut	Expanding nut		2
8	80 19 721 Screw 1990-1990	Screw	1990-1990	2
9	79 22 800 Screw	Screw		2
10	80 19 713 Screw	Screw		4
11	81 25 197 Screw	Screw		1
12	79 72 359 79 22 800 Screw	Screw		2
15	79 73 365 92 150 136 Nut	Nut		4
17	83 25 656 Bushing	Bushing		1
18	93 42 270 Nipple	Nipple		1
19	75 25 777 Hose	Hose		1
20	75 10 266 Hose	Hose		1
21	93 42 619 Hose	Hose		1
22	91 36 243 Vacuum hose L=500 MM \| Sold...	Vacuum hose	L=500 MM \| Sold...	1
23	91 36 243 Vacuum hose L=30 MM \| Sold...	Vacuum hose	L=30 MM \| Sold...	1
26	91 36 243 Vacuum hose L=90 MM \| Sold...	Vacuum hose	L=90 MM \| Sold...	2
27	91 36 243 Vacuum hose L=1670 MM \| Sold...	Vacuum hose	L=1670 MM \| Sold...	1
28	79 73 522 Hose clamp	Hose clamp		6
29	85 09 002 Tube	Tube		1
30	83 66 791 12 791 937 Pipe	Pipe		1
31	79 71 880 11 900 513 Tensioning band	Tensioning band		2
32	75 25 744 Bracket	Bracket		2
32A	BracketElectric equipment, other ABS	BracketElectric equipment, other ABS			1
33	80 59 396 Screw -1991	Screw	-1991	2
34	80 29 944 Washer	Washer		2
35	73 98 399 Clamp	Clamp		1
36	79 33 443 Clip	Clip		2
	91 36 243 Vacuum hose L=5000 MM \| Sold...	Vacuum hose	L=5000 MM \| Sold...	X

2060: Engine - Supercharging system - APC system
