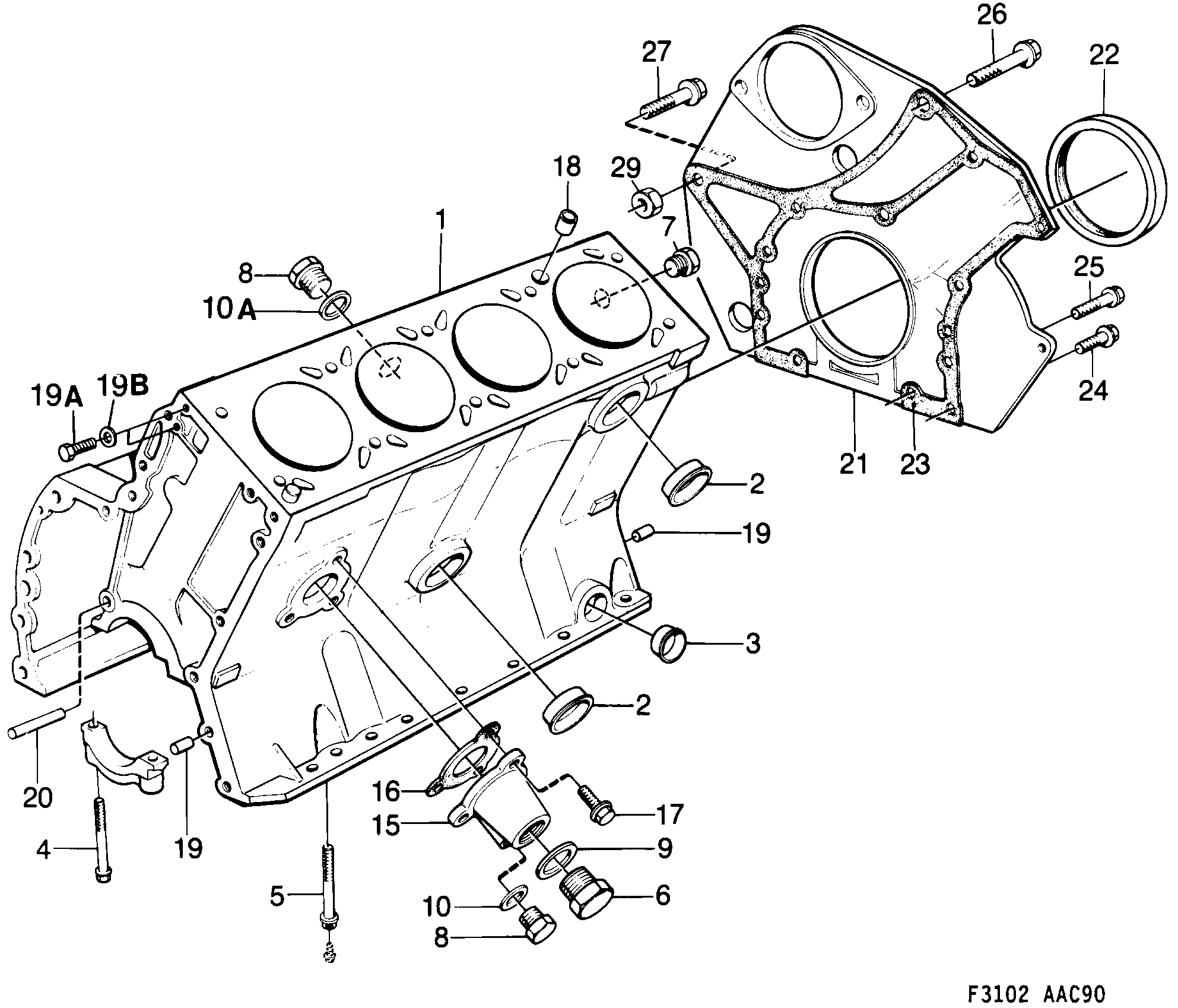

230: Engine - Short block - Cylinder block
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 16 826 Cylinder block | 1 | |
| 1 | 75 16 834 Cylinder block TURBO | 1 | |
| 1 | 91 16 294 Cylinder block B212 | 1 | |
| 2 | 91 16 757 32 000 339 Sealing washer | 2 | |
| 3 | 75 88 320 Sealing washer | 1 | |
| 4 | 83 52 502 91 28 687 Screw | 6 | |
| 5 | 93 08 537 Screw Main bearing 2 and... | 4 | |
| 6 | 81 23 788 Plug | 1 | |
| 7 | 83 48 047 Plug | 1 | |
| 8 | 81 23 721 75 63 042 Plug | 2 | |
| 9 | 91 16 856 Gasket | 1 | |
| 10 | 83 26 712 41 61 162 Seal | 2 | |
| 10A | 83 26 712 41 61 162 Seal | 2 | |
| 10A | 81 24 141 92 150 435 Gasket B212 | 2 | |
| 15 | 75 81 259 91 44 684 Cover 1990-1991 | 1 | |
| 16 | 75 23 897 Gasket | 1 | |
| 17 | 81 25 189 Screw | 3 | |
| 18 | 83 46 470 Guide | 2 | |
| 19 | 83 66 007 Guide | 4 | |
| 19A | 91 66 273 Screw 1990-1991 • B212 • (8019895) | 2 | |
| 19B | 80 73 223 Washer 1990-1991 • B212 | 2 | |
| 20 | PinShort block | 1 | |
| 21 | 75 16 255 End piece | 1 | |
| 22 | 93 50 158 55 557 240 Seal 1990-1991 | 1 | |
| 23 | 75 63 661 Gasket -1992 | 1 | |
| 24 | 81 25 189 Screw | 9 | |
| 25 | 81 25 197 Screw | 2 | |
| 26 | 81 50 500 Screw | 1 | |
| 27 | 81 50 534 Screw C | 1 | |
| 27 | 81 50 559 Screw | 1 | |
| 29 | 81 51 086 Nut | 1 |
