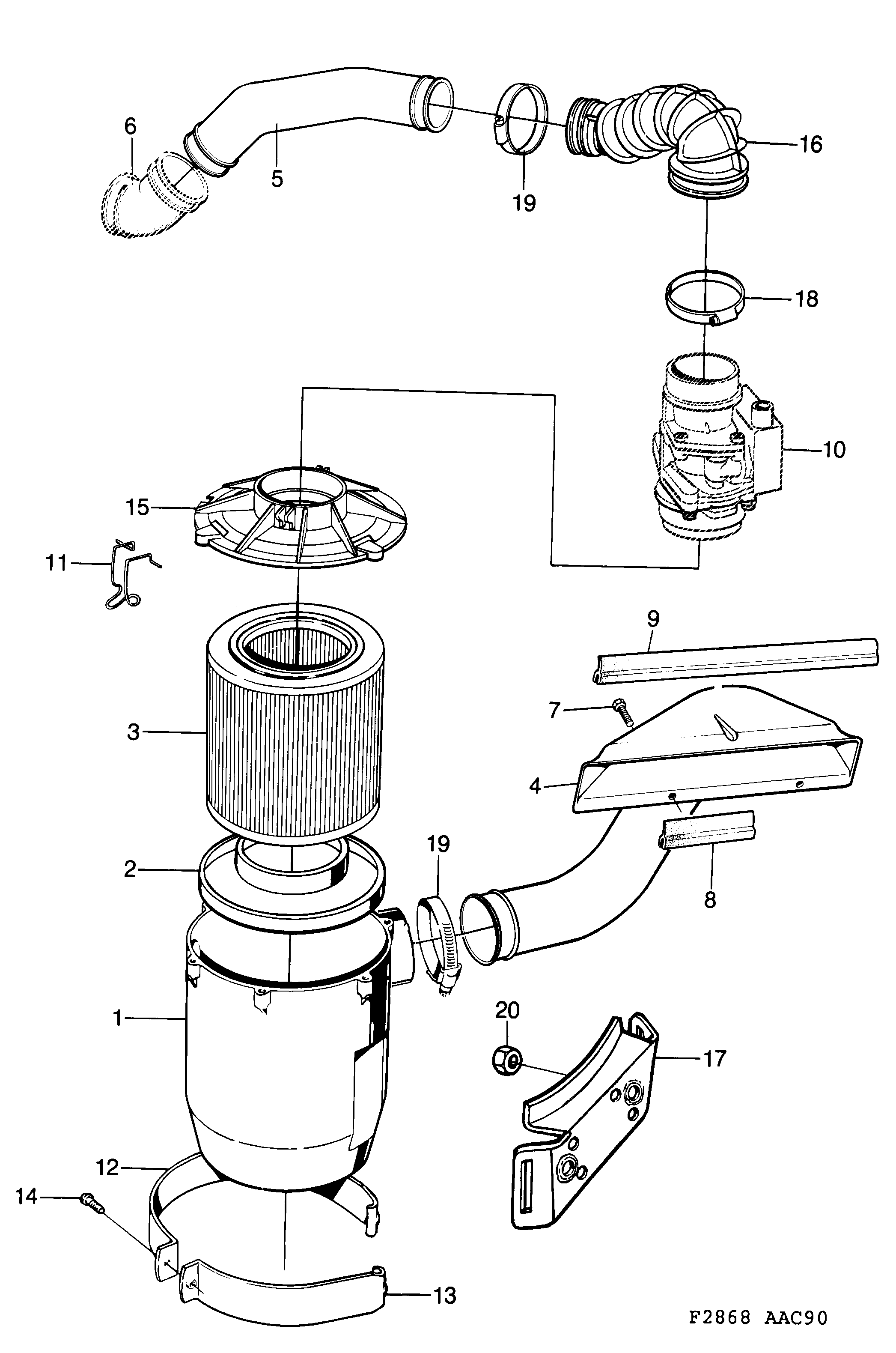

650: Engine - Fuel system - Air cleaner - LUCAS intake system
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 75 12 999 Air cleaner 05 | 1 | |
| 2 | 83 17 919 Insert 05 | 1 | |
| 3 | 93 18 502 Air filter 05 | 1 | |
| 4 | 89 78 306 Tube 05 | 1 | |
| 5 | 75 14 615 Intake manifold -1990 • 05 | 1 | |
| 5 | 40 22 562 Intake manifold 1990- • 05 | 1 | |
| 5 | 40 19 378 Intake manifold -1990 • B202S | 1 | |
| 5 | 40 22 554 Intake manifold 1990- • B202S | 1 | |
| 6 | 05 | ||
| 7 | 79 22 891 Screw 05 | 2 | |
| 8 | 75 39 125 Rubber moulding 05 | 1 | |
| 9 | 75 28 284 Rubber moulding 05 | 1 | |
| 10 | Mass air flow sensorFuel system 05 | ||
| 11 | 83 18 339 Clamp 05 | 3 | |
| 12 | 83 21 051 Tensioning band 05 | 1 | |
| 13 | 83 21 044 Tensioning band 05 | 1 | |
| 14 | 80 19 945 Screw 05 | 1 | |
| 15 | 89 76 482 Cover 05 | 1 | |
| 16 | 89 76 508 Air inlet 05 | 1 | |
| 17 | 92 88 432 Bracket 05 | 1 | |
| 18 | 79 70 163 92 150 224 Hose clamp 05 | 1 | |
| 19 | 79 70 148 92 153 079 Hose clamp 05 | 1 | |
| 20 | 81 51 227 Nut 05 | 2 |
