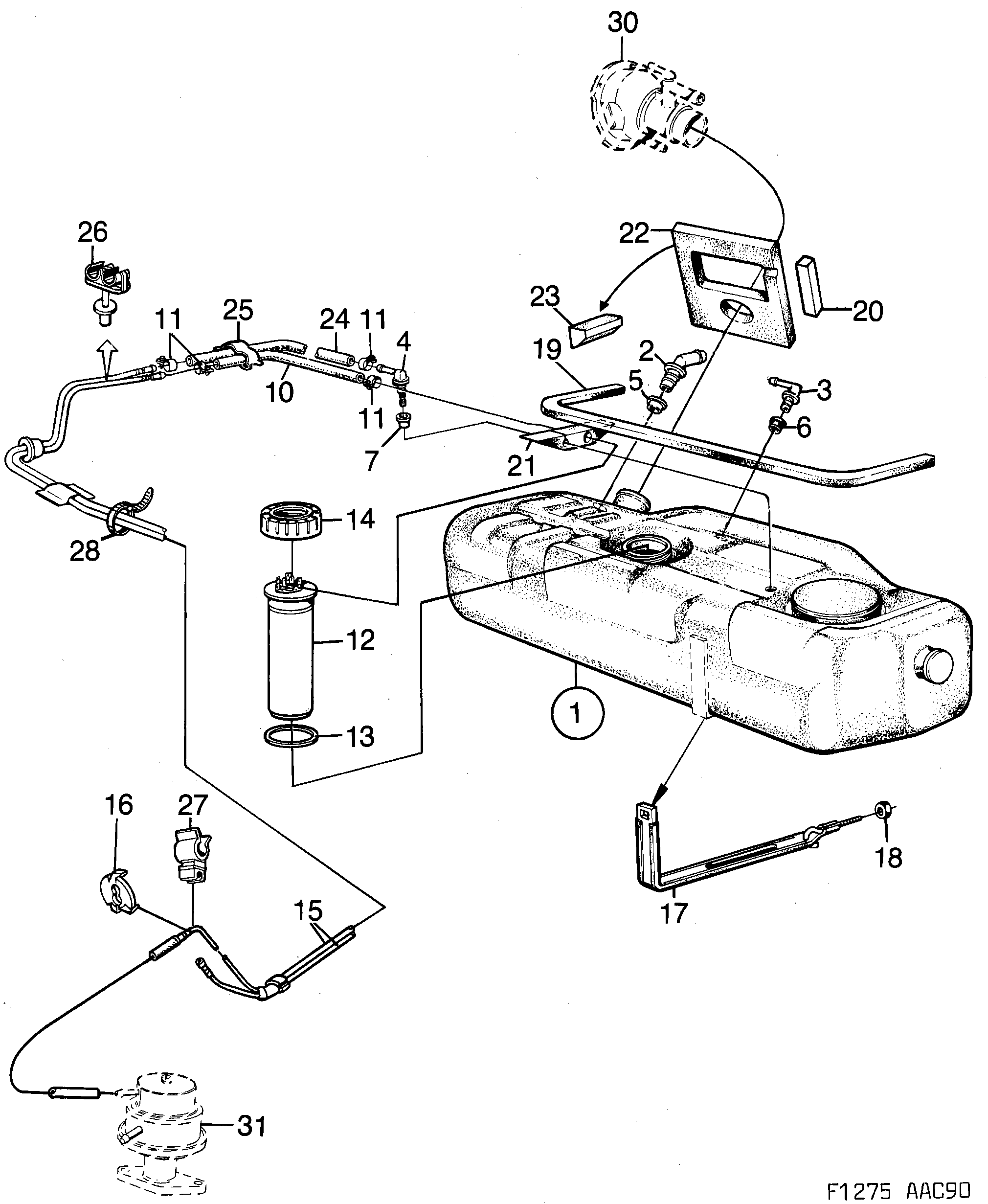

770: Engine - Fuel system - Fuel tank - carburettor engine
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 82 159 Tank | 1 | |
| 2 | 93 29 491 Nipple | 1 | |
| 3 | 93 28 857 Connector | 1 | |
| 4 | 93 78 357 Nipple | 1 | |
| 5 | 93 24 021 Bushing | 1 | |
| 6 | 83 25 656 Bushing | 1 | |
| 7 | 93 24 021 Bushing | 1 | |
| 10 | 93 63 250 Hose L=520 MM | Manufactured... | 1 | |
| 11 | 79 68 308 Hose clamp | 4 | |
| 12 | 93 61 957 Fuel transmitter | 1 | |
| 13 | 93 92 689 Gasket | 1 | |
| 14 | 93 93 950 Nut | 1 | |
| 15 | 89 76 417 Fuel pipe | 1 | |
| 16 | 83 28 346 Bracket | 1 | |
| 17 | 40 15 145 Tensioning band | 2 | |
| 18 | 91 66 406 11 900 440 Nut (8074288) | 2 | |
| 19 | 40 18 347 Seal | 1 | |
| 20 | 85 72 752 Bracket | 2 | |
| 21 | 93 29 855 Seal | 2 | |
| 22 | 40 15 608 Seal | 1 | |
| 23 | 93 34 632 Seal | 1 | |
| 24 | 93 63 359 Hose L=715 MM | 1 | |
| 25 | 93 49 945 Clip | 2 | |
| 26 | 79 63 895 Tube clamp | 2 | |
| 27 | 75 11 256 Clamp | 1 | |
| 28 | 79 71 872 Tensioning band | 2 | |
| 30 | Filler pipeFuel system | ||
| 31 | Fuel pumpFuel system | ||
93 62 781 Hose L=10M | X |
