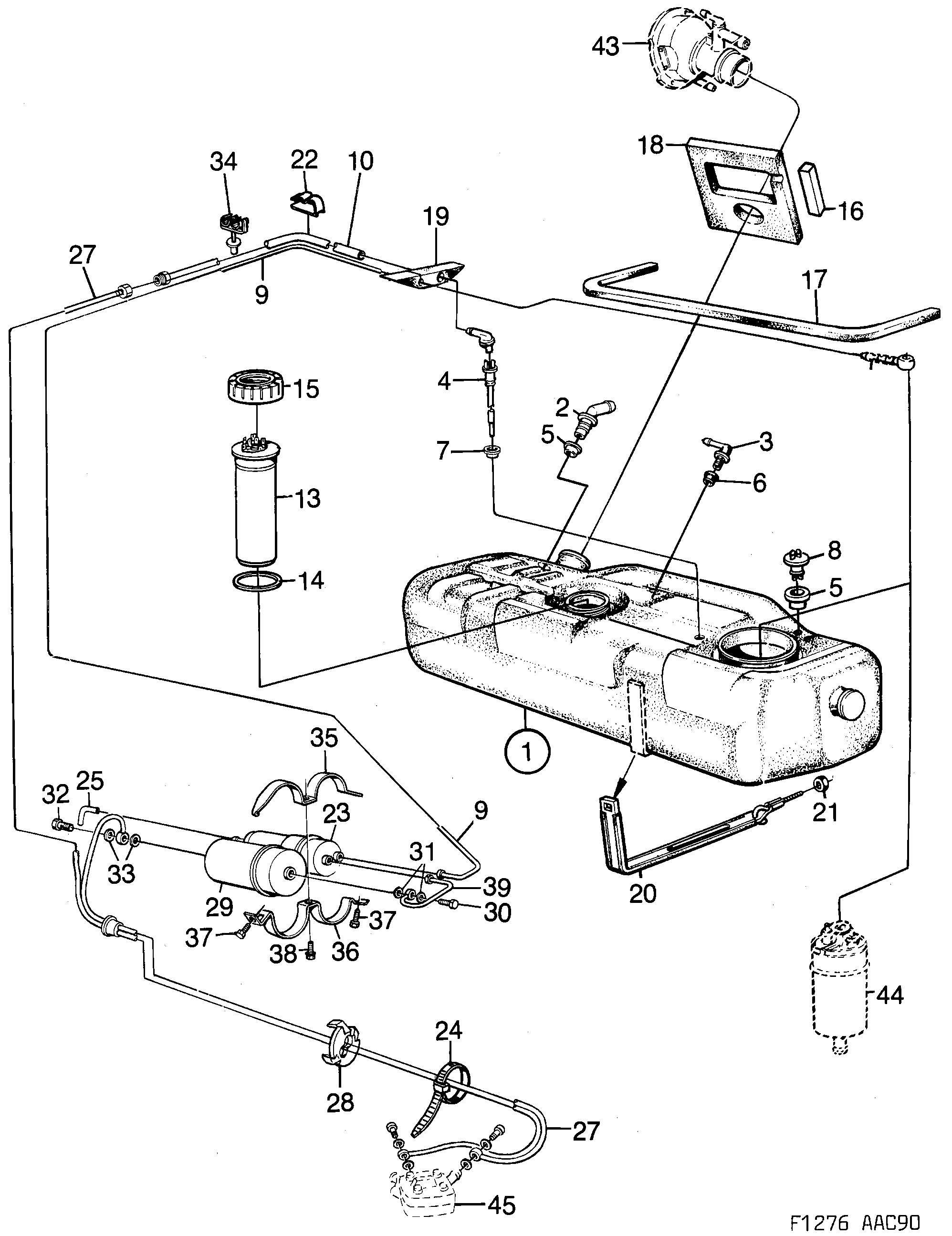

800: Engine - Fuel system - Fuel tank
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 89 82 118 Tank 03 | 1 | |
| 2 | 93 29 491 Nipple 03 | 1 | |
| 3 | 93 28 857 Connector 03 | 1 | |
| 4 | 89 76 961 Nipple 03 | 1 | |
| 5 | 93 24 021 Bushing 03 | 2 | |
| 6 | 83 25 656 Bushing 03 | 1 | |
| 7 | 93 24 021 Bushing 03 | 1 | |
| 8 | Cable harnessWiring and fuses 1990-1990 • 03 | ||
| 9 | 89 77 308 Fuel pipe 03 | 1 | |
| 10 | 89 76 359 Fuel pipe 03 | 1 | |
| 13 | 89 80 393 Fuel transmitter 03 | 1 | |
| 14 | 93 92 689 Gasket 03 | 1 | |
| 15 | 93 93 950 Nut 03 | 1 | |
| 16 | 85 72 752 Bracket 03 | 2 | |
| 17 | 40 18 347 Seal 03 | 1 | |
| 18 | 40 15 608 Seal 03 | 1 | |
| 19 | 89 76 375 Seal 03 | 1 | |
| 20 | 40 15 145 Tensioning band 03 | 2 | |
| 21 | 91 66 406 11 900 440 Nut 03 • (8074288) | 2 | |
| 22 | 93 49 945 Clip 03 | 2 | |
| 23 | 75 25 181 Fuel accumulator 03 | 1 | |
| 24 | 79 71 872 Tensioning band 03 | 3 | |
| 25 | 93 28 899 Protective pipe 03 | 1 | |
| 27 | 89 77 654 Fuel pipe 03 | 1 | |
| 28 | 83 28 346 Bracket 03 | 1 | |
| 29 | 89 78 561 41 63 853 Fuel filter 03 | 1 | |
| 30 | 83 22 927 12 773 569 Banjo bolt 03 | 1 | |
| 31 | 89 81 961 41 61 162 Seal 03 | 2 | |
| 32 | 83 19 915 12 794 638 Banjo bolt 03 | 1 | |
| 33 | 89 81 979 44 43 883 Seal 03 | 2 | |
| 34 | 79 63 895 Tube clamp 03 | 2 | |
| 35 | 89 77 316 Tensioning band 03 | 1 | |
| 36 | 89 77 324 Tensioning band 03 | 1 | |
| 37 | 79 23 014 Screw 03 | 2 | |
| 38 | 79 75 774 92 153 149 Screw 03 | 1 | |
| 39 | 89 77 290 Fuel pipe 03 | 1 | |
| 43 | Filler pipeFuel system 03 | ||
| 44 | Fuel pumpFuel system 03 | ||
| 45 | VolumeterFuel system 03 | ||
93 62 781 Hose 03 • L=10M | X |
