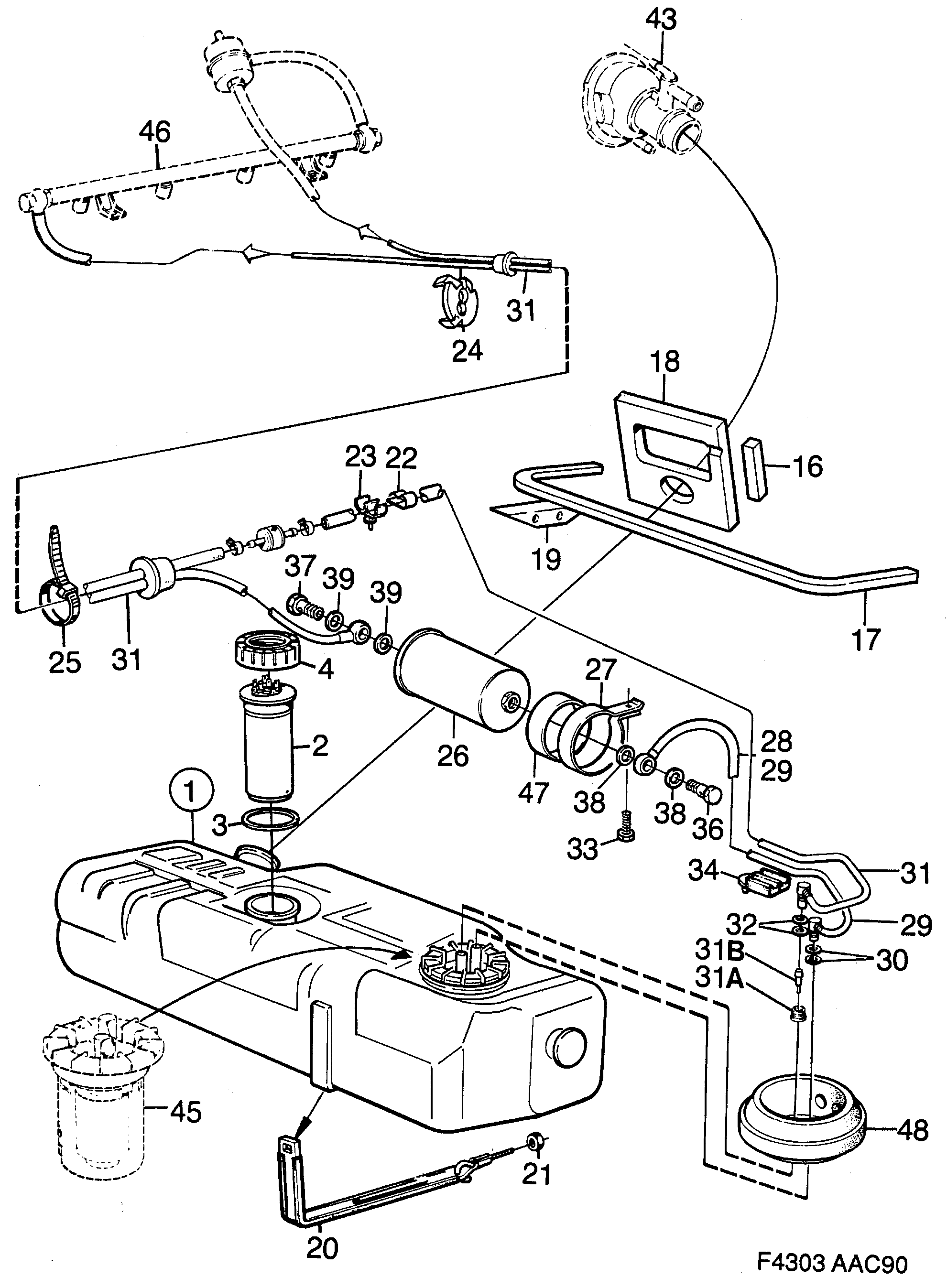

830: Engine - Fuel system - Fuel tank

(1990 - 1993 | B212) | For 900 (1990)

Also valid for CV 1994

100%

(N°800)

Section 830

(N°860)

Pos.	Part No.	Description	Usage	Qty
1	89 82 126 Tank 05, 19	Tank	05, 19	1
2	89 80 393 Fuel transmitter 05, 19	Fuel transmitter	05, 19	1
3	93 92 689 Gasket 05, 19	Gasket	05, 19	1
4	93 93 950 Nut 05, 19	Nut	05, 19	1
16	85 72 752 Bracket 05, 19	Bracket	05, 19	2
17	40 19 824 Seal 05, 19	Seal	05, 19	1
18	40 15 608 Seal 05, 19	Seal	05, 19	1
19	93 29 855 Seal 05, 19	Seal	05, 19	1
20	40 15 145 Tensioning band 05, 19	Tensioning band	05, 19	2
21	80 74 288 11 900 440 Nut 1990-1992 • 05, 19	Nut	1990-1992 05, 19	2
22	93 49 945 Clip 05, 19	Clip	05, 19	2
23	79 63 895 Tube clamp 05, 19	Tube clamp	05, 19	2
24	83 28 346 Bracket 05, 19	Bracket	05, 19	1
25	79 71 872 Tensioning band 05, 19	Tensioning band	05, 19	2
26	93 33 790 41 63 853 Fuel filter 1990-1991 • 05, 19	Fuel filter	1990-1991 05, 19	1
26	89 78 405 41 63 853 Fuel filter 1990-1991 • 05, 19 • Cars with Lucas injection...	Fuel filter	1990-1991 05, 19 Cars with Lucas injection...	1
27	75 26 650 45 73 903 Bracket 05, 19	Bracket	05, 19	1
29	40 15 715 Fuel pipe -1990 • 05, 19	Fuel pipe	-1990 05, 19	1
29	41 61 741 Fuel pipe 1990- • 05, 19	Fuel pipe	1990- 05, 19	1
30	79 74 546 O-ring 05, 19	O-ring	05, 19	2
31	40 15 731 Fuel pipe 05, 19 • For I with catalytic...	Fuel pipe	05, 19 For I with catalytic...	1
31	40 15 723 Fuel pipe 05, 19	Fuel pipe	05, 19	1
31A	89 77 779 Non-return valve 05, 19	Non-return valve	05, 19	1
31B	89 77 761 Valve peg 05, 19	Valve peg	05, 19	1
32	79 74 546 O-ring 05, 19	O-ring	05, 19	2
33	79 23 014 Screw 05, 19	Screw	05, 19	1
34	93 82 870 Clamp 05, 19	Clamp	05, 19	3
36	83 22 927 12 773 569 Banjo bolt 1990-1991 • 05, 19	Banjo bolt	1990-1991 05, 19	1
37	83 19 915 12 794 638 Banjo bolt 1990-1991 • 05, 19	Banjo bolt	1990-1991 05, 19	1
38	89 81 961 41 61 162 Seal -1992 • 05, 19	Seal	-1992 05, 19	2
39	89 81 979 44 43 883 Seal -1992 • 05, 19	Seal	-1992 05, 19	2
43	Filler pipeFuel system 05, 19	Filler pipeFuel system 05, 19
45	Fuel pumpFuel system 05, 19	Fuel pumpFuel system 05, 19
46	TubeFuel system 05, 19	TubeFuel system 05, 19
47	89 77 811 Spacer -1992 • 05, 19 • Cars with Lucas injection...	Spacer	-1992 05, 19 Cars with Lucas injection...	1
48	40 20 673 41 60 305 Seal 1990-1990 • 05, 19	Seal	1990-1990 05, 19	1
	93 62 781 Hose 05, 19 • L=10M	Hose	05, 19 L=10M	X
