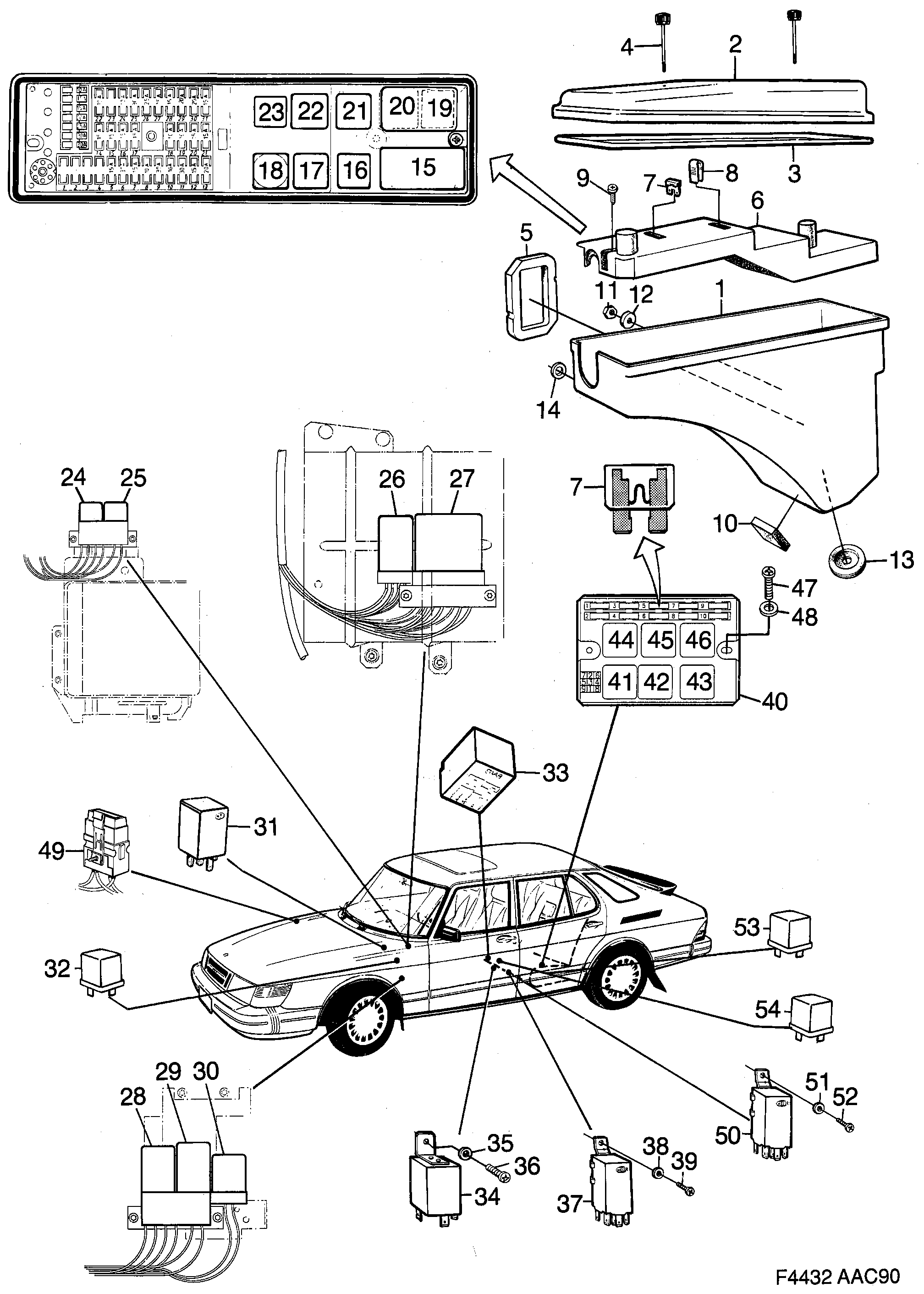

1460: Electrical, general - Wiring and fuses - Electrical distribution unit - Relays and fuses

(1990 - 1993) | For 900 (1990)

Also valid for CV 1994

100%

(N°1430)

Section 1460

(N°1490)

Pos.	Part No.	Description	Usage	Qty
1	85 98 773 Lower section -1991 • main fuse box	Lower section	-1991 main fuse box	1
2	40 69 761 Cover 1990-1990 • B201 • main fuse box	Cover	1990-1990 B201 main fuse box	1
2	40 69 787 Cover 1990-1990 • B202 • main fuse box	Cover	1990-1990 B202 main fuse box	1
2	40 69 803 Cover 1990-1990, LHD • B202 • main fuse box	Cover	1990-1990, LHD B202 main fuse box	1
3	85 53 265 Seal	Seal		1
4	85 71 663 Screw	Screw		2
5	85 52 671 Seal	Seal		1
6	95 59 790 Socket	Socket		1
7	79 74 637 Fuse 10A	Fuse	10A	X
7	79 74 645 Fuse 15A	Fuse	15A	X
7	79 74 652 Fuse 20A	Fuse	20A	X
7	79 74 660 Fuse 25A	Fuse	25A	X
7	79 74 678 Fuse 30A	Fuse	30A	X
8	85 87 636 Fuse clip	Fuse clip		1
9	79 22 909 Screw	Screw		2
10	85 51 392 Seal	Seal		1
11	79 71 658 11 900 428 Nut	Nut		3
12	85 37 623 Washer	Washer		2
13	79 62 004 Bushing	Bushing		1
15	95 66 647 44 33 801 Relay light	Relay	light	1
15	95 53 546 Relay 1990-1990 • light	Relay	1990-1990 light	1
16	95 19 133 Relay 1990-1990 • Time-delay relay. rear window	Relay	1990-1990 Time-delay relay. rear window	1
17	85 22 310 Relay front fog-light	Relay	front fog-light	1
18	95 22 061 Relay ignition switch	Relay	ignition switch	1
19	95 50 948 Relay 1990-1990 • B201I • fuel pump	Relay	1990-1990 B201I fuel pump	1
19	95 56 390 Relay 1990-1990 • daylight driving lights	Relay	1990-1990 daylight driving lights	1
20	85 22 310 Relay cooling fan	Relay	cooling fan	1
20	95 63 339 Relay 1990-1990 • Time-delay relay. cooling fan	Relay	1990-1990 Time-delay relay. cooling fan	1
21	85 36 401 Relay 1990-1990 • AC \| Cars with...	Relay	1990-1990 AC \| Cars with...	1
21	95 13 219 Relay 1990-1990 • AC \| compressor cooling...	Relay	1990-1990 AC \| compressor cooling...	1
22	85 36 401 Relay 1990-1990 • AC \| Cars with...	Relay	1990-1990 AC \| Cars with...	1
22	85 72 190 Relay 1990-1990 • AC \| cooling fan	Relay	1990-1990 AC \| cooling fan	1
23	85 22 310 Relay horn	Relay	horn	1
24	85 36 401 Relay B202, B212 • RH \| fuel pump	Relay	B202, B212 RH \| fuel pump	1
25	85 36 401 Relay Fuel system B202, B212 • RH \| LH-system	Relay Fuel system	B202, B212 RH \| LH-system	1
26	95 61 044 Relay 1990-1990 • B201TURBO • With catalytic converter. full-load...	Relay	1990-1990 B201TURBO With catalytic converter. full-load...	1
27	85 84 732 Relay -1990 • B201I • With catalytic converter. acceleration...	Relay	-1990 B201I With catalytic converter. acceleration...	1
27	40 69 282 Relay 1990-1990 • B201I • With catalytic converter. acceleration...	Relay	1990-1990 B201I With catalytic converter. acceleration...	1
28	85 73 560 Buzzer 1990-1990 • LH \| coolant	Buzzer	1990-1990 LH \| coolant	1
29	85 83 627 Flasher relay 1990-1990 • LH	Flasher relay	1990-1990 LH	1
30	85 53 463 Relay 1990-1990 • LH \| intermittent wiper	Relay	1990-1990 LH \| intermittent wiper	1
31	85 99 425 Relay 1990-1990 • B201I • With catalytic converter. retardation	Relay	1990-1990 B201I With catalytic converter. retardation	1
32	85 22 310 Relay Kits LH2.2 \| With catalytic...	Relay Kits	LH2.2 \| With catalytic...	1
33	95 12 823 30 526 059 Relay 1990-1990 • EW	Relay	1990-1990 EW	1
34	85 89 319 Relay 1990-1990 • Time-delay relay. interior lighting	Relay	1990-1990 Time-delay relay. interior lighting	1
35	79 15 556 92 152 203 Star washer 1990-1990	Star washer	1990-1990	1
36	79 22 891 Screw 1990-1990	Screw	1990-1990	1
37	95 67 017 Buzzer seat-belt warning	Buzzer	seat-belt warning	1
38	79 22 420 Screw	Screw		1
39	79 15 556 92 152 203 Star washer	Star washer		1
41	95 12 823 30 526 059 Relay 1990-1990 • EW	Relay	1990-1990 EW	1
42	95 15 099 Relay 1990-1990 • Time-delay relay. interior lighting	Relay	1990-1990 Time-delay relay. interior lighting	1
43	95 96 560 Relay soft top	Relay	soft top	1
44	95 96 560 Relay soft top	Relay	soft top	1
45	95 63 313 Buzzer 1990-1990	Buzzer	1990-1990	1
46	95 56 390 Relay 1990-1990 • anti-theft alarm	Relay	1990-1990 anti-theft alarm	1
47	79 22 891 Screw 1990-1990	Screw	1990-1990	2
48	79 68 506 Star washer 1990-1990	Star washer	1990-1990	2
49	85 64 007 Fuse holder 1990-1990 • roof operation	Fuse holder	1990-1990 roof operation	1
