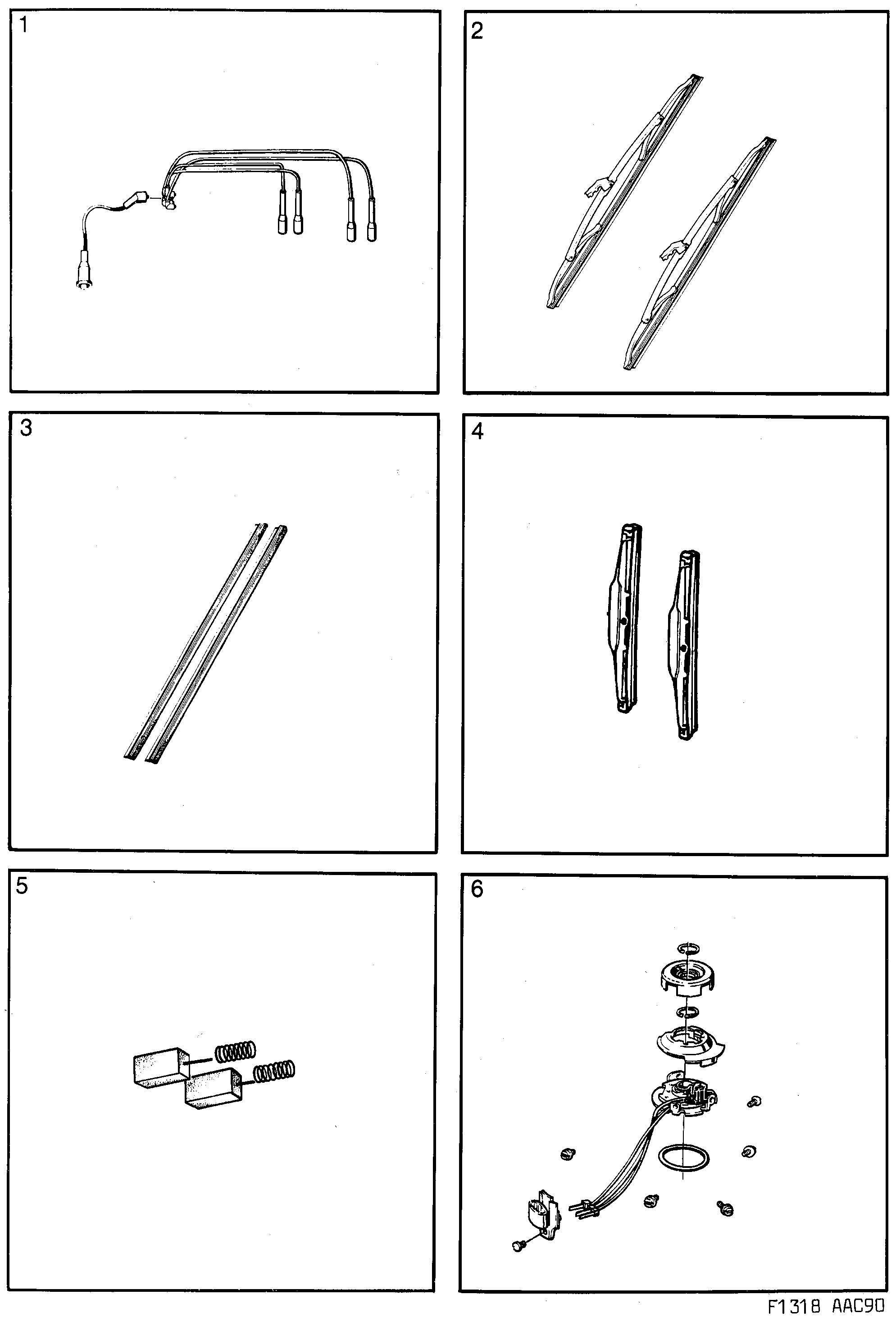

1520: Electrical, general - Kits - Electrical system

(1990 - 1993) | For 900 (1990)

Also valid for CV 1994

100%

(N°1490)

Section 1520

(N°1550)

Pos.	Part No.	Description	Usage	Qty
1	93 37 346 Ignition cable kit B201	Ignition cable kit	B201	X
	75 11 157 Ignition lead ignition coil	Ignition lead	ignition coil	1
	93 55 926 Ignition lead cylinder 1	Ignition lead	cylinder 1	1
	93 55 934 Ignition lead cylinder 2	Ignition lead	cylinder 2	1
	93 55 942 Ignition lead cylinder 3	Ignition lead	cylinder 3	1
	93 55 959 Ignition lead cylinder 4	Ignition lead	cylinder 4	1
1	88 17 314 Ignition cable kit B202, B212	Ignition cable kit	B202, B212	X
	75 10 548 Ignition lead ignition coil	Ignition lead	ignition coil	1
	75 04 483 Ignition lead cylinder 1	Ignition lead	cylinder 1	1
	75 04 491 Ignition lead cylinder 2	Ignition lead	cylinder 2	1
	75 04 509 Ignition lead cylinder 3	Ignition lead	cylinder 3	1
	75 04 517 Ignition lead cylinder 4	Ignition lead	cylinder 4	1
2	85 47 499 Wiper blade kit 1990-1990 • windscreen wipers	Wiper blade kit	1990-1990 windscreen wipers	X
	85 57 480 93 195 927 Wiper blade	Wiper blade		2
	45 21 209 93 195 927 Wiper blade	Wiper blade		2
2	85 47 747 Wiper blade kit 1990-1990 • Synthetic rubber. windscreen wipers	Wiper blade kit	1990-1990 Synthetic rubber. windscreen wipers	X
	40 60 745 Wiper blade	Wiper blade		2
	41 72 896 Wiper blade	Wiper blade		2
	42 50 155 Profile	Profile		1
3	85 46 319 Profiled rubber kit 1990-1990 • windscreen wipers	Profiled rubber kit	1990-1990 windscreen wipers	X
	85 53 844 Profile Not as separate spare...	Profile	Not as separate spare...	2
	42 50 163 Profile Not as separate spare...	Profile	Not as separate spare...	2
3	85 47 754 Profiled rubber kit 1990-1990 • Synthetic rubber. windscreen wipers	Profiled rubber kit	1990-1990 Synthetic rubber. windscreen wipers	X
	40 60 752 Profile Not as separate spare...	Profile	Not as separate spare...	2
3	85 47 655 Profile windscreen wipers	Profile	windscreen wipers	X
	95 55 962 Profile Not as separate spare...	Profile	Not as separate spare...	2
4	85 47 408 Wiper blade kit headlamp wipers	Wiper blade kit	headlamp wipers	X
	91 20 882 30 520 558 Wiper blade	Wiper blade		2
5	95 15 180 Brush set alternator	Brush set	alternator	X
6	74 86 822 Repair kit For distributor 74 85...	Repair kit	For distributor 74 85...	X
