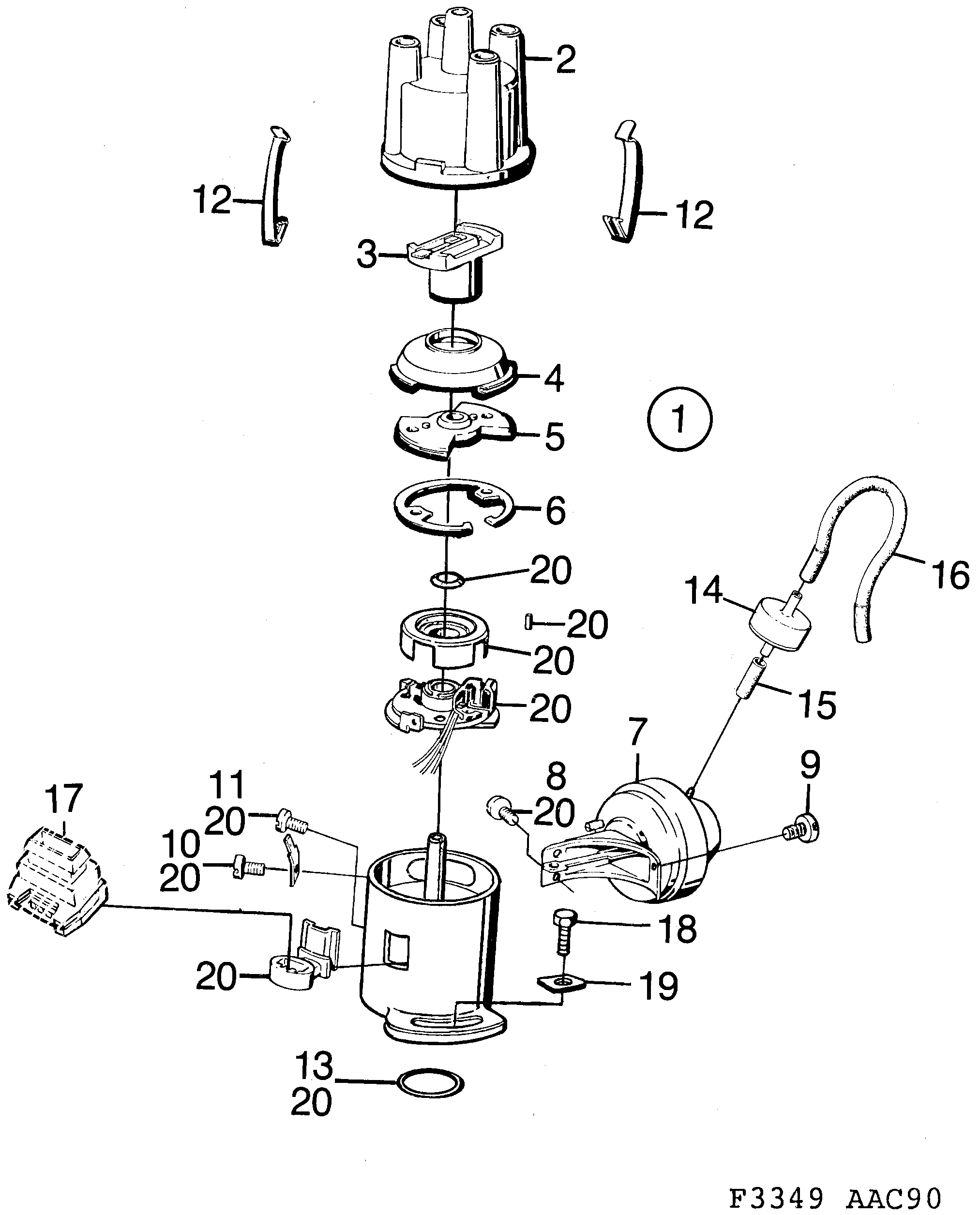

290: Electrical, general - Ignition system - Ignition distributor
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 74 85 774 Ignition distributor 01 | 1 | |
| 1 | 74 85 766 Ignition distributor I • With catalytic converter. | 1 | |
| 2 | 75 01 216 Distributor cap 01 | 1 | |
| 3 | 93 55 488 Rotor 01 | 1 | |
| 4 | 93 51 610 Dust cover 01 | 1 | |
| 5 | 75 64 800 Bearing shield 01 | 1 | |
| 6 | 93 51 636 Lock ring 01 | 1 | |
| 7 | 75 18 541 Regulator 01 • For distributor 74 85... | 1 | |
| 7 | 93 55 512 Regulator 01 • For distributor 74 85... | 1 | |
| 8 | 93 55 470 Screw 01 | 1 | |
| 9 | 93 05 053 Screw 01 | 1 | |
| 10 | 93 55 470 Screw 01 | 1 | |
| 11 | 93 55 470 Screw 01 | 2 | |
| 12 | 93 51 594 Spring 01 | 2 | |
| 13 | 93 51 750 Seal 01 | 1 | |
| 14 | 93 44 276 Valve TURBO • brown, 2 sec. | 1 | |
| 15 | 91 36 243 Vacuum hose 01 • L=30 MM | Sold... | 1 | |
| 16 | 91 36 243 Vacuum hose 01 • L=530 MM | Sold... | 1 | |
| 17 | 85 93 907 | 1 | |
| 17 | 93 21 761 Connector housing 01 • For distributor 74 85... | 1 | |
| 18 | 80 19 929 Screw 1990-1992 • 01 | 3 | |
| 19 | 93 08 990 Washer 01 | 3 | |
| 20 | 74 86 822 | X | |
91 36 243 Vacuum hose 01 • L=5000 MM | Sold... | X |
