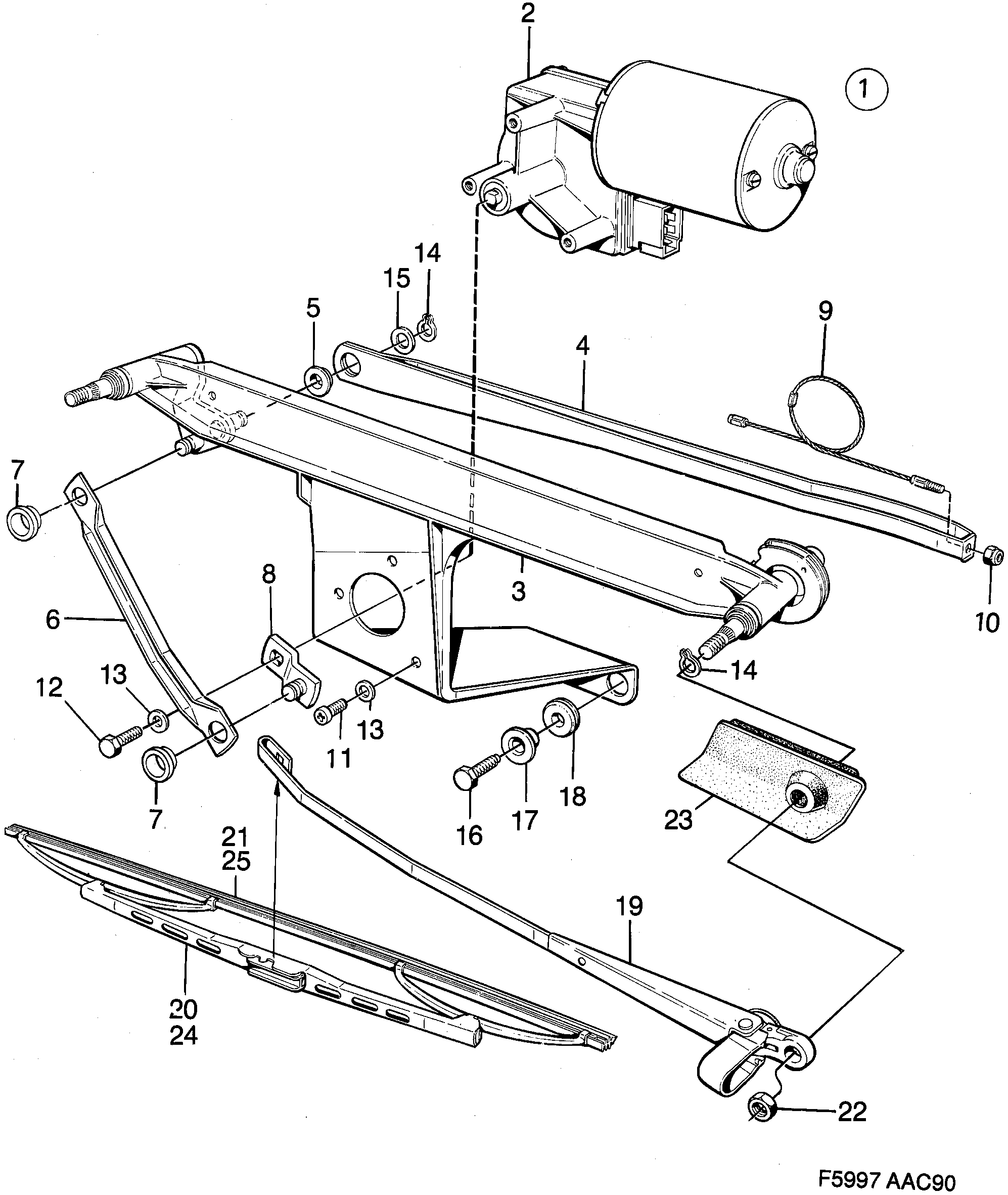

620: Electrical, general - Electric equipment, other - Windscreen wiper
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 85 44 462 Electric motor | 1 | |
| 2 | 85 44 686 Drive gear | 1 | |
| 3 | 85 44 470 Beam LHD | 1 | |
| 3 | 85 58 124 Beam RHD | 1 | |
| 4 | 85 44 504 Carrier arm LHD | 1 | |
| 4 | 85 58 132 Carrier arm RHD | 1 | |
| 5 | 85 04 029 Bushing | 1 | |
| 6 | 85 44 512 Connecting rod LHD | 1 | |
| 6 | 85 58 140 Connecting rod RHD | 1 | |
| 7 | 85 59 320 Bushing | 2 | |
| 8 | 85 44 520 Crank arm LHD | 1 | |
| 8 | 85 61 466 Crank arm RHD | 1 | |
| 9 | 85 44 538 Cable | 1 | |
| 10 | 80 74 270 Lock nut | 1 | |
| 11 | 80 59 396 Screw | 3 | |
| 12 | 80 19 895 Screw 1990-1992 | 1 | |
| 13 | 80 29 951 Washer 1990-1992 | 4 | |
| 14 | 79 63 135 E-circlip | 3 | |
| 15 | 85 44 702 Washer | 1 | |
| 16 | 85 58 074 Screw | 4 | |
| 17 | 85 44 413 Sleeve | 4 | |
| 18 | 85 44 421 Bushing | 2 | |
| 19 | 85 53 810 Wiper arm LHD • LH | 1 | |
| 19 | 85 53 828 Wiper arm LHD • RH | 1 | |
| 19 | 85 58 090 Wiper arm RHD • LH | 1 | |
| 19 | 85 58 108 Wiper arm RHD • RH | 1 | |
| 19 | 95 53 306 Wiper arm LHD • LH | 1 | |
| 19 | 95 53 314 Wiper arm LHD • RH | 1 | |
| 19 | 95 59 352 Wiper arm RHD • LH | 1 | |
| 19 | 95 59 345 Wiper arm RHD • RH | 1 | |
| 20 | 45 21 209 93 195 927 Wiper blade (8557480,4172888) | 2 | |
| 20 | 40 60 745 Wiper blade 1990-1990 • Synthetic rubber. | 2 | |
| 20 | 95 55 202 93 195 930 Wiper blade | 2 | |
| 21 | 85 53 844 Profile 1990-1990 • Not as separate spare... | 1 | |
| 21 | 40 60 752 Profile 1990-1990 • Not as separate spare... | 1 | |
| 21 | 95 55 962 Profile Not as separate spare... | 1 | |
| 22 | 81 51 235 Nut | 2 | |
| 23 | 85 44 439 Cover LH | 1 | |
| 23 | 85 44 736 Cover RH | 1 | |
| 24 | 85 47 499 | X | |
| 24 | 85 47 747 | X | |
| 25 | 85 46 319 | X | |
| 25 | 85 47 754 | X | |
| 25 | 85 47 655 Profile | X |
