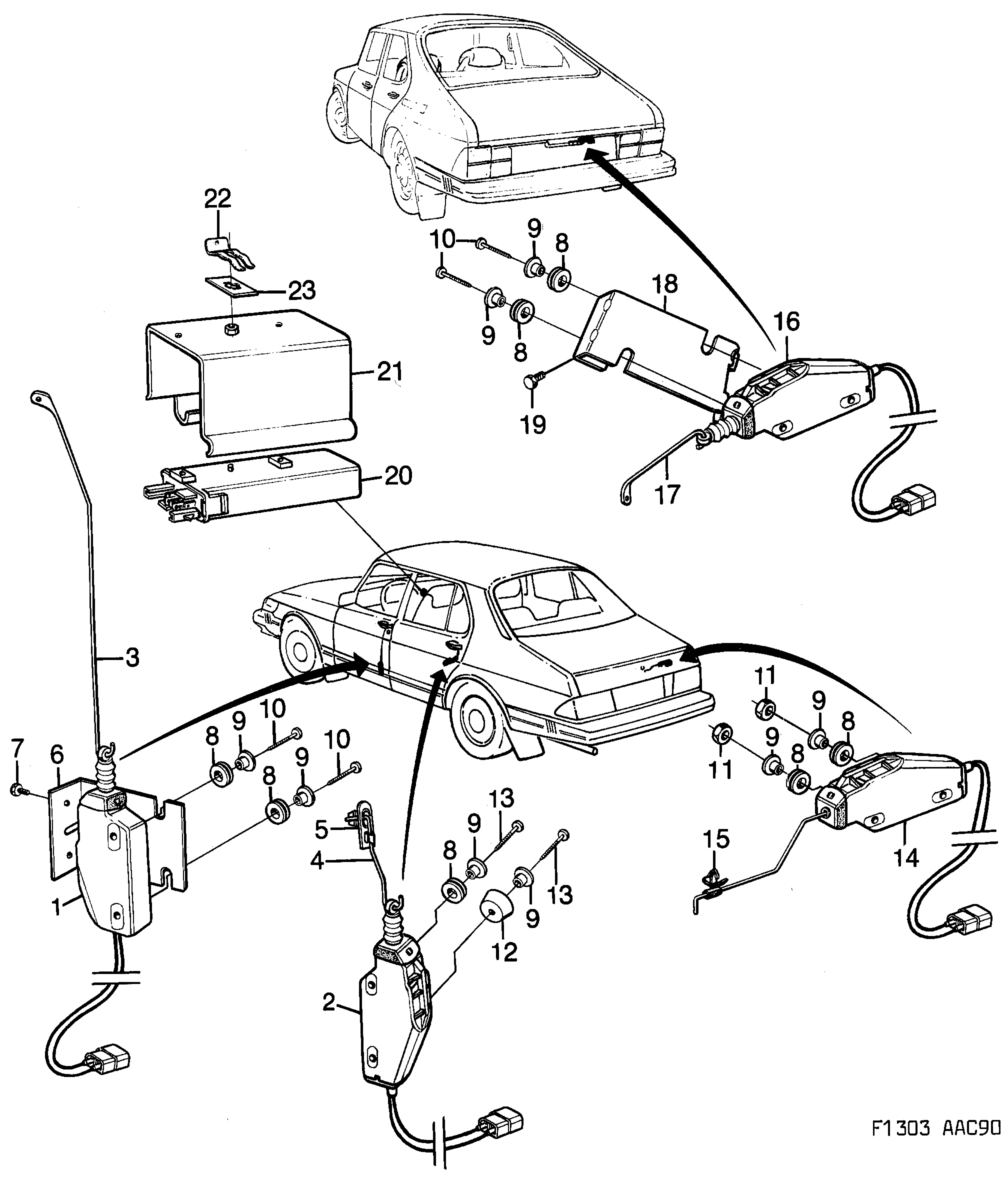

710: Electrical, general - Electric equipment, other - Central lock
(1990 - 1993) | For 900 (1990)
Also valid for CV 1994
100%
| Pos. | Part No. | Qty | |
|---|---|---|---|
| 1 | 85 91 216 Control module 1990-1991 • front door | 1 | |
| 2 | 85 91 224 Electric motor Passenger side. front door | 1 | |
| 3 | 85 98 245 Pull rod LH | front door | 1 | |
| 3 | 85 98 252 Pull rod RH | front door | 1 | |
| 4 | 85 78 221 Pull rod rear door | 2 | |
| 5 | 84 61 675 Clip | 2 | |
| 6 | 85 98 211 Bracket LH | 1 | |
| 6 | 95 51 151 Bracket RH | 1 | |
| 6 | 85 98 229 Bracket LH | 1 | |
| 6 | 85 98 237 Bracket RH | 1 | |
| 7 | 80 59 537 Screw | 4 | |
| 8 | 85 73 966 Bushing | 8 | |
| 9 | 85 73 958 Sleeve | 8 | |
| 10 | 79 73 597 Screw | 6 | |
| 11 | 80 74 098 Nut | 2 | |
| 12 | 70 85 541 Sleeve | 2 | |
| 13 | 79 73 597 Screw | 4 | |
| 14 | 85 91 232 Electric motor | 1 | |
| 15 | 85 77 710 Clip | 1 | |
| 16 | 85 91 224 Electric motor | 1 | |
| 17 | 85 74 501 Pull rod | 1 | |
| 18 | 85 75 391 Bracket | 1 | |
| 19 | 79 72 441 Screw | 2 | |
| 20 | 95 29 975 Electronic unit | 1 | |
| 21 | 95 64 170 Attaching brace | 1 | |
| 22 | 85 65 855 Clip | 1 | |
| 23 | 95 64 345 Spacer washer | 1 | |
CoverDoors, boot lid | |||
Central lockKits C, I • Body Style: 3CK, 5CK, 4SN, 2SN | X |
